Cyclone 10 GX dev kit, which signal can I use to reset a NIOS?

I've had a look at the Cyclone 10 GX dev kit user manual and schematics but it's not clear if the board provides a signal to the C10 that will drive the NIOS platform reset input correctly. Any suggestions?

I suppose I could code up a pulse generator that runs after configuration but I was hoping for something official.

Edit - found pin AC12 has a likely sounding assignment of fpga_resetn which seems to come from a MAX10. Any clues as to what the MAX10 does with it?

Fpga Devkit

12 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    Hi,
    you find a brief description in user manual. Check S13 function.
  • Oliver_I_Sedlacek's avatar
    Oliver_I_Sedlacek
    Icon for Contributor rankContributor
    2 years ago

    I found that, but that's a manual reset. How to I give my NIOS a post configuration automatic 'power on' style reset?

    • wwanalim_intel's avatar
      wwanalim_intel
      Icon for Contributor rankContributor
      2 years ago

      I am sorry for the picture above. Below I reattached the picture.

      You can enable Include cpu_resetrequest, and use a PIO IP as input into cpu_resetrequest.

       

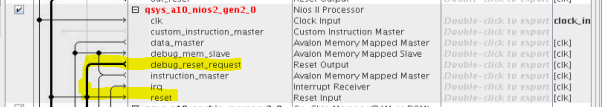

      Or, with the connection below made, use the debug module to reset the core only.

      If the same signal is connected to other IP's reset, you can extend to full system reset.

      • Oliver_I_Sedlacek's avatar
        Oliver_I_Sedlacek
        Icon for Contributor rankContributor
        2 years ago

        This seems to be a way to add more reset (sink) inputs. I'm looking for a reset source to drive the reset input after FPGA configuration.

  • wwanalim_intel's avatar
    wwanalim_intel
    Icon for Contributor rankContributor
    2 years ago

    I would suggest for you to connect a PIO IP to another push-button and feed it into the cpu_resetrequest.


  • Oliver_I_Sedlacek's avatar
    Oliver_I_Sedlacek
    Icon for Contributor rankContributor
    2 years ago

    That's not what I'm after. A manual reset isn't an alternative to a configuration completion reset.

    BTW it's taken me an hour to get to the point of replying to this thread because the forum software is so flaky it wouldn't put up this box for me to reply. I've tried several browsers and several login in cycles. For a billion dollar corporation this is very, very poor.

  • wwanalim_intel's avatar
    wwanalim_intel
    Icon for Contributor rankContributor
    2 years ago

    It is unfortunate from our side that our suggestion is different from what you prefer. Can you elaborate more about the manual reset? We quite confused on that part.


  • wwanalim_intel's avatar
    wwanalim_intel
    Icon for Contributor rankContributor
    2 years ago

    I now transition this thread to community support. If you have a new question, Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
