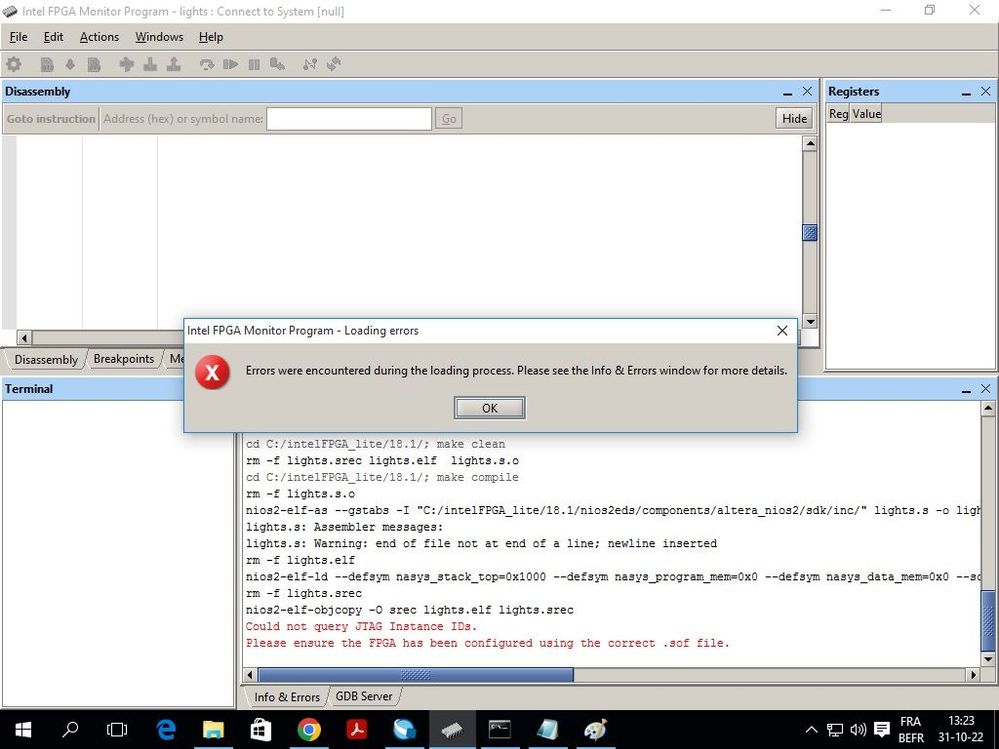

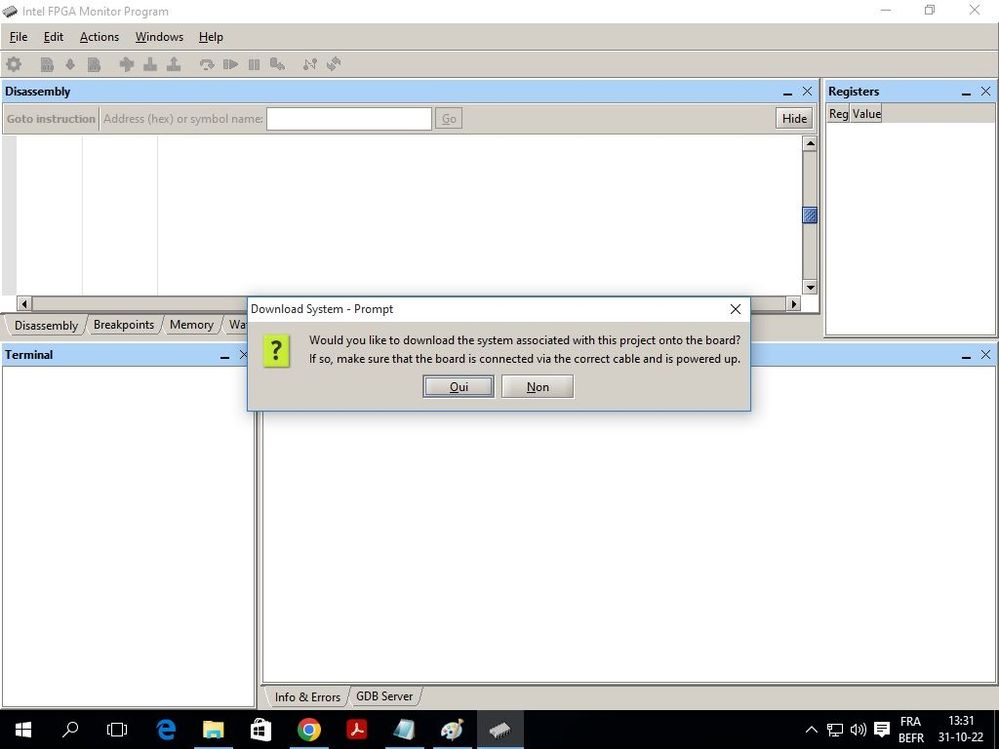

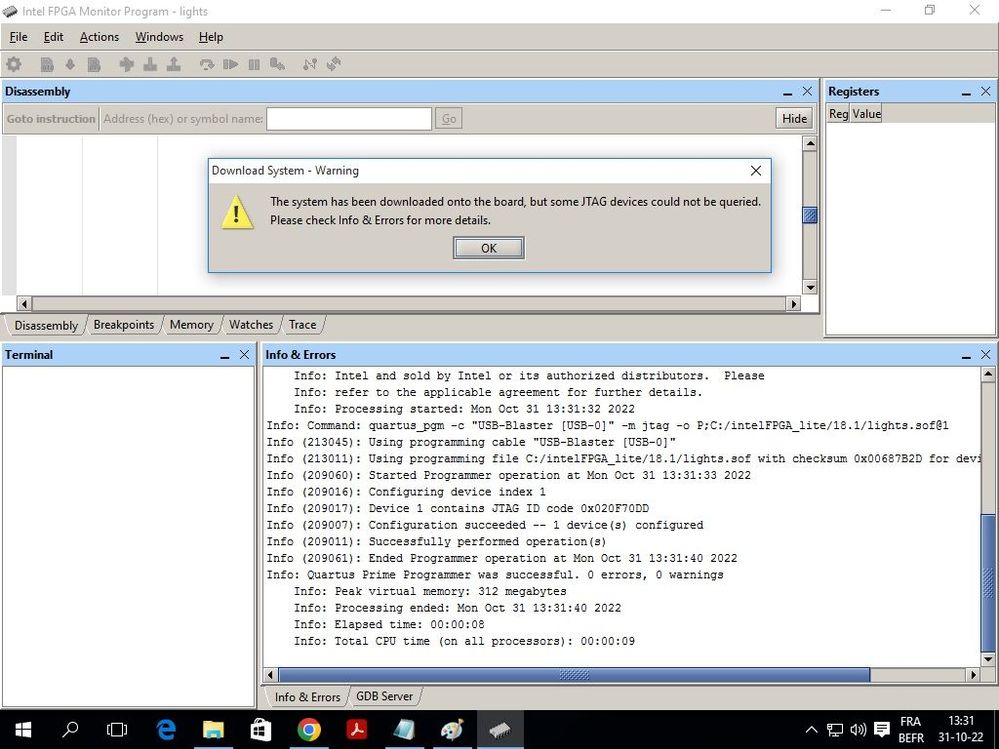

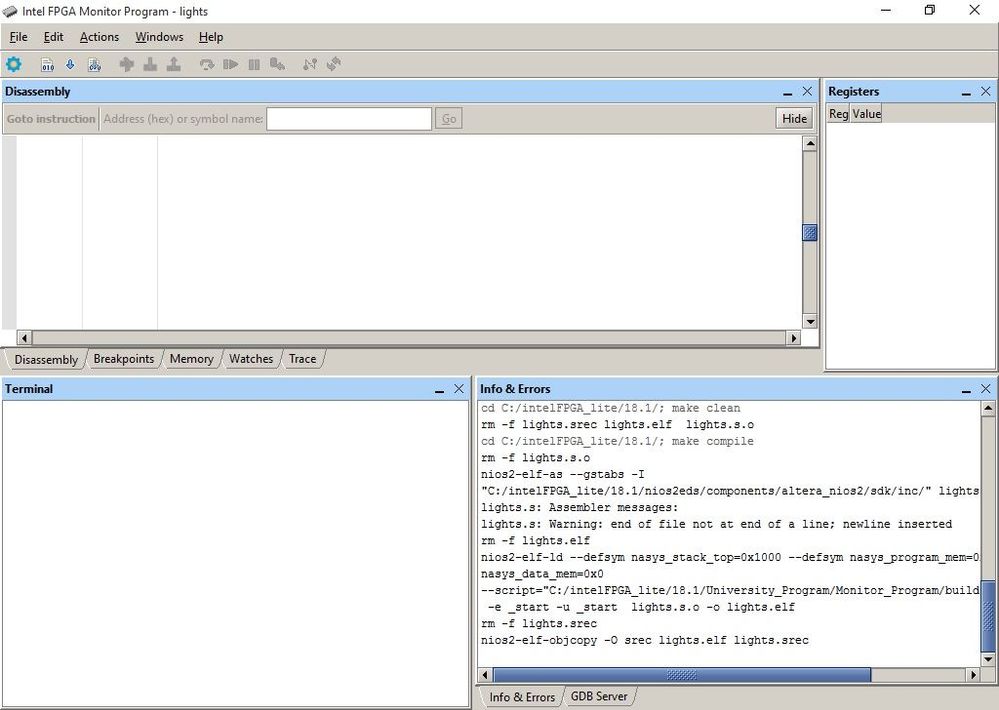

PROBLEM LOADING with MONITOR PROGRAM 18.1 TO DE2-115

Hi,

Check this link https://habr.com/ru/post/464795/

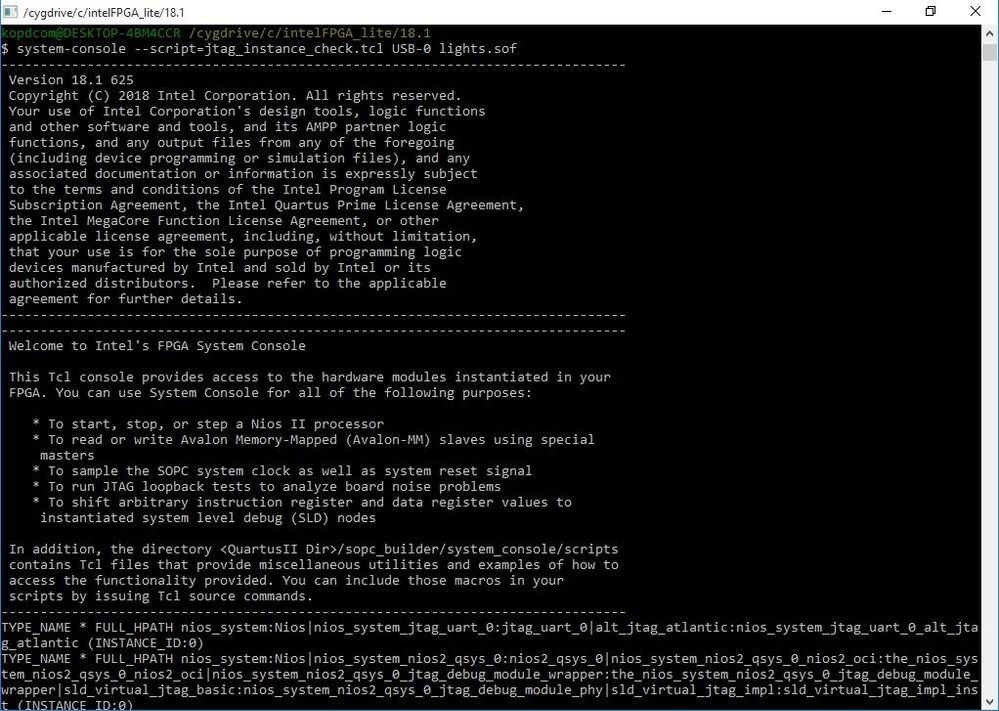

Tried to open the NIOS II console:

There I went to the directory where the sof file is located and entered the command line:

system-console --script=jtag_instance_check.tcl USB-0 <file_name>.sof

For the command line above, you have to copy the ..\University_Program\Monitor_Program\bin\jtag_instance_check.tcl to the same place where sof is, so as not to suffer with the path. As a result, I got a pretty decent response.

Thanks,

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Hi @kopdcom ,

Any further concern or update?

Does the problem being resolved?

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Hi @kopdcom ,

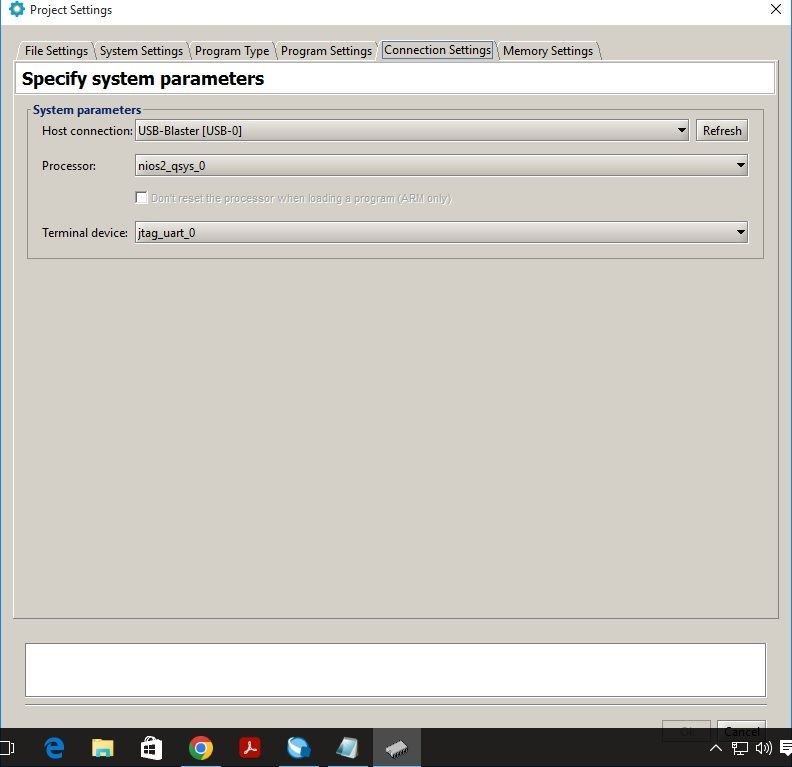

Are you using USB-1 for Host connection image below?

May be have to use this system-console --script=jtag_instance_check.tcl USB-1 <file_name>.sof

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Hi @kopdcom ,

Or try to replace the code section below in tcl script jtag_instance_check.tcl:

# PRINT OUT INSTANCE ID INFO FOR EVERYTHING:

set i 0

foreach path [lsort -command compare_node_number [get_service_paths bytestream]] {

# If this path corresponds to a JTAG UART, incr i

if {[string match *$cable_name* $path ] && [string match *jtag_uart* [marker_get_type $path] ]} {

puts "[marker_get_info $path] (INSTANCE_ID:$i)"

incr i

}

}

set i 0

foreach path [lsort -command compare_node_number [get_service_paths processor]] {

# If this path corresponds to a NiosII, incr i

if {[string match *$cable_name* $path ] && [string match *nios2* [marker_get_type $path] ]} {

puts "[marker_get_info $path] (INSTANCE_ID:$i)"

incr i

}

}

With the code section below:

# PRINT OUT INSTANCE ID INFO FOR EVERYTHING:

set i 0

foreach path [lsort -command compare_node_number [get_service_paths bytestream]] {

# If this path corresponds to a JTAG UART, incr i

if {[string match *$cable_name* $path ] && [string match *jtag_uart* [marker_get_type $path] ]} {

set info [marker_get_info $path]

if {[string first "|" $info] == -1} {

set info [string map {"FULL_HPATH " "FULL_HPATH a:b|"} $info]

}

puts "$info (INSTANCE_ID:$i)"

incr i

}

}

set i 0

foreach path [lsort -command compare_node_number [get_service_paths processor]] {

# If this path corresponds to a NiosII, incr i

if {[string match *$cable_name* $path ] && [string match *nios2* [marker_get_type $path] ]} {

set info [marker_get_info $path]

if {[string first "|" $info] == -1} {

set info [string map {"FULL_HPATH " "FULL_HPATH a:b|"} $info]

}

puts "$info (INSTANCE_ID:$i)"

incr i

}

}

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Hi @kopdcom ,

Sorry for misdirection. For Monitor Program, supposedly have to follow this document link below (located in ..\University_Program\Monitor_Program\tutorial\Intel_FPGA_Monitor_Program_NiosII.pdf

https://ftp.intel.com/Public/Pub/fpgaup/pub/Teaching_Materials/current/tutorials/Intel_FPGA_Monitor_Program_NiosII.pdf

and have to use DE1-SoC device.

Steps summary:

• Creating a Project
• Specify a system: DE1-SoC Computer. It is represented by .sopcinfo and .sof files which are automatically included when this computer is selected. The DE1-SoC preloader is also automatically selected.
• Specify a program type: Assembly Program. Click on the selection Include a sample program with the project. Select the program named Simple Program.
• Specify program details: the source code file(s) associated with this program is listed in the Source files box.

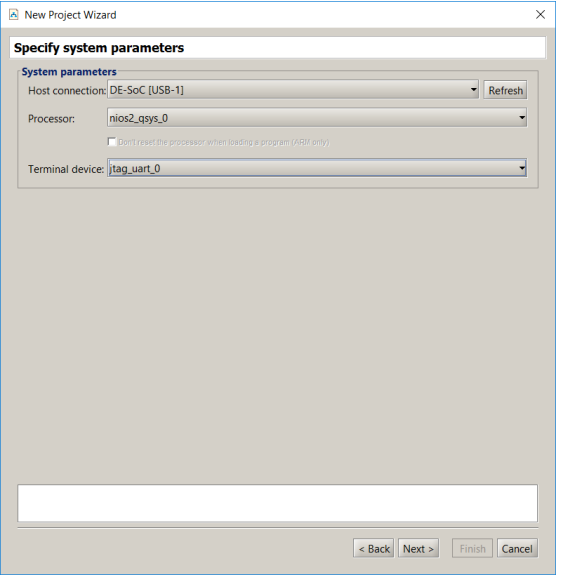

• Specify system parameters: DE-SoC [USB-1]
• Specify program memory settings

Best Regards,

Sheng
