NAND flash issue with dual-core ARM® Cortex®-A9

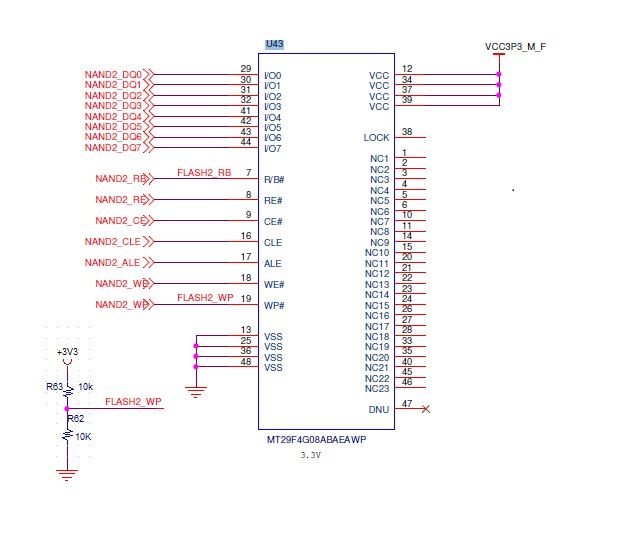

The 5CSEBA2U19I7SN SoC HPS NAND pins are connected to a 4Gb NAND flash memory chip (S34ML04G200TFI003). In this design, the active-low Write Protect pin (#WP) is connected to both a 10kΩ pull-up resistor (to 3.3V) and a 10kΩ pull-down resistor (to Ground). During booting or flashing, a few NAND flash chips do not work properly, and a few nand flashes have been permanently damaged. Is connecting the #WP pin to both a pull-up and a pull-down resistor a correct hardware approach for cyclone SOC HPS NAND configuration?

Best Regards,

Keshav







Hps Boot

2 Replies

  • kbrunham_altera's avatar
    kbrunham_altera
    Icon for New Contributor rankNew Contributor
    8 hours ago

    Hi Keshav,

    This structure will have WP be ~1.65V since it will be between your 2 resistors. Did you use an existing board as the reference for this NAND interface?

  • ai_responder's avatar
    ai_responder
    Icon for Community Manager rankCommunity Manager
    10 hours ago

    Thank you for your inquiry. To ensure an accurate response, your request has been routed to an Altera application engineer for further review and assistance.


    Note: To continue using AI Responder, please start your next inquiry with ai_responder

    Disclaimer (Beta): The AI Responder is currently provided as a beta feature. AI-generated responses may contain errors or omissions. Please verify technical guidance with official Altera documentation before implementation.
