How to use LW HPS to FPGA Bridge in Arria10 HPS?

Question

Hello,I am trying to implement some features using Bridge interface.(Lightweight HPS-to-FPGA)The "bridge enable" command in u-boot didn't work properly.So, I modified the device tree and I can see that the command was operating properly.And then I wrote application to control led_pio to verify whether bridge is working properly. But, it's not working properly. Can you give me a guide about using this bridge(LightWeight HPS to FPGA) feature?(Chip/SoC: Arria10,  linux kernel version: 6.1.68) I attached device tree and application that I modified or wrote.(dt_bridge_feature_added.txt, user_space_application.c) Regards,Jung

jeet14 · Answer

Hi,Please refer the below link for setting up the GHRD &amp; GSRD for A10 SoC development kit. This link is having example for the gpio/pio and the Lightweight HPS-to-FPGA.https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRDAlso, refer the below link for the linux user space application to blink the LEDs.https://github.com/altera-opensource/linux-refdesigns/blob/master/blink/blink.cLet me know if have any questions on this?RegardsTiwari

sunyeong · Answer

Thank you for comment.I would like to use lightweight HPS-FPGA features in HPS.I have already checked the document (url) you mentioned. But I can't find an example.I'm having trouble finding examples, so can you tell me where I can find examples related to usage of LightWeight-HPS-to-FPGA?As I understand, the lightweight HPS-FPGA bridge is connected to led_pio.So, I tried to turn on/off led_pio by controlling the LightWeight-HPS-to-FPGA bridge in HPS.So I don't need the blink.c example.I would appreciate it if you could tell me where I can find examples related to LightWeight-HPS-to-FPGA.Regards,Jung

sunyeong · Answer

I understand that you commented.The blink.c example accesses peripheral address(0xff200010) using gpio driver(via sysfs interface).I had misunderstood this as a gpio function and not a bridge function.But, It seems that below content in your document(url, GSRD) is wrong.The led_pio address of the attached device tree(socfpga_arria10_ghrd.dtsi) in your document is 0x100000010.But, If you try following this document, the address is 0xff200010.HOWTOCreateADevicetreeForArria10SoC Which one is correct?Regards,Jung.@Jeet14 wrote:Hi,Please refer the below link for setting up the GHRD &amp; GSRD for A10 SoC development kit. This link is having example for the gpio/pio and the Lightweight HPS-to-FPGA.https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRDAlso, refer the below link for the linux user space application to blink the LEDs.https://github.com/altera-opensource/linux-refdesigns/blob/master/blink/blink.cLet me know if have any questions on this?RegardsTiwari

jeet14 · Answer

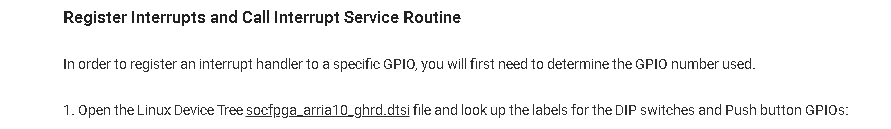

Hi,GPIO number you can get it with the boot log and the device tree gpio@&lt;address&gt;.E.g. In the boot log you will see the below-gpiochip_find_base: found new base at 480gpio gpiochip0: (/soc/gpio@0xf9000270): added GPIO chardev (254:0)gpio gpiochip0: registered GPIOs 480 to 511 on /soc/gpio@0xf9000270In the device tree you will see the gpio@&lt;address&gt;*.dts file is having the node--&gt; gpio@0xf9000270 with 32 bit.RegardsTiwari

jeet14 · Answer

Hi,Let me know if you have any other query on this?If no, then I will close this case by EOD but it will be open for forum community/users to reply.RegardsTiwari
