Why the compilation report didn't display the resources usage when I made the verilog file as top file?

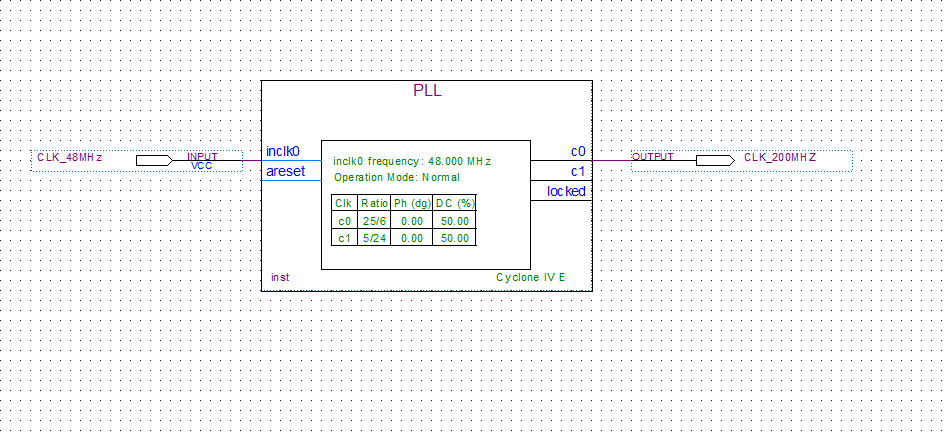

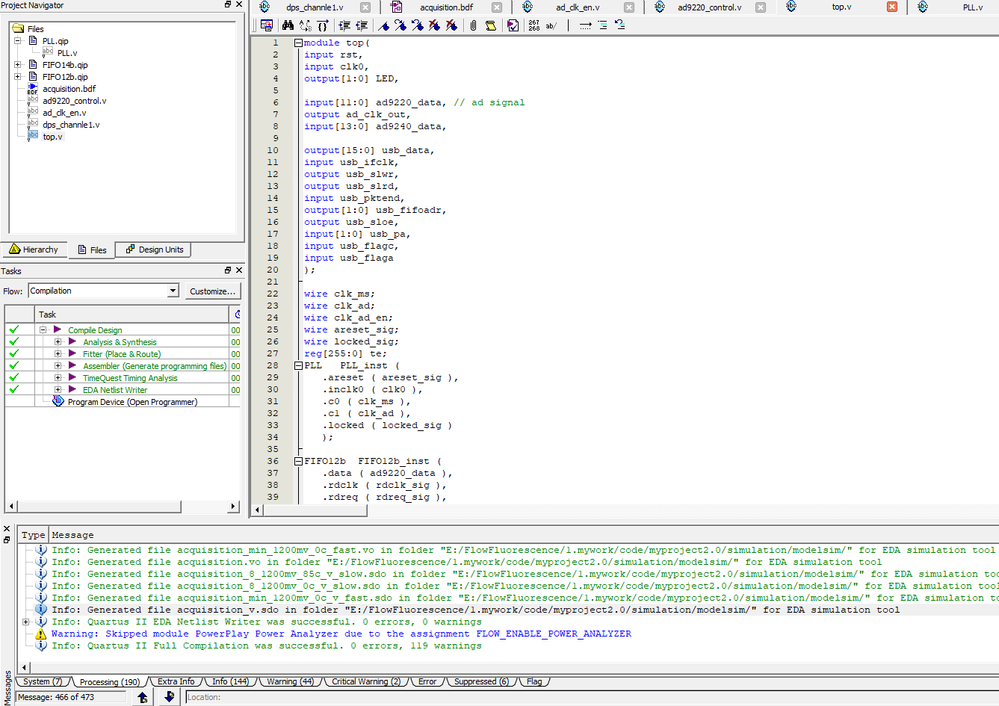

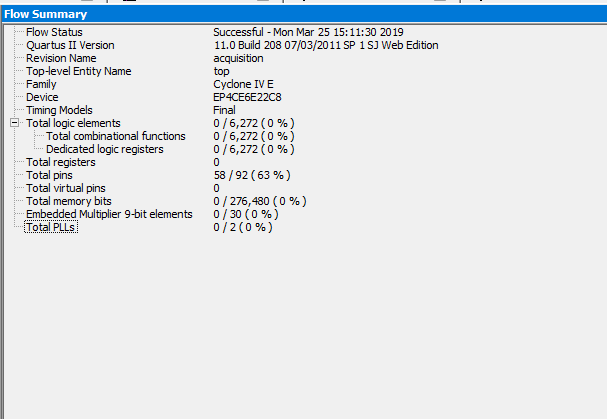

I used a PLL to produce clock, but it didn't display the resources usage when I made the verilog file as top file. But when i set the bdf file as top file it worked.

Is there any mistakes in my top verilog file though no error accour in the quartus? Waiting for your answers. Thanks a lot.

module top(
input rst,
input clk0,
output[1:0] LED,

input[11:0] ad9220_data, // ad signal
output ad_clk_out,
input[13:0] ad9240_data,

output[15:0] usb_data,
input usb_ifclk,
output usb_slwr,
output usb_slrd,
input usb_pktend,
output[1:0] usb_fifoadr,
output usb_sloe,
input[1:0] usb_pa,
input usb_flagc,
input usb_flaga
);

wire clk_ms;
wire clk_ad;
wire clk_ad_en;
wire areset_sig;
wire locked_sig;
reg[255:0] te;
PLL	PLL_inst (
	.areset ( areset_sig ),
	.inclk0 ( clk0 ),
	.c0 ( clk_ms ),
	.c1 ( clk_ad ),
	.locked ( locked_sig )
	);

ad_clk_con ad_clk_enuser(clk_ad, clk_ad_en, ad_clk_out);
endmodule

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    7 years ago

    Hi 11000,

    Synthesizer removes all logic whose outputs are unused.

    You have have to route out some outputs otherwise the synthesizer will remove all of the logic.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Regards

    Anand

4 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    Hi 11000,

    Synthesizer removes all logic whose outputs are unused.

    You have have to route out some outputs otherwise the synthesizer will remove all of the logic.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Regards

    Anand

    • 11000's avatar
      11000
      Icon for New Contributor rankNew Contributor
      7 years ago

      Hi​ AnandRS，

      Thanks to your advice, ​I checked every module 's input and output pins the whole day. At last I made it out by ensuring every module has valid ports. It was really difficult for me to design the top file in verilog while my project had about ten modules. But I also think the bdf file would be complex and unclear in this situation.

      Is there any better way for me to design the top file?

      Thank you a lot.

      • AnandRaj_S_Intel's avatar
        AnandRaj_S_Intel
        Icon for Regular Contributor rankRegular Contributor
        7 years ago

        Hi 11000,

        To view the resource you can add dummy ports in your module and connect it's output ports.

        If we do so we can see 1-PLL being used.

        Example:

        `timescale 1 ps / 1 ps
module top (
		input  wire clk,
		input  wire  reset,

//dummy ports
		output wire  locked_sig ,
output wire  outclk_0
	);
wire areset_sig ,clk_ms ,clk_ad;

PLL	PLL_inst (
	.areset ( areset_sig ),
	.inclk0 ( clk),
	.c0 ( clk_ms ),
	.c1 ( clk_ad ),
	.locked ( locked_sig )
	);

endmodule

        Regards

        Anand

  • Abe's avatar
    Abe
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago

    Connect the areset input pin to the PLL from the system rst and you can also use an internal wire for the locked pin

    wire pll_locked;

PLL	PLL_inst (
	.areset ( rst ),
	.inclk0 ( clk0 ),
	.c0 ( clk_ms ),
	.c1 ( clk_ad ),
	.locked ( pll_locked )
	);
