VHDL State Machine: Bad State Transitions

Question

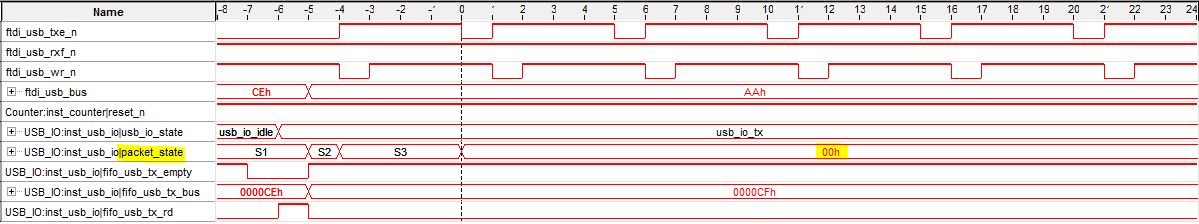

Hi, I'm really hoping someone can help me as I'm at my wits end. I am running into a scenario where my state machine is transitioning into an invalid state. As far as I can tell, all of my paths between states are covered, but I must be doing something wrong. The states are setup to use one-hot encoding, btw.   Here's the some VHDL that reproduces the problem. It basically reads data from a FIFO and tries to write it to USB. After running for some period of time (which varies), the "packet_state" value becomes 0x00 (an invalid state value).   I've also attached a SignalTap screenshot showing the transition. I just can't understand why it happens.   Any ideas or suggestions?   Thanks!
library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity USB_IO is
 port
 (
  -- General --
  main_clk:    in  std_logic;        -- Primary clock: 50 Mhz

  -- Reset --
  reset_n:     in  std_logic := '0';

  -- USB TX FIFO --
  fifo_usb_tx_bus:  in  std_logic_vector(23 downto 0);
  fifo_usb_tx_empty: in  std_logic := '0';
  fifo_usb_tx_rd:  out std_logic := '0';
  fifo_usb_tx_clr:  out std_logic := '0';

  -- FTDI FT2232 USB I/O --
  ftdi_usb_txe_n:  in  std_logic := '0';
  ftdi_usb_rxf_n:  in  std_logic := '1';
  ftdi_usb_bus:   inout std_logic_vector(7 downto 0);
  ftdi_usb_wr_n:   buffer std_logic := '1';
  ftdi_usb_rd_n:   buffer std_logic := '1'
 );
end USB_IO;

architecture rtl of USB_IO is

-- Create separate in and out signals for  the bidir port 'ftdi_usb_bus'.
signal ftdi_usb_bus_in  : std_logic_vector(7 downto 0) := "00000000";
signal ftdi_usb_bus_out : std_logic_vector(7 downto 0) := "00000000";

attribute syn_encoding : string;

type usb_io_state_type is (usb_io_idle, usb_io_tx, usb_io_rx);
attribute syn_encoding of usb_io_state_type : type is "onehot";

signal usb_io_state : usb_io_state_type := usb_io_idle;

type packet_state_type is (
 S1,
 S2,
 S3,
 S4,
 S5,
 S6,
 S7,
 S8
);

attribute syn_encoding of packet_state_type : type is "onehot";
signal packet_state : packet_state_type := S1;

begin

-- Infer tri-state buffers for our bidirectional pins.
ftdi_usb_bus &lt;= ftdi_usb_bus_out when ftdi_usb_rd_n = '1' else "ZZZZZZZZ";
ftdi_usb_bus_in &lt;= ftdi_usb_bus;

 process(main_clk)
 begin

  if(rising_edge(main_clk)) then

   -- Default our outputs.
   fifo_usb_tx_clr &lt;= '0';
   fifo_usb_tx_rd &lt;= '0';
   ftdi_usb_wr_n &lt;= '1';
   ftdi_usb_rd_n &lt;= '1';

   if(reset_n = '0') then
    usb_io_state &lt;= usb_io_idle;
    packet_state &lt;= S1;
    fifo_usb_tx_clr &lt;= '1';
   else

    case usb_io_state is
     when usb_io_idle =&gt;

      packet_state &lt;= S1;

      -- Look for incoming data first; then outgoing.
      if(ftdi_usb_rxf_n = '0') then
       usb_io_state &lt;= usb_io_rx;
      elsif(fifo_usb_tx_empty = '0') then
       fifo_usb_tx_rd &lt;= '1';
       usb_io_state &lt;= usb_io_tx;
      else
       usb_io_state &lt;= usb_io_idle;
      end if;

     when usb_io_tx =&gt;

      if(ftdi_usb_txe_n = '0') then

       case packet_state is
        when S1 =&gt;
         ftdi_usb_bus_out &lt;= X"AA";
         packet_state &lt;= S2;
        when S2 =&gt;
         ftdi_usb_bus_out &lt;= X"AA";
         ftdi_usb_wr_n &lt;= '0';
         packet_state &lt;= S3;
        when S3 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(23 downto 16);
         packet_state &lt;= S4;
        when S4 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(23 downto 16);
         ftdi_usb_wr_n &lt;= '0';
         packet_state &lt;= S5;
        when S5 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(15 downto 8);
         packet_state &lt;= S6;
        when S6 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(15 downto 8);
         ftdi_usb_wr_n &lt;= '0';
         packet_state &lt;= S7;
        when S7 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(7 downto 0);
         packet_state &lt;= S8;
        when S8 =&gt;
         ftdi_usb_bus_out &lt;= fifo_usb_tx_bus(7 downto 0);
         ftdi_usb_wr_n &lt;= '0';
         packet_state &lt;= S1;
         usb_io_state &lt;= usb_io_idle;
        when others =&gt;
         ftdi_usb_wr_n &lt;= '1';
         packet_state &lt;= S1;
         usb_io_state &lt;= usb_io_idle;
       end case;

      end if;

     when usb_io_rx =&gt;

      -- Not yet implemented --
      usb_io_state &lt;= usb_io_idle;
      packet_state &lt;= S1;
    end case;

   end if; -- reset

  end if; -- rising_edge

 end process USB_IO_Handler;

end architecture rtl;

altera_forum · Answer

Sorry to reply to my own post, but I just saw a similar thread which suggests that the bad state could be related to timing (perhaps with the ftdi_usb_txe_n input?).

I'm trying to use the FTDI FT2232 USB chip in asynchronous mode. That may be the source of all of my problems....

altera_forum · Answer

If the incoming signals are asynchrnous, I suggest you synchronise them to the "main_clk" before trying to use them. Without doing that, you will be violating setup and hold times, and any signals that read them may become meta-stable.

altera_forum · Answer

Metastability isn't required to get illegal states. Routing delay skew is sufficient, causing 99.9% (or so) of unexpected logic behaviour with timing violations. Synchronizing is the solution anyway.

altera_forum · Answer

change your clk to 24Mhz and use this (LMK if it helps):

-- ft2232d_fifo generation

library ieee;

use ieee.std_logic_1164.all;

use ieee.numeric_std.all;

use ieee.std_logic_unsigned.all;

entity ft2232d_fifo is

port (

clkin : in std_logic; -- 24 MHZ clock from oscillator

resetn : in std_logic; -- global reset to reset everything

usbtxen : in std_logic; -- TX FIFO empty (low means data can go into FIFO)

usbrxfn : in std_logic; -- RX FIFO full (low means data can be read from FIFO)

readfifodata : in std_logic; -- Read Enable

writefifo : in std_logic; -- Write Enable

usbrdn : out std_logic; -- strobe low-then-high to get data from FIFO

usbwr : out std_logic; -- strobe high-then-low to write data into FIFO

usbd : inout std_logic_vector(7 downto 0); -- bi-directional data bus to FIFO chip

data_read : out std_logic_vector(7 downto 0); -- bi-directional data bus to FIFO chip

data_write : in std_logic_vector(7 downto 0) -- bi-directional data bus to FIFO chip

);

end ft2232d_fifo;

-------------------------------------------------------------

architecture rtl of ft2232d_fifo is

type USB_STATE_TYPE is (USBIDLE,USBGETBYTE,USBSAVEBYTE,

USBRDDN,USBPUTBYTE,USBWOUT,

USBWHLD);

--signal USBState : std_logic_vector(4 downto 0);

--signal USBIDLE : std_logic_vector(4 downto 0) := "00000";

--signal USBGETBYTE : std_logic_vector(4 downto 0) := "00001";

--signal USBSAVEBYTE : std_logic_vector(4 downto 0) := "10001";

--signal USBRDDN : std_logic_vector(4 downto 0) := "01000";

--signal USBPUTBYTE : std_logic_vector(4 downto 0) := "00010";

--signal USBWOUT : std_logic_vector(4 downto 0) := "00110";

--signal USBWHLD : std_logic_vector(4 downto 0) := "01100";

signal USBState : USB_STATE_TYPE;

signal iswrite : std_logic;

signal usbdone : std_logic;

begin

--usbrdn <= NOT USBState(0);

--usbwr <= USBState(1);

--iswrite <= USBState(2);

--usbdone <= USBState(3);

usb_rx_tx: process (resetn,clkin)

begin

if (resetn = '0') then

USBState <= USBIDLE;

usbrdn <= '1';

usbwr <= '0';

iswrite <= '0';

usbdone <= '0';

data_read <= (others => '0');

elsif (rising_edge(clkin)) then

case USBState is

when USBIDLE =>

usbrdn <= '1';

usbwr <= '0';

iswrite <= '0';

usbdone <= '0';

if(readfifodata = '1' AND usbrxfn = '0') then

USBState <= USBGETBYTE;

elsif(writefifo = '1' AND usbtxen = '0') then

USBState <= USBPUTBYTE;

else

USBState <= USBIDLE;

end if;

when USBGETBYTE =>

usbwr <= '0';

iswrite <= '0';

usbdone <= '0';

usbrdn <= '0';

USBState <= USBSAVEBYTE;

when USBSAVEBYTE =>

usbwr <= '0';

iswrite <= '0';

usbdone <= '0';

usbrdn <= '0';

if(readfifodata = '1')then

data_read <= usbd;

end if;

USBState <= USBRDDN;

when USBRDDN =>

usbrdn <= '1';

usbwr <= '0';

iswrite <= '0';

usbdone <= '1';

if(readfifodata = '0' AND writefifo = '0')then

USBState <= USBIDLE;

end if;

when USBPUTBYTE =>

usbrdn <= '1';

usbwr <= '1';

iswrite <= '0';

usbdone <= '0';

USBState <= USBWOUT;

when USBWOUT =>

usbrdn <= '1';

usbwr <= '1';

iswrite <= '1';

usbdone <= '0';

USBState <= USBWHLD;

when USBWHLD =>

usbrdn <= '1';

usbwr <= '0';

iswrite <= '1';

usbdone <= '1';

if(readfifodata = '0' AND writefifo = '0')then

USBState <= USBIDLE;

end if;

end case;

end if;

end process usb_rx_tx;

usbd <= data_write when (iswrite) = '1' else "ZZZZZZZZ";

end rtl;

-------------------------------------------------------------

altera_forum · Answer

Using FT2232 in asynchronous mode with 24 MHz clock frequency does not solve the problem addressed in post# 2 to# 4. Synchroniszation is still required as long as FTDI internal and FPGA clock ar unrelated.
