Using AVALON FIFO MEMORY CORE : Data are Repeating in NIOS

Hello,

I am generating Trigger (500ns) and Counter data using Verilog code, whereas at every positive edge of trigger i am collecting and storing the data in register.

Verilog code

module Counter(
    input clk,
	 input enable,
    input reset,
    output reg[31:0] Final_value,
   output  reg trig
    );
    reg[31:0] counter_out;
    reg [7:0] temp=0;
    reg [31:0] counter_result;
    wire temp1;
    wire edge_detect;

   always@(posedge clk)
   begin
      if(reset)
          begin
           trig<=0;
          temp<=0;
          counter_out<=0;
           end
      else if (enable==1'b1)
          begin
          counter_out<=counter_out+1;
          temp<=temp+1;
             if(temp==25)
               begin
               temp<=0;
               trig<=~trig;
               end
	   end
  end
	 assign temp1=trig;
	assign temp2=temp1&&clk;
always@(posedge temp2)
    	  if(reset)
	     counter_result<=0;
	   else
	  begin
         counter_result<=counter_result+1;
         end
   always@(posedge trig)
       if(reset)
       Final_value<=0;
      else
    begin
    Final_value<=counter_result;
    end
endmodule

Altera Design as follows

  1. Counter module changed into block
  2. Interconnected with Qsys component
  3. Using FIFO, try to read the counter data

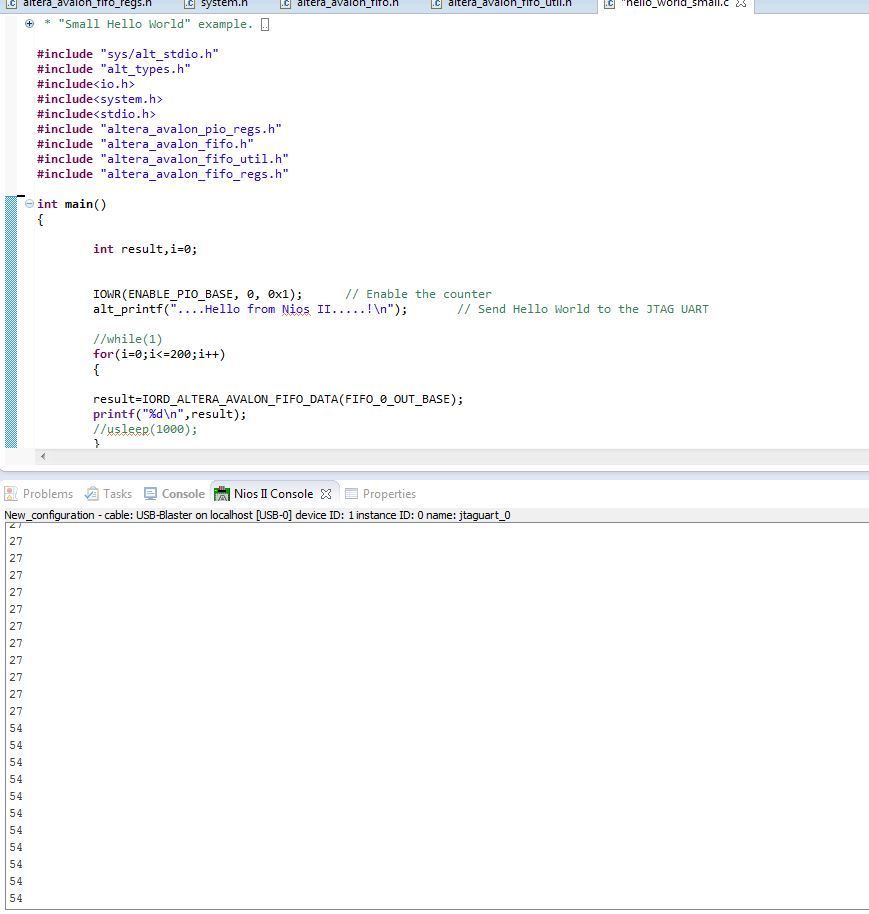

  4. Verifying the result in NIOS

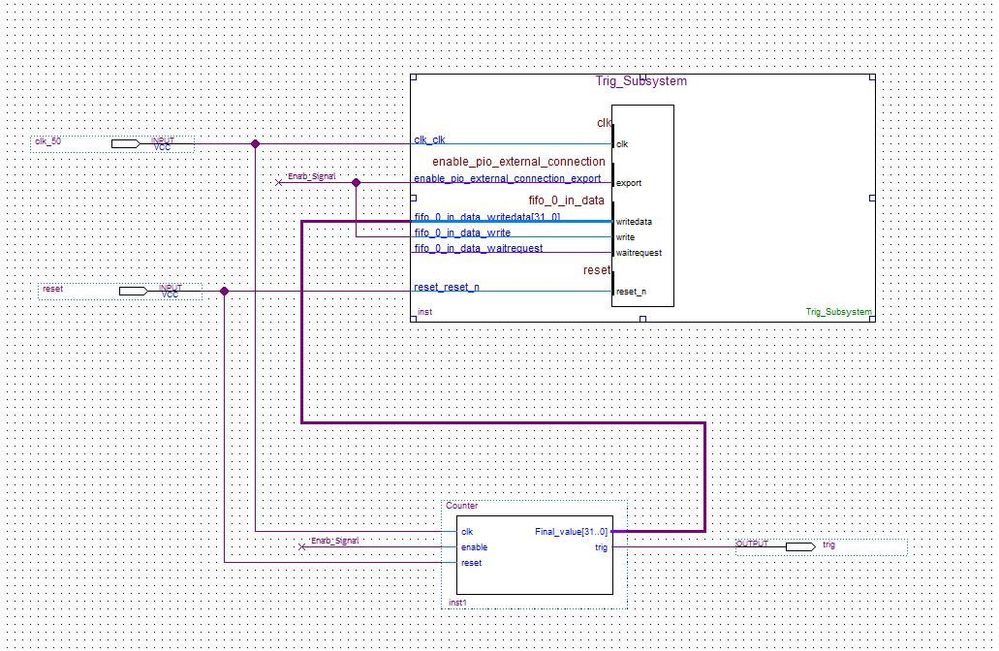

Top design

QSYS

IN NIOS , Data is repeating . I dont know why. can anyone please suggest me. Whether Verilog code logic is right.

1 Reply

  • Ahmed_H_Intel1's avatar
    Ahmed_H_Intel1
    Icon for Frequent Contributor rankFrequent Contributor

    Hello,

    Can you please review this part of code:

    1. always@(posedge clk)
    2. begin
    3. if(reset)
    4. begin
    5. trig<=0;
    6. temp<=0;
    7. counter_out<=0;
    8. end
    9. else if (enable==1'b1)
    10. begin
    11. counter_out<=counter_out+1;
    12. temp<=temp+1;
    13. if(temp==25)
    14. begin
    15. temp<=0;
    16. trig<=~trig;
    17. end
    18. end
    19. end

    I see that after the first count is over if the reset signal didn't come the trig will stay high and there will be two counters are counting at the same time because (assign temp1=trig;) temp1 will be high and then the next counter will be enabled and counting with the clk

    1. always@(posedge temp2)
    2. if(reset)
    3. counter_result<=0;
    4. else
    5. begin
    6. counter_result<=counter_result+1;
    7. end
    8. always@(posedge trig)
    9. if(reset)
    10. Final_value<=0;
    11. else
    12. begin
    13. Final_value<=counter_result;
    14. end

    I recommend to remove this assignment and try again

    assign temp2=temp1&&clk;

    or to change it to

    assign temp2=temp1;

    I know this isn't the desired system but just for debugging
