Unclear interpretation of readyAllowance in Avalon Streaming Interfaces

Hello,

I have a question about the interpretation of the readyAllowance property in back-pressured Avalon ST interfaces. It would be great if someone could help me out.

The Avalon specification defines readyAllowance in Sec. 5.4 as follows:

Defines the number of transfers that the sink can capture after ready is deasserted.

When readyAllowance = 0, the sink cannot accept any transfers after ready is deasserted. If readyAllowance = <n> where <n> is greater than 0, the sink can accept up to <n> transfers after ready is deasserted.

According to my reading, this definition does not require these possible <n> transfers to be consecutive.

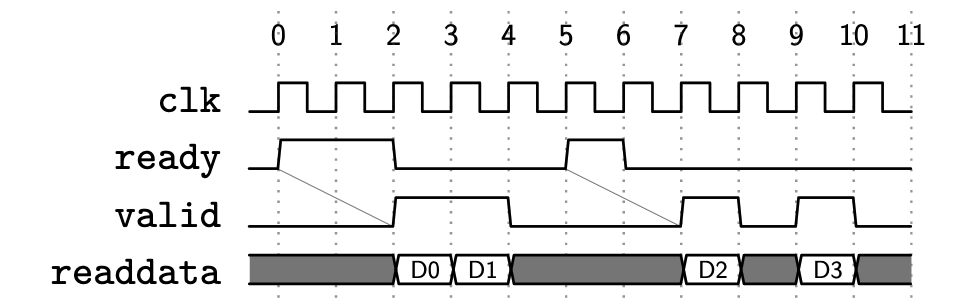

For example, looking at the timing diagram below and assuming readyLatency=2 (According to the specification, if nothing else is specified, readyAllowance will also be 2):

  • The first transfer (cycle 0 to 3) should be valid. In fact, Fig. 30 (Sec. 5.9.2) of the specification shows an equivalent transfer.
  • But what about the second one (cycle 5 to 9)? ready is de-asserted in cycle 6 and 2 transfers follow.Is there something in the definitions that does not allow this?

Any help on this would be greatly appreciated; thanks in advance.

Platform

3 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi Martin,


    First under section 5.4 explains the basic property of AVST interface.

    You may choose to transfer your data with 5.9.1. Data Transfers Using readyLatency and readyAllowance or 5.9.2. Data Transfers Using readyLatency

    The reason why the <n> transfers do not have to be consecutive is to allow for flexibility in the implementation of the Avalon ST interface.

    In a system where back pressure is used to control the flow of data, it may be beneficial for the sink to have the ability to accept a burst of data even after indicating that it is not ready to accept more data. This flexibility allows for better utilization of the data path and can improve overall system performance.

    By allowing the <n> transfers to be non-consecutive, the Avalon ST interface provides a mechanism for the sink to manage its data reception in a way that best suits its internal processing requirements.


    Hope that answer your question.


    Regards,

    Wei Chuan
