The problem about Transceiver Toolkit for testing IP : altera_xcvr_10gkr_a10

Hi all,

I want to test BER in Transceiver Toolkit for altera_xcvr_10gkr_a10,

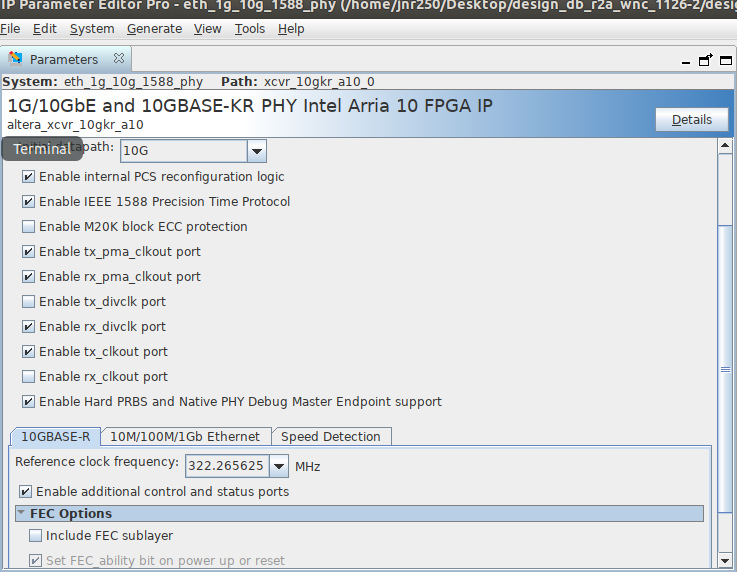

In IP Parameter, I choose "Enable Hard PRBS and Native PHY Debug Master Endpoint support"

After compile, in Transceiver Toolkit, I try to use Auto Sweep to loop-back PRBS, but the receiver can't receive any data, so the BER don't have any information.

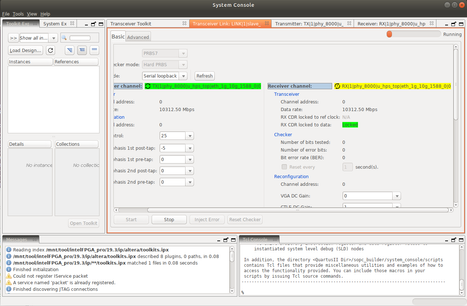

In the picture, I don't know why I have this yellow warning.

How to solve it.

THANKS!

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    5 years ago

    Hi


    If you can use the Native PHY IP will be a great help to narrow down the problem, you may use the 10G base R preset setting in Native PHY IP and then enable the PHY to debug the master port. This can help to rule out if there is any dependency on the BASR KR IP or any design connection relate problem.


    Regards -SK


6 Replies

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Before using the TTK, does this design working fine with any other traffic test? You might need to double-check your design if there is any clock/reset connection concern.


    Regards -SK


    • Sam_Chang's avatar
      Sam_Chang
      Icon for New Contributor rankNew Contributor
      5 years ago

      I double-check the clock/reset connection is connected

      the problem is still not solved

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi Sam,

    The 10GBase KR PHY IP includes the feature of ethernet standards, when you run the PRBS test, it may cause the receiver to keep resetting.

    To run the PHY PRBS test, it will be better if you can use the standalone Native PHY IP and configure it as 10G.


    • Sam_Chang's avatar
      Sam_Chang
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hi,

      So,I enable the HARD PRBS and Native PHY Debug Master Endpoint Support ,

      it still can't run PRBS test, right?

      THANKS!

  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi


    If you can use the Native PHY IP will be a great help to narrow down the problem, you may use the 10G base R preset setting in Native PHY IP and then enable the PHY to debug the master port. This can help to rule out if there is any dependency on the BASR KR IP or any design connection relate problem.


    Regards -SK


  • SengKok_L_Intel's avatar
    SengKok_L_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    If further support is needed in this thread, please post a response within 15 days. After 15 days, this thread will be transitioned to community support. The community users will be able to help you with your follow-up questions.
