SystemVerilog Cast Syntax in Quartus 20.1

Platform: Windows 10, Quartus 20.1 Standard

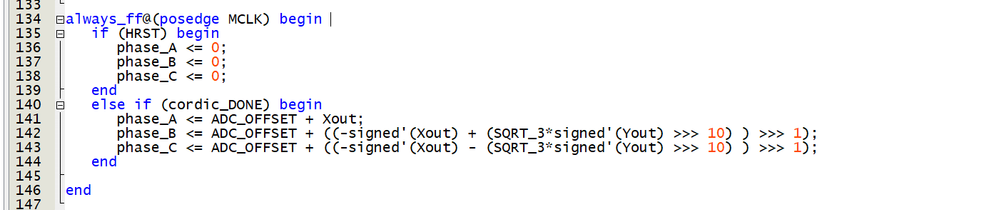

I have a design in which I used the SystemVerilog cast operators, and synthesis failed:

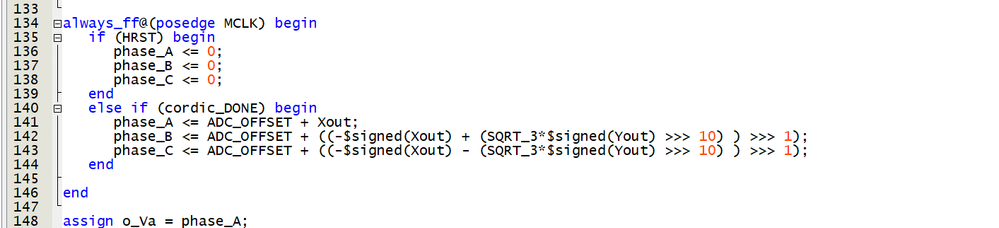

However, when I revert to old style cast operators, the design does compile as shown below:

So I take it that the modern SystemVerilog cast operators do not work, at least on Windows? Can someone at Intel confirm?

Thanks,

James

  • James_B's avatar
    James_B
    4 years ago

    It appears that Quartus does not support SystemVerilog modports, and also is not planning on supporting VHDL 2019 interfaces which support view. Thus, any struct(SystemVerilog) or record(VHDL) must have all members as either in or out direction when using them on a portlist, that is my conclusion to all of this.

5 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    What exact error are you getting? This is supported according to the built-in help, so the exact message you're getting might help figure out the issue.

  • James_B's avatar
    James_B
    Icon for Contributor rankContributor
    4 years ago

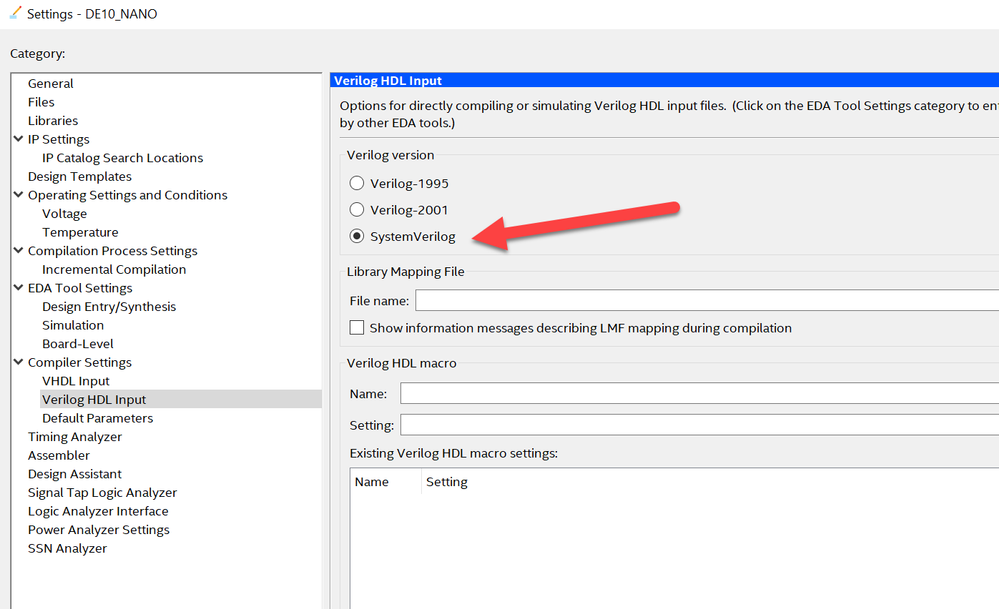

    I have a mixed VHDL/SystemVerilog design in Quartus. I made sure the SystemVerilog option was set. Upon compiling, I get the errors shown.

  • James_B's avatar
    James_B
    Icon for Contributor rankContributor
    4 years ago

    Yes, signed and unsigned types are part of SystemVerilog IEEE Standard 1800. Using a tool like Riviera-Pro for simulation, which is old (2018), the cast operator runs fine as I originally showed it working. Only in Quartus does it have an issue.

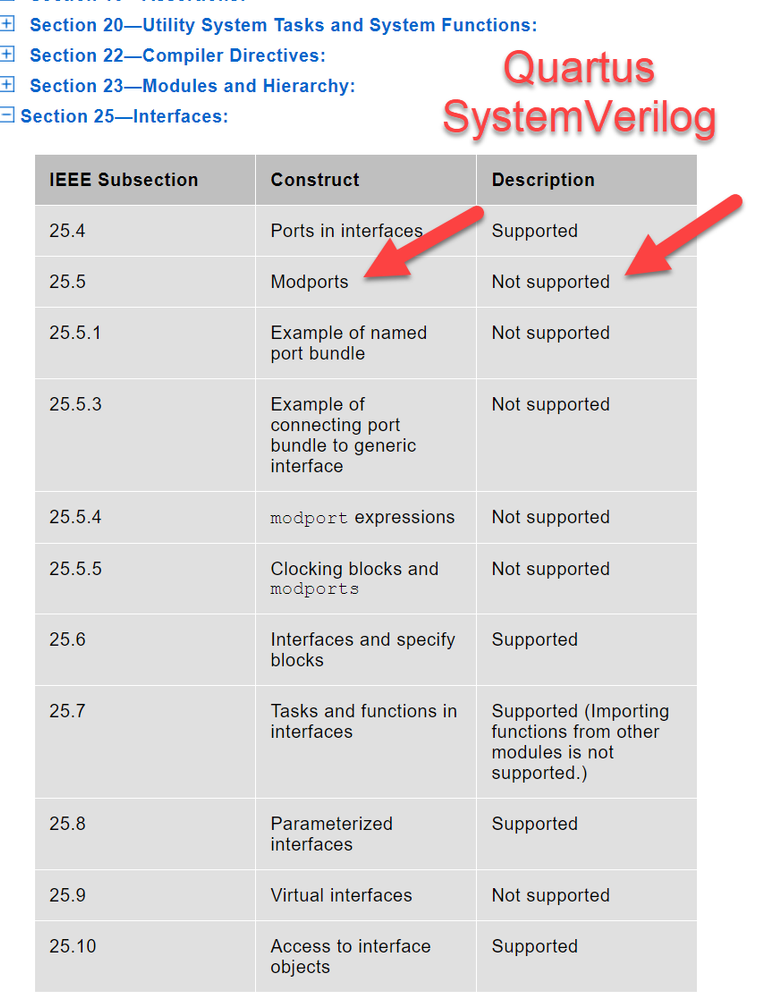

    Looking closer at Quartus SystemVerilog support, it is not as thorough as anticipated. For example, Quartus does not support modports on interfaces in SystemVerilog. So I think you have to look at the detailed aspects of the language to see what is supported in Quartus.

  • James_B's avatar
    James_B
    Icon for Contributor rankContributor
    4 years ago

    It appears that Quartus does not support SystemVerilog modports, and also is not planning on supporting VHDL 2019 interfaces which support view. Thus, any struct(SystemVerilog) or record(VHDL) must have all members as either in or out direction when using them on a portlist, that is my conclusion to all of this.
