Routing congestion problem

After synthesis, Fitter terminates due to routing congestion .

Average interconnect usage (total/H/V) 40.3% / 38.1% / 47.0%
Peak interconnect usage (total/H/V) 69.8% / 67.2% / 78.1%
Maximum fan-out 93034
Highest non-global fan-out 3773
Total fan-out 765512
Average fan-out 3.69

Warning (16684): The router is trying to resolve an exceedingly large amount of congestion. At the moment, it predicts long routing run time and/or significant setup or hold timing failures. Congestion details can be found in the Chip Planner.
Warning (16618): Fitter routing phase terminated due to routing congestion. Congestion details can be found in Chip Planner.
Error (170143): Final fitting attempt was unsuccessful


Please answer my below queries:
1) How to address this issue ? I referred to optimization document, but only understood and I could just address threshold level and view the chip layout in chip planner ? I didnt understand how to see what signals , in which module has high fan-out /routing etc? please help me with this. Document which i refferred is below:

Intel® Quartus® Prime Standard Edition Handbook Volume 2 Design Implementation and Optimization


2) Is there some detailed report showing routing signals?
3) Can I find out which module is causing high routing congestion?So that I can change the coding style of that particular module .

2 Replies

  • KhaiChein_Y_Intel's avatar
    KhaiChein_Y_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,

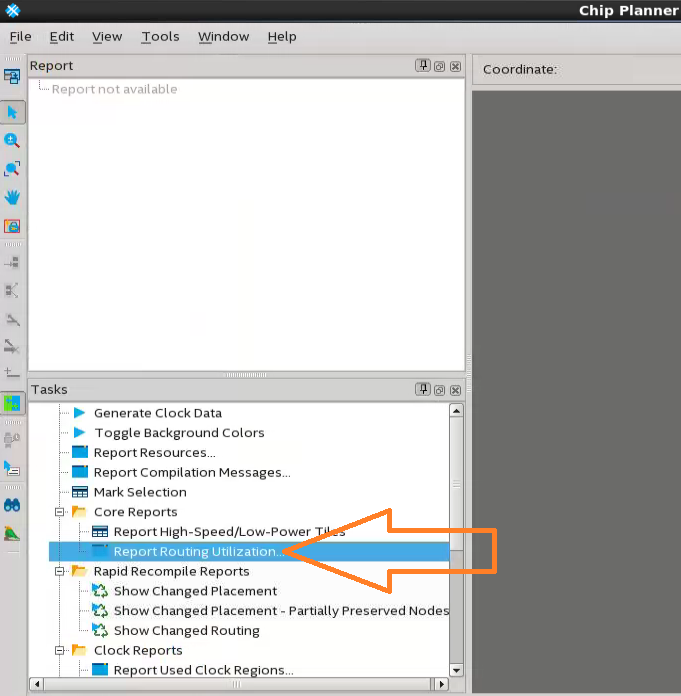

    You may report the routing utilization in the chip planner.

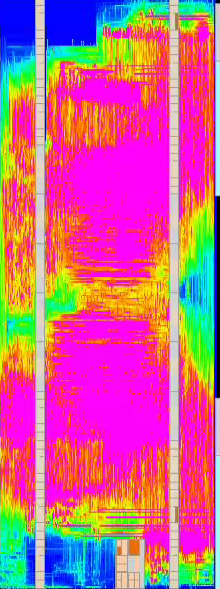

    The routing congested area will be shaded in pink/purple. You may check which module is placed at that location.

    Thanks.

    Best regards,

    KhaiY

    • KhaiChein_Y_Intel's avatar
      KhaiChein_Y_Intel
      Icon for Regular Contributor rankRegular Contributor

      Hi,

      We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you

      Best regards,

      KhaiY
