Quartus Prime Lite 23.1 PLL Wizard Problem

Hello,

I am a beginner trying to use ALTPLL to generate a PLL IP. The problem is that the MegaWizard quit when I reach the third step "Output Clocks" and don't allow me to continue the IP generation. First image shows the wizard and the step it quits at. Second image shows the menu that appear after the wizard quit, when "yes" is pressed an empty .qip file get added to the project.

Am I doing something wrong? please help.

Hdl

15 Replies

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,

    Sorry for the delay and thank you for reaching out. Allow me some time to look into your issue. I shall come back to you with findings.

    Thank you for your patience.

    Best Regards,

    Nazrul Naim


  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hello,


    Sorry for the delay. Can I know which version of Quartus you are using, and which device are being used.


    Best regards,

    Nazrul Naim


    • EKaya's avatar
      EKaya
      Icon for New Contributor rankNew Contributor
      2 years ago

      Having the same issue with EP4CE10E22C8N Quartus Lite 23.1.std.0 build 991.

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    Thank you for the update. I will get back to you as soon as I managed to find the solution.


    Thank you for your patience.


    Best regards,

    Nazrul Naim


  • EKaya's avatar
    EKaya
    Icon for New Contributor rankNew Contributor
    2 years ago

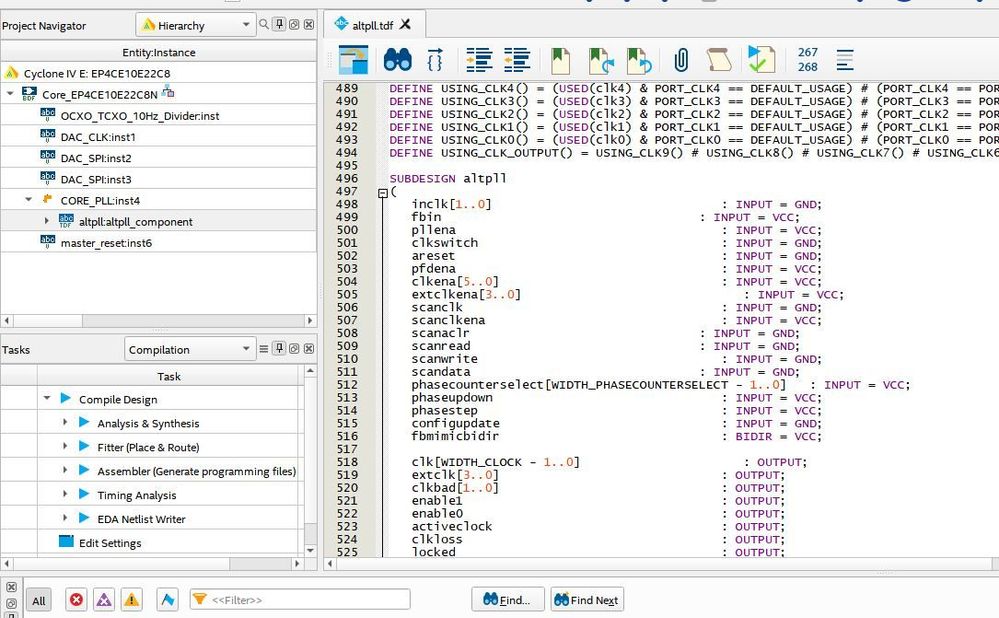

    Cyclone IV familiy definitely supports ALT PLL, since its introduction in 2009.. Here is a screen shot from Quartus 22.1...

    BTW linked document is dated from 2006, Cyclone IV introduced in 2009... Of course ALTPLL can`t suport it in 2006..

    /****/Solution/****/

    Basic function is broken in version 23.1 ...

    Either downgrading to <=22.1 or copying ALTPLL from 22.1 to 23.x solves the issue...

    /****/

    Have a nice day.

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hello @Nawaf ,

    Do you have the update regarding this issue and may I know what device and Quartus version are you using.

    Looking forward to your reply and to make sure the issue can be solved.

    Best regards,

    Nazrul Naim

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hello,

    As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

    Best regards,

    Nazrul Naim


    • PrivateIsland's avatar
      PrivateIsland
      Icon for New Contributor rankNew Contributor
      2 years ago

      Hello Intel,

      I installed the patch onto a 23.1 Quartus Lite install, and it fixed the PLL wizard. However, Quartus now repeatedly prompts me to upgrade all the IP blocks even though they are all up to date.

      Please let us know if there is a fix for this and when we can expect a new version of Quartus Lite that doesn't require this patch.

      Thank you.

      • Marco_Intel's avatar
        Marco_Intel
        Icon for New Contributor rankNew Contributor
        2 years ago
        The patch was for Quartus Standard, not Lite version.

        For Quartus Lite I do recommend to stay in 22.1.
