Problem with accessing the DE1 board SRAM

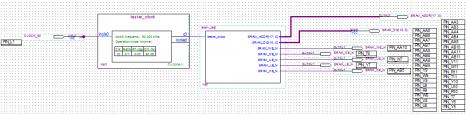

I am having trouble reading the SRAM on the DE1 board :(. Below are the code used to access the SRAM. My objective is to write data to an address once and read that particular address more than once. The tester_clock runs at the speed of 100MHz. The picture uploaded is the block diagram for the system.

The pins were analysed by SignalTap. The data x"0505" seems to be transmitting to the SRAM. However, I received no responds from the SRAM.

library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_signed.all;

entity sram_test is

port(

SRAM_ADDR : out std_logic_vector (17 downto 0);

SRAM_DQ : out std_logic_vector (15 downto 0);

SRAM_WE_N : out std_logic;

SRAM_OE_N : out std_logic;

SRAM_UB_N : out std_logic := '0';

SRAM_LB_N : out std_logic := '0';

SRAM_CE_N : out std_logic := '0';

tester_clock: in std_logic

);

end entity;

architecture rtl of sram_test is

signal in_SRAM_WE_N : std_logic := '0';

begin

process (tester_clock)-------------

begin

if (rising_edge(tester_clock)) then

if (in_SRAM_WE_N = '0') then -- Write mode

SRAM_ADDR <= (others => '0'); -- Address location 0 selected

SRAM_WE_N <= '0';

SRAM_OE_N <= '1';

SRAM_DQ <= x"0505"; -- Write data to selected address

in_SRAM_WE_N <= '1'; -- Switch to read mode

elsif (in_SRAM_WE_N = '1') then -- Read mode

SRAM_WE_N <= '1'; -- Read mode selected

SRAM_OE_N <= '0'; -- Output enabled

SRAM_ADDR <= (others => '0');

end if;

end if;

end process;

end rtl;
