Pin Migration Cyclone 10 GX

Hello,

I am using Pin Planner to verify the pin compatibility between C10GX150 and C10GX220.

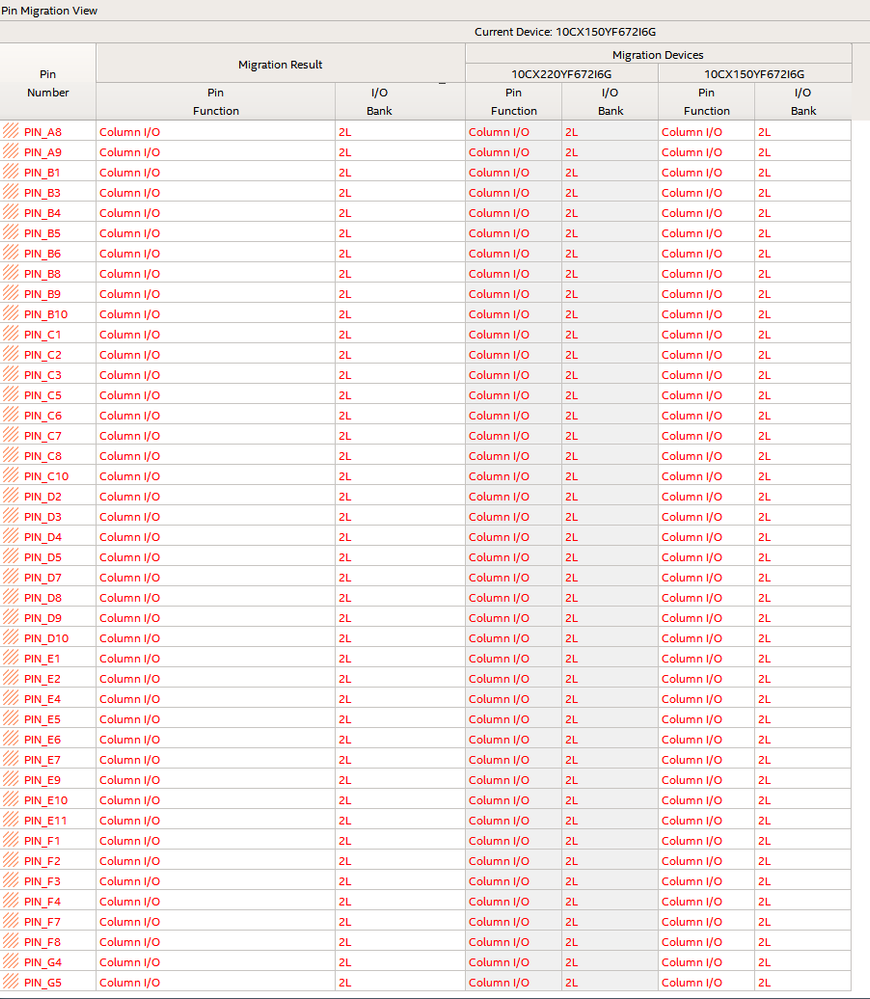

I saw high lightened pins in bank 2L for unknown reason, please forward to attachment.

Should I skip this and suppose those 2 devices can work as well?

If not, then what should I do?

Thank you!

Regards,

Johnson

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    6 years ago

    Hi,

    Pin function or I/O back column will be NC.

    1. We have to Compare the PINOUT file and find the difference and check it with respect to pin connection guidelines
    2. If we are doing Quartus design migration we can change the device PN and compile the design and check.

    Regards

    Anand

3 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Johnson,

    Which version of tool are you using?

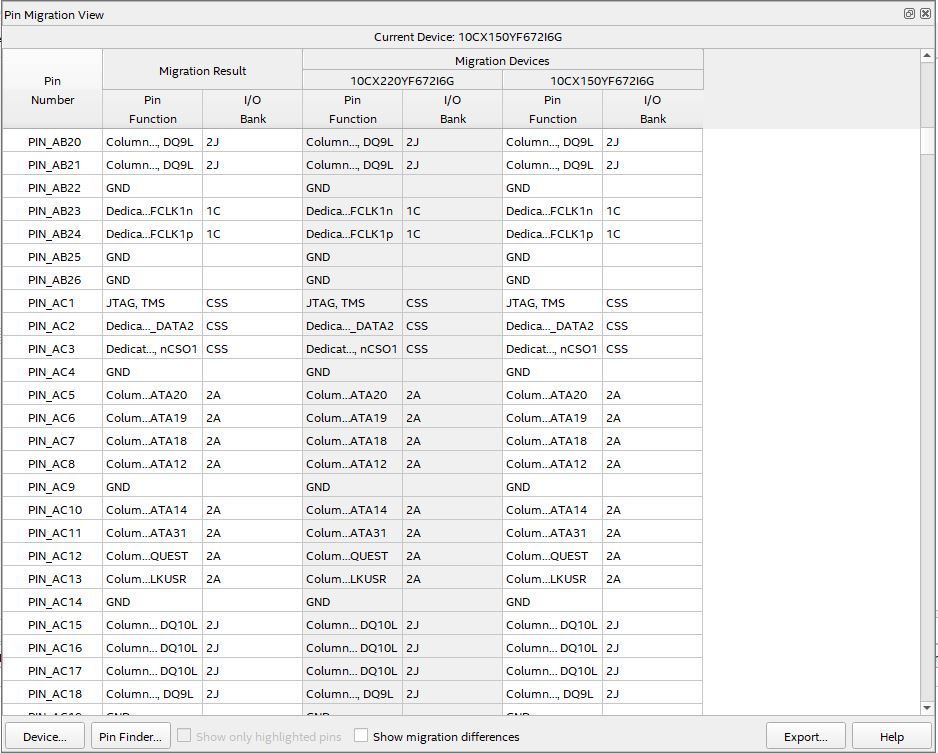

    I have check it using Quartus 19.1 pro. Nothing is been lightened Attached the report.

    Also try pin-out files comparison.

    Regards

    Anand

  • JLee25's avatar
    JLee25
    Icon for Contributor rankContributor
    6 years ago

    Hi Anad,

    Thank you for getting back.

    I am using Quartus Prime Pro Edition Ver. 18.0.1 Build 261 for the fit.

    If the migration has problem, what message it will show to indicate the error?

    Regards,

    Johnson

    • AnandRaj_S_Intel's avatar
      AnandRaj_S_Intel
      Icon for Regular Contributor rankRegular Contributor
      6 years ago

      Hi,

      Pin function or I/O back column will be NC.

      1. We have to Compare the PINOUT file and find the difference and check it with respect to pin connection guidelines
      2. If we are doing Quartus design migration we can change the device PN and compile the design and check.

      Regards

      Anand
