Pass a generic or make generic/constant available via qsys

Question

Hi guysI wanted to ask if there's a possibility to either pass a generic/constant argument to qsys IP or make the defined generic/constant available.The idea is to define the value of an SPI clock speed only at one place and everything else follows suit. Right now we just instantiate a standard IP block and set the value manually and there's another VHDL file that also utilises the SPI but doesn't know the SPI clock speed resp. we need to manually define it which could be theoretically forgotten if someone changes the value in qsys. I appreciate any replies and wish a nice time. Kinda regardsLuigi

shengn_altera · Answer

Hi,You can export as HDL parameter. Then pass the generic with the command set_parameter check this link https://www.intel.com/content/www/us/en/docs/programmable/683432/22-4/tcl_pkg_project_ui_ver_1-0_cmd_set_parameter.html or using GUI by go to Assignments -&gt; Settings -&gt; Default ParametersThanks,Best Regards,Sheng

sstrell · Answer

Are you saying this is a parameter set in a standalone IP that you want to transfer into a lower-level (instantiated) Platform Designer system?

Or are you saying this is a component already in a PD system that you want to want to pass its parameter value elsewhere in the system (hierarchical system design)?

shengn_altera · Answer

Hi Luigi,Just notice that this SPI Intel FPGA IP originally don't have any HDL Parameter so you can't pass this parameter from .qsf file to the IP module or take the value from the IP module.Possible way is to manually create parameter for the slowcount in spi_spi_0_altera_avalon_spi_1923_przinoa.v check screenshot below and link that parameter all the way to top level wrapper. 128000 Hz having 196 clock pulses while 100000 Hz having 250 clock pulses. However, you probably can only pass this parameter to IP module but can't take value from IP module because that module will be getting changed back to original version when IP being regenerated. So may be you can export system as .tcl and read IP value from .tcl.

shengn_altera · Answer

Seems like export the system in .tcl and compare, modify the values in .tcl will be more easier. Then use qsys-script command to source it. Then, run qsys-generate or Generate HDL in GUI.

luigi_boy · Answer

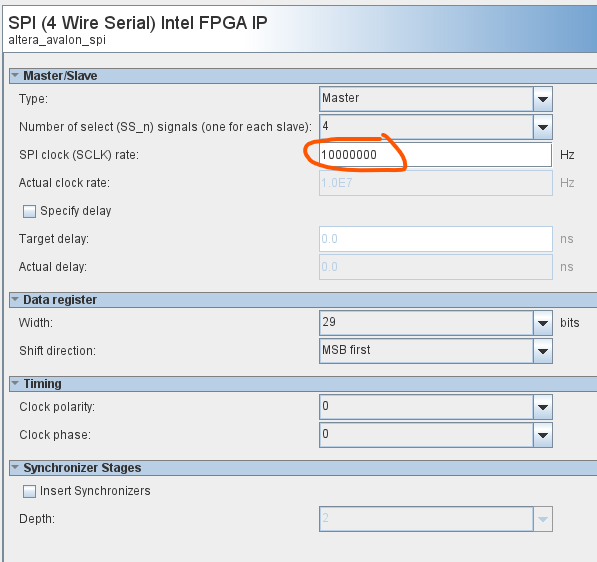

Thank you for your reply.The parameter is set in an IP (4-line SPI) that you can generate with qsys. It's a standalone IP, I'd guess.My aim is to set this parameter either via a generic that can be generated in 'HDL parameters' (see: https://www.intel.com/content/www/us/en/docs/programmable/683609/21-3/exporting-hdl-parameters-to-a-system.html) or I make this value I set in the given screenshot to other VHDL modules available. It's just to avoid one source for potential mistake.
