multiple drivers due to conflicting nodes

I cannot find any documentation on the "multiple drivers due to conflicting nodes" error.

Which handbook/guide would this be documented inside?

I'm using Quartus Prime Lite Edition Version 20.1.0 Build 711 06/05/2020

  • KennyT_altera's avatar
    KennyT_altera
    5 years ago

    Thanks for your design.qar files.


    This seems to be a bug in the standard where the error does not report the correct place.


    If you use pro edition, you will see the error more accurate.


    The Error mention is because you have multiple driver toward dataIN. In your SystemVerilogTest1.sv, go to line 142, comment out //assign dataBus = ( chipSelectRAM ) ? dataOut : 16'bZZZZZZZZZZZZZZZZ; // Do I need to include iSDRAMWriteRequest here??


    You will see that the synthesis passed.

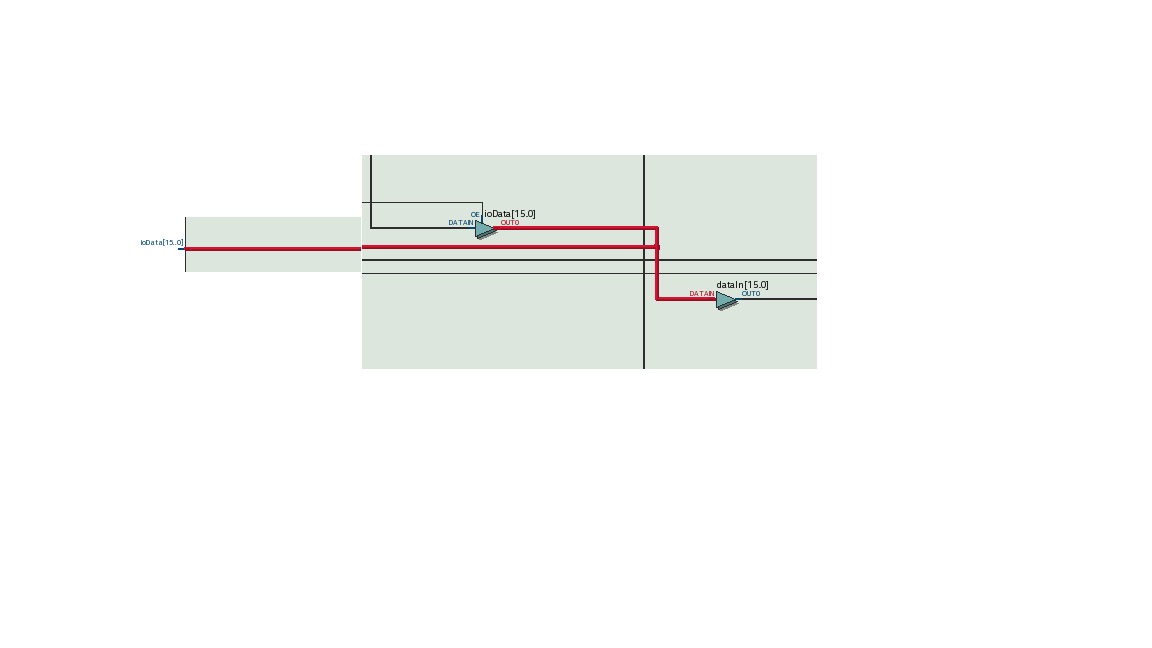

    How do you check if this datain have multiple driver, you can run elaboration. Go to rtl viewer, look for the signal datain and you will see there are two driver driving it. Attached screenshot.


5 Replies

  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    Thanks for your design.qar files.


    This seems to be a bug in the standard where the error does not report the correct place.


    If you use pro edition, you will see the error more accurate.


    The Error mention is because you have multiple driver toward dataIN. In your SystemVerilogTest1.sv, go to line 142, comment out //assign dataBus = ( chipSelectRAM ) ? dataOut : 16'bZZZZZZZZZZZZZZZZ; // Do I need to include iSDRAMWriteRequest here??


    You will see that the synthesis passed.


    How do you check if this datain have multiple driver, you can run elaboration. Go to rtl viewer, look for the signal datain and you will see there are two driver driving it. Attached screenshot.


    • SparkyNZ's avatar
      SparkyNZ
      Icon for Contributor rankContributor
      5 years ago

      Thanks @KennyTan_Altera . I will mark your response as the accept solution. The more I look at my code, the more ridiculous it is.. but that's what happens when you get confused about what you can and cannot do.

      I still don't understand why some of those registers were removed from my design. I can only assume it's Quartus attempting to optimise redundant logic and throwing it away.

      Now that I understand what the basic problem is, I can move forward. My VGAController is doing the wrong thing anyway. I've replaced the chipSelectRAM and chipSelectVGA with a 2-bit value of enums so chipSelect is mutually exclusive for my modules. Having 2 separate logic flags I ran the risk of both chipSelectXXX flags being high at the same time.

      Thanks again for your help.

  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    Usually when you right click the error message, it will show you the details in a link.


    Can you copy and paste the full error message here?


    this might due to when you are assigning the same signal on 2 different edges. Doing something like:


    always @(posedge clk)

    foo<=value


    always @(posedge other_signal)

    foo<=other_value


    will quite likely result in such an error, because foo is a single flip-flop and it can be clocked from one source. You could do some additional logic that will take clk and other_signal and generate single write strobe out of those two, but then you will quite possibly run into warnings concerning usage of general routing resources as clock signals. If you add something like this:


    Code: [Select]

    always @ (a, b, c)

    if(a)

    foo=b;

    else

    foo=c;

    (this should synthesize to a mux)


    then you will most definitely get that error, since mux will result in non-registered value, and the clocked part will produce a registered value.


    • SparkyNZ's avatar
      SparkyNZ
      Icon for Contributor rankContributor
      5 years ago

      Hi @KennyTan_Altera . Sure, the error I get is (using right-click and Copy):

      Error (13076): The node "VGAController:vgaController|dataH" has multiple drivers due to the conflicting nodes "dataBus[8]" and "SDRAMController8Bit:sdramController|ioData[8]"

      I'll attach my project - probably easier - it also relates to all of the many questions I had in my previous post too.

      SystemVerilogTest1.sv is my top level file. There's a lot of unfinished rubbish in it's state machine but hopefully it will help. I really do need to move to non-blocking assignments too but.. I haven't.. yet.
