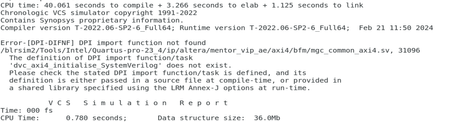

Missing DPI import function "dvc_axi4_initialise_SystemVerilog" while simulating axi4 bfm in VCS

Hi, I was doing simulation with Quartus generated AXI4 bfm in VCS. The script I used to run the simulation is generated by using the Quartus tool (version 23.4.0). While running the simulation, afte...
Simulation
  • ShengN_altera's avatar
    ShengN_altera
    2 years ago

    Hi Dins,

    Attached the design example script file.

    Make sure line 14:

    export QUESTA_MVC_GCC_LIB=${MENTOR_VIP_AE}/common/questa_mvc_core/linux_x86_64_gcc-6.2.0_vcs

    Make sure included line 30:

    export LDFLAGS="-L ${QUESTA_MVC_GCC_LIB} -Wl,-rpath ${QUESTA_MVC_GCC_LIB} -laxi4_IN_SystemVerilog_VCS_full_DVC "

    and line 37-42:

    $MENTOR_VIP_AE/common/questa_mvc_svapi.svh \

    $MENTOR_VIP_AE/axi4/bfm/mgc_common_axi4.sv \

    $MENTOR_VIP_AE/axi4/bfm/mgc_axi4_monitor.sv \

    $MENTOR_VIP_AE/axi4/bfm/mgc_axi4_inline_monitor.sv \

    $MENTOR_VIP_AE/axi4/bfm/mgc_axi4_slave.sv \

    $MENTOR_VIP_AE/axi4/bfm/mgc_axi4_master.sv \

ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
2 years ago

Hi Dins,

Attached the design example script file.

Make sure line 14:

export QUESTA_MVC_GCC_LIB=${MENTOR_VIP_AE}/common/questa_mvc_core/linux_x86_64_gcc-6.2.0_vcs

Make sure included line 30:

export LDFLAGS="-L ${QUESTA_MVC_GCC_LIB} -Wl,-rpath ${QUESTA_MVC_GCC_LIB} -laxi4_IN_SystemVerilog_VCS_full_DVC "

and line 37-42:

$MENTOR_VIP_AE/common/questa_mvc_svapi.svh \

$MENTOR_VIP_AE/axi4/bfm/mgc_common_axi4.sv \

$MENTOR_VIP_AE/axi4/bfm/mgc_axi4_monitor.sv \

$MENTOR_VIP_AE/axi4/bfm/mgc_axi4_inline_monitor.sv \

$MENTOR_VIP_AE/axi4/bfm/mgc_axi4_slave.sv \

$MENTOR_VIP_AE/axi4/bfm/mgc_axi4_master.sv \

Dins's avatar
Dins
Icon for New Contributor rankNew Contributor
2 years ago

Hi ShengN_Intel,

I have done the suggested changes. I haven't added monitor files before in my file list. While adding those files and paths as per the suggestion, the issue is fixed and able to run the simulation.

Thanks for your help.

Thanks, and regards,
Dins
