Minimum pulse width Violation at Triple-Speed Ethernet Intel FPGA IP Cyclone 10 LP problem (Output Port Rate related)

I am integrating the triple speed ethernet Intel Core into my design and I am having some timing problems.

My system is:

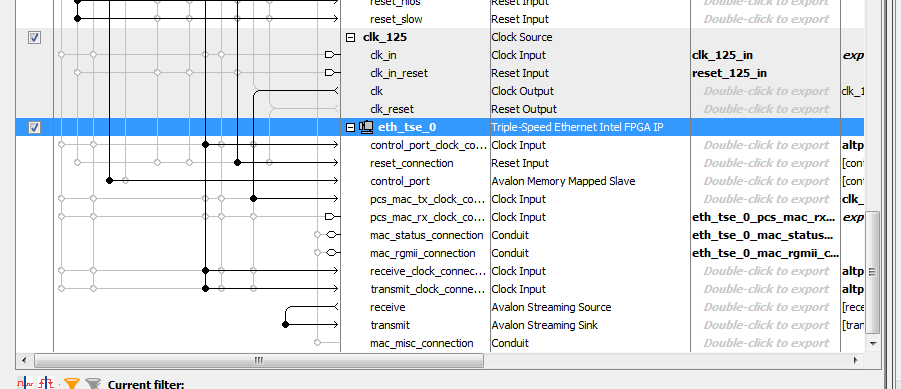

External Clk125 -> clk125 FPGA pin -> Clock Control -> Triple-Speed Ethernet Intel FPGA IP

Then after fitting the design the compiler says that it has a Minimum pulse width Violation:

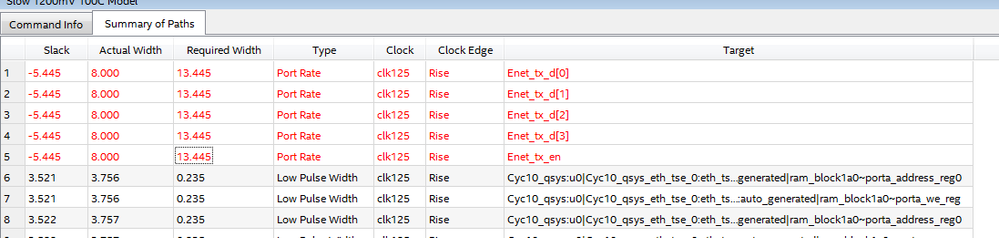

I run an analysis and it says:

So the problem is in the output data and enable signal of the Intel Ethernet CORE.

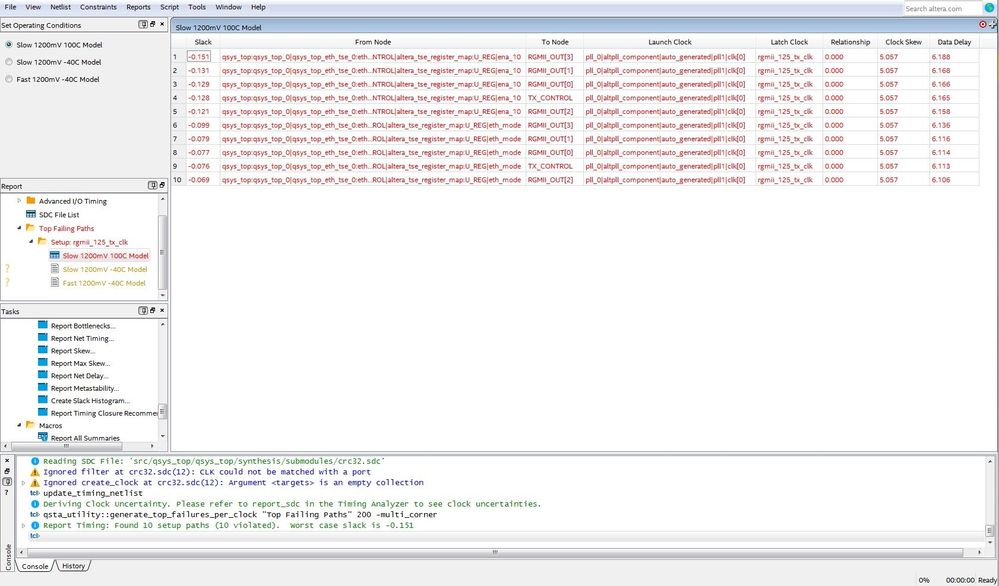

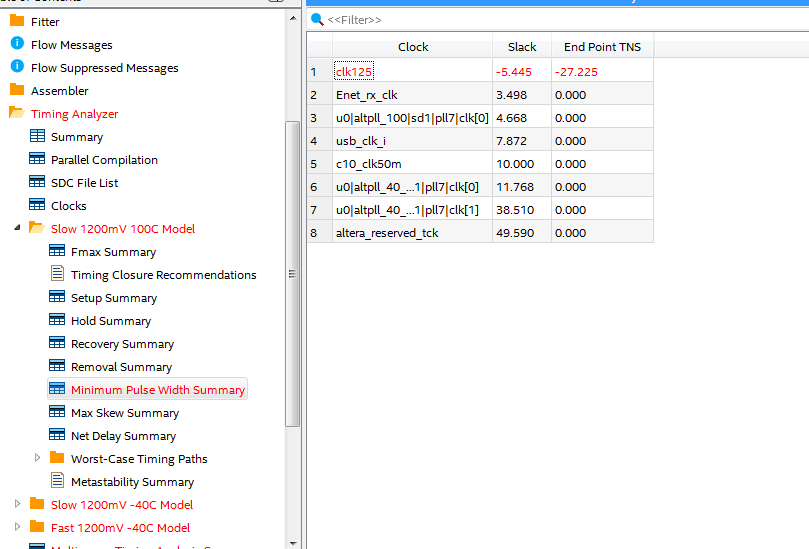

-Other interesting stuff that I found:

+--------------------------------------------------------------------------------------------------------------------+

; Slow 1200mV 100C Model Fmax Summary ;

+------------+-----------------+---------------------------------+---------------------------------------------------+

; Fmax ; Restricted Fmax ; Clock Name ; Note ;

+------------+-----------------+---------------------------------+---------------------------------------------------+

; 22.75 MHz ; 22.75 MHz ; u0|altpll_40_10|sd1|pll7|clk[1] ; ;

; 66.09 MHz ; 66.09 MHz ; u0|altpll_40_10|sd1|pll7|clk[0] ; ;

; 120.29 MHz ; 120.29 MHz ; u0|altpll_100|sd1|pll7|clk[0] ; ;

; 122.87 MHz ; 122.87 MHz ; usb_clk_i ; ;

; 126.2 MHz ; 126.2 MHz ; altera_reserved_tck ; ;

; 138.18 MHz ; 74.38 MHz ; clk125 ; limit due to minimum port rate restriction (tmin) ;

; 180.28 MHz ; 180.28 MHz ; Enet_rx_clk ; ;

+------------+-----------------+---------------------------------+---------------------------------------------------+

-How I can delete this restriction? I think that this is the problem.

-If you press in failing parts there is no failing paths, the problem is that the port has a timing restriction, so it doesn’t matter the path, just the output frequency.

I have a look on internet and I found this fix:

https://forums.intel.com/s/question/0D50P00003yyTDDSA2/minimum-pulse-width-error?language=en_US

It says to things:

  • Use the command set_min_pulse_width -high 4.0 [all_clocks] set_min_pulse_width -low 4.0 [all_clocks] that is not recognized by Quartus/
  • Change the current of the ports, I tried it and I set to the maximum and it helps during 2 compilations (the slack was reduced by 2) but it didn’t totally fix the problem and after two compilations it returned to the initial slack.

Thanks.
