MAX10(10M50DAF484C8G) : "1.8 V LVCMOS I/O standard is not supported by the device"

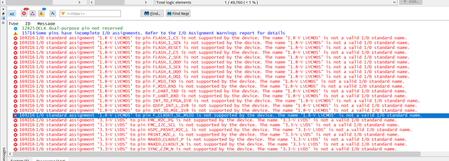

Hi, I am currently encountering numerous errors during the compilation of my design in Quartus Prime Lite (version 19.1.0). According to the user guide, the device part I am using supports 1.8V LVCM...
Hdl
FvM's avatar
FvM
Icon for Super Contributor rankSuper Contributor
1 year ago
Hi,
I wonder how you assigned the shown I/O standards. There's no 3.3V LVDS standard available for any FPGA. Similarly, the MAX10 1.8V I/O standard has a different name. Suggest to select I/O standard either in pin planner or assignment editor out of available settings.
