LEDs in interleaving method

Hi Mustapa,

I can't understand what is the problem: duplicate or extend what you have already done for a single LED. If I correctly understand what you ask is quite straightforward.

Anyway, you'd better try to write some code and post it if you have issues. You'll hardly receive help here in the forum if you simply ask someone to write all the code for you.

--- Quote Start ---

Hi Mustapa,

I can't understand what is the problem: duplicate or extend what you have already done for a single LED. If I correctly understand what you ask is quite straightforward.

Anyway, you'd better try to write some code and post it if you have issues. You'll hardly receive help here in the forum if you simply ask someone to write all the code for you.

--- Quote End ---

Hi Cris, thank you for replying to me. What i want to do is to have the second LED to light on right after the first LED lights off, yes its quite straightforward. I know i need another comparator for the second PWM signal but i dont know how to make the second signal to start instantaneously after the first signal become '0', below is the code for my first comparator with a count modulus of 100 and clock divider frequency of 100MHz.

Library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_unsigned.all;

entity comparator is

port( q, b : in std_logic_vector( 6 downto 0);

c : out std_logic);

end comparator;

architecture body3 of comparator is

begin

process (q, b)

begin

if (q<= b)

then c<='1';

else

c<='0';

end if;

end process;

end body3;

if i make changes like this to the code for the second comparator,

begin

if (c<=1)

then c2<='0';

else if (q<= b)

then c2<='1';

would it be correct?

Hi mushussain ,

You can use PLL and Counter IP from QSYS.

or

find the code below and modify as per your requirement.

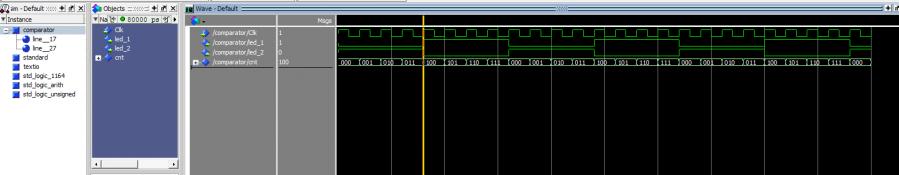

Check the attached image.

https://alteraforum.com/forum/attachment.php?attachmentid=14324&stc=1

Library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity comparator is
port( Clk:in std_logic;
    led_1: out std_logic;
    led_2: out std_logic
);
end comparator;
architecture body3 of comparator is
signal cnt:std_logic_vector(2 downto 0):=(others=>'0');
begin
process (clk)
begin
 if rising_edge(clk) then
  cnt<=cnt+'1';
   if(cnt="111")then
    cnt<=(others=>'0');
   end if;
  end if;
end process;
process (clk,cnt)
begin
 if (cnt<="011")then
  led_1<='0';
  led_2<='1';
 else
  led_1<='1';
  led_2<='0';
 end if;
end process;
end body3;

Best Regards,

Anand Raj Shankar

(This message was posted on behalf of Intel Corporation)

You can do it with a single modified comparator entity: you simply need to add another compare input (b2) and another status output (c2).

Here is a very naive example; modify it according to the desired LED behavior.

process (q, b1, b2, c1, c2)
 begin
    if (q<= b1)   then
       c1<='1'
       c2<='0';
   elsif (q<=b2) then
      c1<='0'
      c2<='1';
   else
     c1<='0'
     c2<='0';
   end if;
end process;

thanks Anand and Chris for your help but i think that is not what im trying to do with my project. I think i should use 'and' in the condition.

i tried to change my if statement condition in my first comparator code but it ended up error.

begin

if (q<= b && 0<=b>=19)

then c<='1';

else

c<='0';

end if;

the error says this "Error (10500): VHDL syntax error at comparator.vhd(12) near text "&"; expecting "(", or an identifier, or unary operator" and im not sure where i do wrong and what to change. can you guys help?

thanks

&& is C or Verilog Syntax.

You need to use keyword "and"

I suggest reviewing VHDL tutorial..

hi, i would like to thank all of you for helping me. i am now able to complete my project all thanks to you all guidance. below is the code is use for comparator 1 and comparator 2

comparator 1:

Library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_unsigned.all;

entity comparator is

port( q, b : in std_logic_vector( 6 downto 0);

c : out std_logic);

end comparator;

architecture body3 of comparator is

begin

process (q, b)

begin

if (q< b +1)

then c<='1';

else

c<='0';

end if;

end process;

end body3;

comparator 2:

Library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_unsigned.all;

entity comparator1 is

port( x, y : in std_logic_vector( 6 downto 0);

c1 : out std_logic);

end comparator1;

architecture body3 of comparator1 is

begin

process (x, y)

begin

if (x>19) and (x<= 20+y)

then c1<='1';

else

c1<='0';

end if;

end process;

end body3;
