Latch clocked by "rst" signal

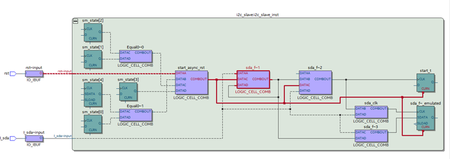

Hi, There is something I don't understand during the design compilation. After the compilation, I have the following warning message : Warning (332060): Node: rst was determined to be a clock b...
sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
6 years ago

There must be an error in your HDL code that is making the compiler think this is a clock signal. Can you post the code?

    • sstrell's avatar
      sstrell
      Icon for Super Contributor rankSuper Contributor
      6 years ago

      I think the problem is poor code or an error in the code. From what you posted:

      process(sda_clk, start_async_rst)

      begin
      if (start_async_rst = '1') then
      sda_f <= sda_in;
      elsif (rising_edge(sda_clk)) then
      sda_f <= sda_in;
      end if;
      end process;

      sda_f is getting inferred as a latch instead of a register because the reset is coded incorrectly. sda_f should get 0, I would presume, when start_async_rst equals 1. As such, start_async_rst (and its source, rst) are inferred as a clock gate essentially, so Quartus thinks it needs a clock assignment. So I don't know if that is an error in the IP you got, but a coding issue is causing the warning.

      • aroturier's avatar
        aroturier
        Icon for New Contributor rankNew Contributor
        6 years ago

        Ok, i see what is the problem.

        I don't need an asynchronous reset, so i just rewrite it like this, and it works well :

        process(sda_clk)

        begin
        if (rising_edge(sda_clk)) then
        sda_f <= sda_in;
        end if;
        end process;

        Thank you for your help,

        Antoine
