In-system memory content editor - No instances found!!

Hi All,

I am using Quartus prime pro 20.2 version to debug my ROM content. I don't see any ROM instances in my design. I have done the following so far:

1. Create On Chip Memory block using the IP catalog

2. Specify the parameters e.g: Width and memory block type (M20K), single clock.

3. I initialized the memory with the MIF file and enabled the In-system memory content editor feature (see the picture).

// Content of MIF file

WIDTH=32;
DEPTH=16384;

ADDRESS_RADIX=HEX;
DATA_RADIX=HEX;

CONTENT BEGIN
00000000 : 1F2F3F4F;
00000001 : 1F2F3F4F;
00000002 : 1F2F3F4F;
00000003 : 1F2F3F4F;
00000004 : 1F2F3F4F;
00000005 : 1F2F3F4F;
00000006 : 1F2F3F4F;
00000007 : 1F2F3F4F;
00000008 : 1F2F3F4F;

4. Added the .IP file and .MIF file to the QSF file.

set_global_assignment -name IP_FILE ../ram_rom/cm33_rom_16384x32.ip
set_global_assignment -name MIF_FILE ../ram_rom/cm33_rom/armRomBootImage.mif

5. After the mapping, I could see my rom1_port_0 instance in the block diagram.

6. I upload the SOF file to the Stratix 10 Fpga (Apollo S10)

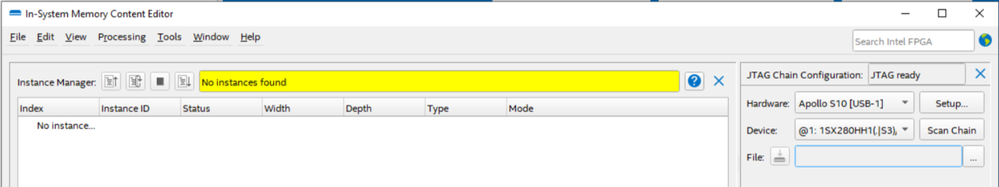

7. However, when I try to use the In-system memory content editor tool, I don't see any memory instance, see the picture below.

Am I missing something in this flow ? Does anyone else have seen this problem ?

Kind regards,

Rahul
