In-system memory content editor - No instances found!!

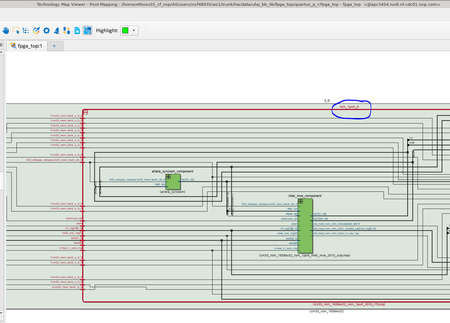

Hi All, I am using Quartus prime pro 20.2 version to debug my ROM content. I don't see any ROM instances in my design. I have done the following so far: 1. Create On Chip Memory block using the...
  • ShengN_altera's avatar
    ShengN_altera
    3 years ago

    Hi,

    Tested with Stratix 10 TX and able to see the instance in ISMCE. Check the file and image attached. Does the FPGA being programmed properly?

    Best Regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

Rahul92's avatar
Rahul92
Icon for New Contributor rankNew Contributor
3 years ago

Hi Sheng,

Thanks for the files and the screenshot. I did another run and I see the instance now just like your picture.

But, I do have a question. Is it normal to have "Instance ID" as None, even though I give the name as "CM33" while configuring the ROM IP ? I was expecting CM33 as Instance ID instead of None.

Best regards,

Rahul

ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
3 years ago

Hi,

FYI. Please stick with the workaround below in the mean time:

  1. Go to <Quartus_installed_directory>\ip\altera\sld\jtag\intel_mce\intel_mce_hw.tcl
  2. Change NODE_NAME type from NATURAL to STRING like the following: add_parameter NODE_NAME STRING 0
  3. Regenerate related IP and program.

Thanks,
Best regards,
Sheng
