liyana
New Contributor
New ContributorI having problem with University Program VWF.
I can run the functional simulation waveform but the output is always 0000. How can I fix that? I use Quartus II 18.1 version.
Forum Discussion
4 Replies
SyafieqSSuper Contributor
Do you mind to post some snippet and of the code and tb?

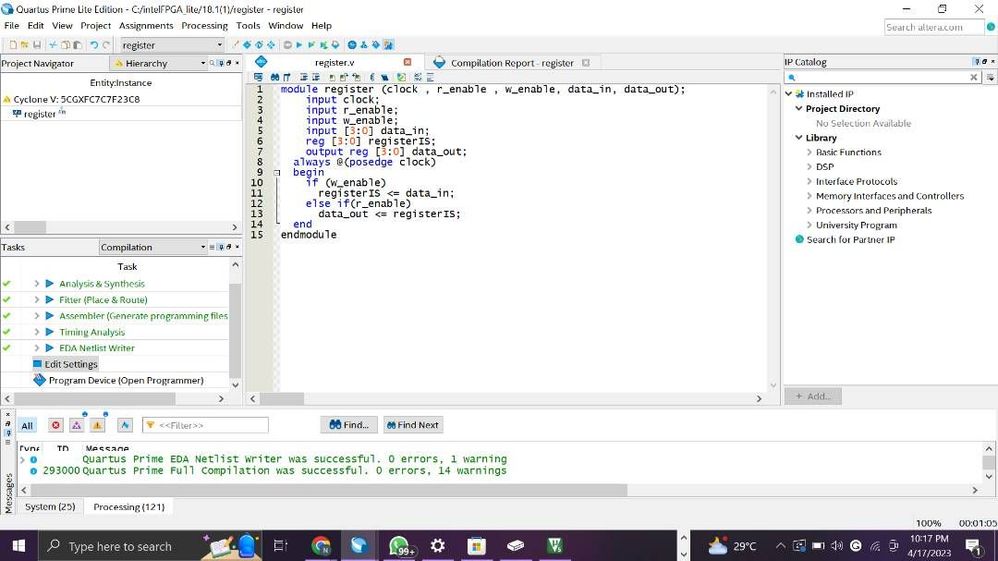

liyanaThis is the code that I use:
module register (clock , r_enable , w_enable, data_in, data_out);
input clock;
input r_enable;
input w_enable;
input [3:0] data_in;
reg [3:0] registerIS;
output reg [3:0] data_out;
always @(posedge clock)
begin
if (w_enable)
registerIS <= data_in;
else if(r_enable)
data_out <= registerIS;
end
endmodule
- SyafieqS
Hello,
The problem with your code appears to be that you are not setting the output data_out otherwise; instead, you are only assigning a value to it when the r_enable input is high. The output data_out will thus keep its prior value, which in this case is uninitialized, resulting in 0000 output when the r_enable input is low.
The current value of registerIS can be assigned to data_out when r_enable is low by adding an else statement to your always block to address this problem. This will guarantee that, even when r_enable is low, data_out always represents the current value of registerIS.
Changes:
module register (clock, r_enable, w_enable, data_in, data_out);
input clock;
input r_enable;
input w_enable;
input [3:0] data_in;
reg [3:0] registerIS;
output reg [3:0] data_out;
always @(posedge clock) begin
if (w_enable) begin
registerIS <= data_in;
end
else if (r_enable) begin
data_out <= registerIS;
end
else begin
data_out <= data_out;
end
end
endmodule
- SyafieqS
Let me know if there is any update or concern at your end.
