How to disable SignalTap instance?

I have a "SignalTap.stp" file which contains many signaltap instances as follows picture which contain two signaltap instances.

I only want to disable the first signaltap instance.

Could someone please tell me how do that? Thank you very much.

  • sstrell's avatar
    sstrell
    4 years ago

    No there should be checkboxes in the Instance Manager at the top. Maybe that's a Pro edition only feature because I have it. Try right-clicking an instance to see if there is an option to disable an instance that way.

8 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    Disable as in remove the Signal Tap hardware for just instance 1 when you recompile the design? There's an "Enabled" checkbox in the Instance Manager in the .stp file to disable individual instances.

    • NuvKFC's avatar
      NuvKFC
      Icon for Contributor rankContributor
      4 years ago

      Hi sstrell

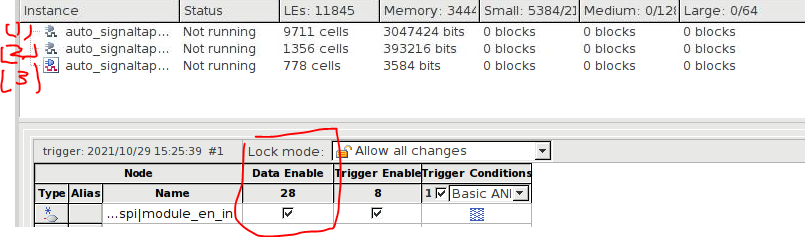

      Thank you, sstrell, very much. Does the "Enabled" checkbox, you mean is as follows picture?

      I think that it only can disable signals that users don't want to see in the Signaltap. Am I right?

      Or it also can disable whole instance?

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        4 years ago

        No there should be checkboxes in the Instance Manager at the top. Maybe that's a Pro edition only feature because I have it. Try right-clicking an instance to see if there is an option to disable an instance that way.

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    May I know which Quartus version are you using? Quartus Standard also has the Enabled check box in the Instance Manager.

    • NuvKFC's avatar
      NuvKFC
      Icon for Contributor rankContributor
      4 years ago

      Hi RichardTanSY_Intel

      Thank you, RichardTanSY_Intel, very much. I'm using the "Quartus13.1 full version". Does it's too old? Thank you very much.

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        4 years ago

        That's 8 years old. The option may not have been available back then.
