Forum Discussion
kk4488899
New Contributor
1 year agohow can I solve this error?

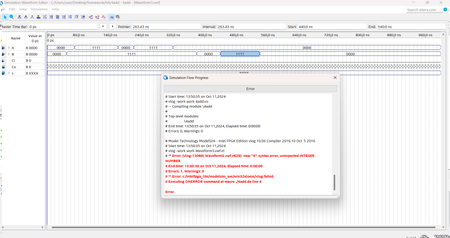

# ** Error: (vlog-13069) Waveform3.vwf.vt(29): near "4": syntax error, unexpected INTEGER NUMBER. # End time: 13:50:35 on Oct 11,2024, Elapsed time: 0:00:00 # Errors: 1, Warnings: 0 # ** Error: c:...
TingJiangT_Intel
Contributor
1 year agoTry using devices such as Arria II GX, Arria II GZ, Cyclone IV E, Cyclone IV GX, MAX II, MAX V, and Stratix IV, then set the Target device to 'Auto device selected by the Fitter'. Afterward, recompile and recreate the .vwf file. In the Simulation Waveform Editor, navigate to Simulation > Simulation Settings, remove the '-novopt' option, and save the changes.
