Global clock control assignment for Arria10

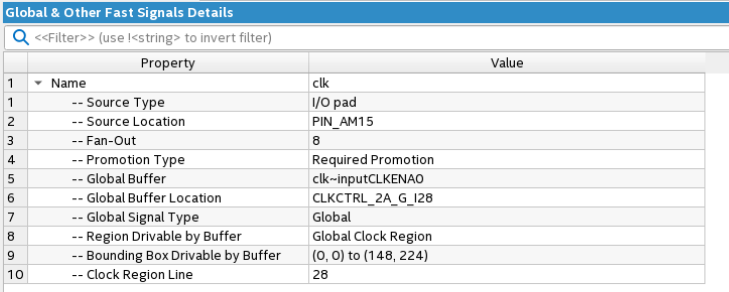

Pictures showing the results with not supported GLOBAL_SIGNAL_CLKCTRL_LOCATION

and the one with attempt using location, not taken into account.

To force Quartus to use a global clk control close to the area where it is critical.

I used it in many FPGA's and projects to get better or consistent timings over runs.

So just using the "Global Signal" assignment is insufficient? Is the Fitter choosing strange locations for the clock control block?

Hi,

You can use the "GLOBAL_SIGNAL" setting: https://www.intel.com/content/www/us/en/docs/programmable/683296/22-1/fitterassignmentsglobalsignal.html

Regards,

Nurina

I already use the global_signal to use the global clock routing.

This is on top of that, for the clk control selection that connects the node to the global switch.

Hi,

Make sure you're assigning it to the correct clock buffer node name. For example, this clock buffer node ends with "~CLKENA0"

I've tried it from my end and it is working.

More info here: https://community.intel.com/t5/FPGA-Wiki/Arria-10-clock-buffer-placement/ta-p/735796

Regards,

Nurina

Thank You Nurina,

That works great!
