Internal FPGA block RAM is synchronous, using a clock. If your code doesn't register at least frameBufferReadIndex, it can't infer RAM. Best to follow RAM code template in Quartus.
For maximum memory size, you also need to look at RAM block organization. RAM capacity of EP4CE6 is 30k x 9bit, thus you can't implement more than 30k 4-bit array elements.
- SparkyNZ1 year ago
Contributor

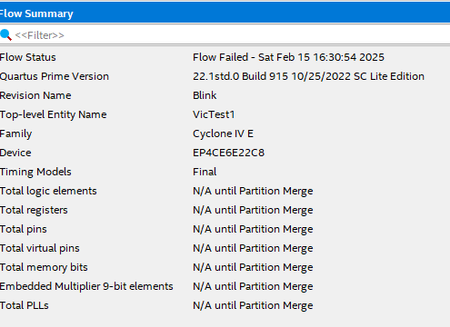

I don't understand this at all. Using the same frameBuffer definition, I made my top level module fill the frame buffer with values as a test. The entire screen was filled with colour as I expected. In fact, I used to have frameBuffer defined like this:
bit[3:0] frameBuffer[33792];This worked perfectly fine. I had an entirely working screen - and that was 4bits.
I have a 3-bit frameBuffer now (as shown in the original post) and even reducing this to 16k results in the same problem:
bit[2:0] frameBuffer[16384];If your code doesn't register at least frameBufferReadIndex, it can't infer RAM. Best to follow RAM code template in Quartus.
I don't understand what you are saying, sorry. What do you mean by "code doesn't register"? Is there something wrong with the below definition?
bit[16:0] frameBufferReadIndex;Why did it work before I changed my logic around? I really don't understand why a design can work fine for ages and then it won't compile when some things are reorganised. I have had a frame buffer like this in other projects too. Maybe I have had that "Info (276007): RAM logic "frameBuffer" is uninferred due to asynchronous read logic" warning all along but it has still worked?
Update: I just checked the compiler output for the previous version that works. It has this to say about frameBuffer instead:
Warning (276027): Inferred dual-clock RAM node "frameBuffer_rtl_0" from synchronous design logic. The read-during-write behavior of a dual-clock RAM is undefined and may not match the behavior of the original design.Just a bit of additional info - I have frameBuffer being read by a 25MHz VGA clock. At various times, it will be written to using a 28MHz clock. I was worried about this from the start and I originally tried using the same 28MHz clock for VGA but that wouldn't work. So is there now an issue with async read and write because the logic has changed - and therefore the timing? I'm not sure how to get around this. Was I just lucky when it worked and generated the above warning? Why is it not inferring a dual-clock RAM node this time around?
Can I force usage of a dual-clock RAM node somehow?
Is it simply a matter of making a module as described here: https://www.intel.com/content/www/us/en/docs/programmable/683082/22-1/simple-dual-port-dual-clock-synchronous-ram.html ?
