Cannot run the simulation of the Avalon-MM Hard Ip+ for PCI Express Example Design.

Hi,

i generated the example design of the Avalon-MM Hard Ip+ for PCI Express succesfully. I'm trying to run the simulation but i'm confused about it. I'm following the steps on page 15 of the Avalon® Memory Mapped (Avalon-MM) Intel® Stratix® 10 Hard IP+ for PCI Express* Solutions User Guide.

I opened ModelSim- Intel FGPA Started Edition 2019.2 and i changed the working directory to ../<project>/avmm_bridge_512_0_example_design/pcie_ed_tb/pcie_ed_tb/sim/mentor.

Once inside, i run the command:

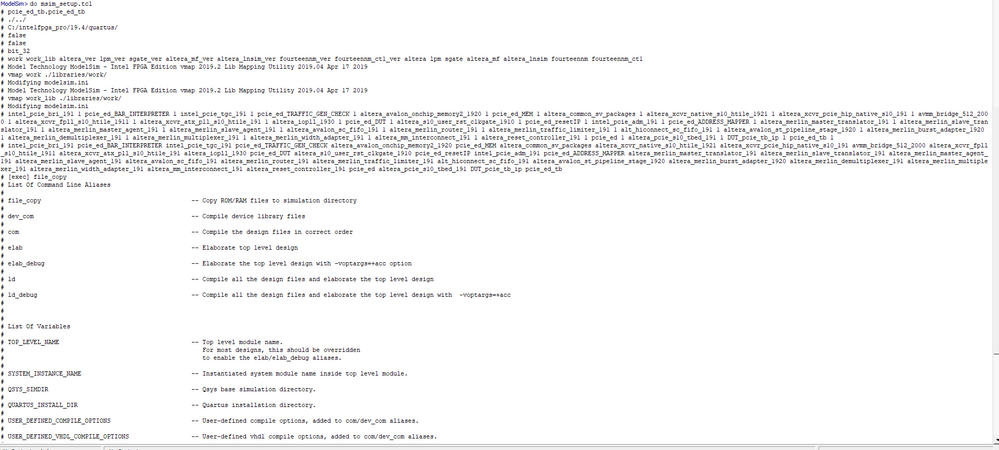

do msim_setup.tcl

After executing the script nothing happens. Please can anybody help me?

2 Replies

  • Rahul_S_Intel1's avatar
    Rahul_S_Intel1
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi ,

    May I get the OPN and PCI specification you are planning to simulate.

    If you can send me the sample project /Example design, that will be easy to look on.
