I have few questions. 1. I generated a .pfg file from the GUI * How can I generate the command line from it? * How can I see the command quartus runs? I'd like to keep only the command line instead of the hard-coded file. 2. How can I generate the .pof file from Quartus via TCL? 3. The file is pretty big (256MB for a CFI_2Gb), is there a builtin and native way to compress it (and uncompressed automatically by quartus_pgm)? Simply by using gzip, the file is reduced to 1.8MB from 256MB... Agilex I-series devkit A0, Quartus Prime Pro 22.2, Linux Thanks.

Hello, There is compression option when you generate the programming file. link : https://www.intel.com/content/www/us/en/docs/programmable/683039/21-3/compression-and-encryption-settings.htmlregards,Farabi

Please read again my questions.Your reply answers none.

Hi,I am checking this internally.For TCL scripting, kindly refer here, https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/manual/tclscriptrefmnl.pdfFarabi has share with you the link on how to compress when generation programming file, why is that not answering your question? Please clarify.Regards,Aiman

Aiman, 1. Thank you, looking forward to your reply 2. Your link is a 10 years old pdf, please provide the name, version and release of a document instead of a link that is gonna be broken. Also, I didn't find the way of doing it from TCL (Xilinx/AMD's workflow), only from a shell. 3. All my questions are related to a POF file, not a SOF file. Compressing the SOF file doesn't compress the POF file generated with quartus_pfg. Regards,

Hi,Kindly refer below for your 1st question;https://www.intel.com/content/www/us/en/docs/programmable/683039/21-3/quartus-pfg-command-line-tool.html2.https://www.intel.com/programmable/technical-pdfs/654662.pdf (page 48) -Link to TCL scripting3.You can compressed the .pof by using convert programming file in quartus. Please refer picture attached.Regards,Aiman

Best practice to generate and compress a pof file?

13 Replies

Farabi
Regular Contributor
3 years ago
Hello,

There is compression option when you generate the programming file.
link : https://www.intel.com/content/www/us/en/docs/programmable/683039/21-3/compression-and-encryption-settings.html

regards,
Farabi
- alexislms
  Contributor
  3 years ago
  Please read again my questions.
  Your reply answers none.
NurAiman_M_Intel
Super Contributor
3 years ago
Hi,

I am checking this internally.
For TCL scripting, kindly refer here, https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/manual/tclscriptrefmnl.pdf
Farabi has share with you the link on how to compress when generation programming file, why is that not answering your question? Please clarify.
Regards,
Aiman
- alexislms
  Contributor
  3 years ago
  Aiman,

  1. Thank you, looking forward to your reply

  2. Your link is a 10 years old pdf, please provide the name, version and release of a document instead of a link that is gonna be broken.

  Also, I didn't find the way of doing it from TCL (Xilinx/AMD's workflow), only from a shell.

  3. All my questions are related to a POF file, not a SOF file. Compressing the SOF file doesn't compress the POF file generated with quartus_pfg.

  Regards,
NurAiman_M_Intel
Super Contributor
3 years ago
Hi,

Kindly refer below for your 1st question;
https://www.intel.com/content/www/us/en/docs/programmable/683039/21-3/quartus-pfg-command-line-tool.html

2.https://www.intel.com/programmable/technical-pdfs/654662.pdf (page 48) -Link to TCL scripting

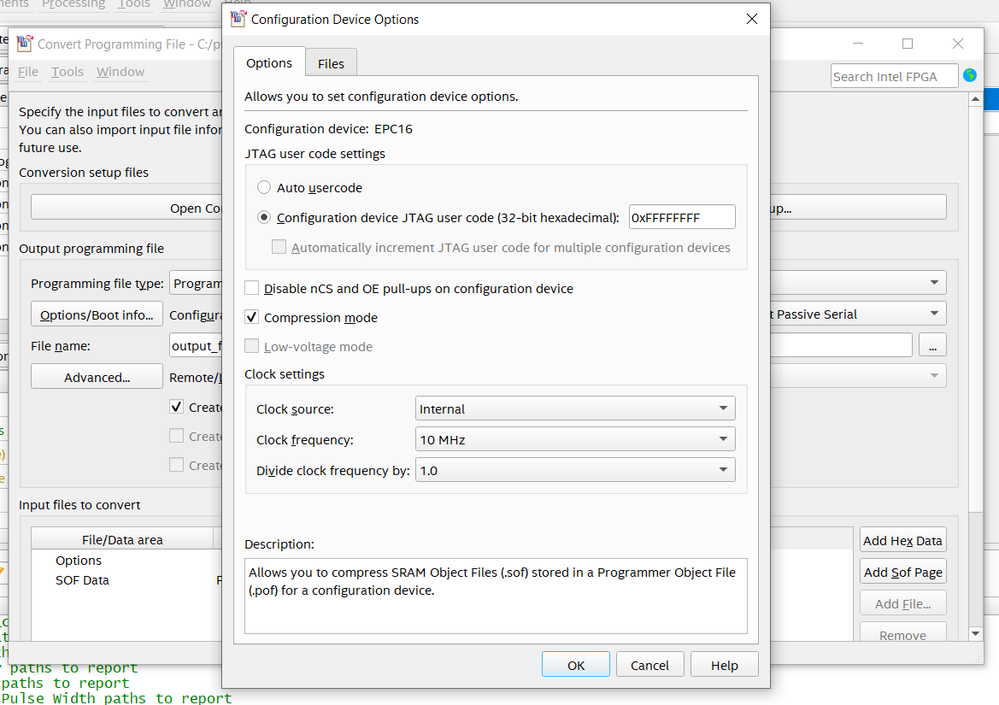

3.You can compressed the .pof by using convert programming file in quartus. Please refer picture attached.

Regards,
Aiman
- NurAiman_M_Intel
  Super Contributor
  3 years ago
  - alexislms
    Contributor
    3 years ago
    I can't use the Convert Programming file.

    Error(20687): Convert Programming Files does not support the target device agib027r29a1e2vr0. Please use Programming File Generator to generate the programming file for the target device.

    How can I enable pof compression with quartus_pfg not quartus_cpf?
- alexislms
  Contributor
  3 years ago
  And you don't seem to know what TCL is.

  https://www.intel.com/content/www/us/en/docs/programmable/683432/22-3/tcl_pkg_pfg_ver_1-0.html

  There is only a single command which is "test"...
NurAiman_M_Intel
Super Contributor
3 years ago
Hi,

Sorry about that. For Agilex, you need to use programming file generator in quartus.
alexislms
Contributor
3 years ago
Thanks for the waste of time.

Coming back to my question?
NurAiman_M_Intel
Super Contributor
3 years ago
Hi,

For TCL,

The link you shared was correct, however
As I mention, you need to use quartus TCL package that was shared in below link
2.https://www.intel.com/programmable/technical-pdfs/654662.pdf (page 48) -Link to TCL scripting

This is how you can generate the file.
NurAiman_M_Intel
Super Contributor
3 years ago
Hi,

In Agilex userguide mention that

"To reduce configuration file size and support smaller memory sizes, and enable faster configuration, the Intel Quartus Prime software compresses the configuration data. All Intel Agilex devices compress the configuration bitstream. This feature is always enabled. "

Hence the file is already compressed. Except for .sof file, you can manually compress it in Quartus.

Regards,
Aiman
- alexislms
  Contributor
  3 years ago
  It's amazing what the user-guide mentions, but it isn't the case.

  Please read again my original question point 3.

  Maybe you can verify by yourself by taking an Agilex I-series example design and generate the pof file?!

  And then provide a fix for this always enabled non-working feature.
