New ContributorWhen i ran 'alt_signal_run' on Matlab 2016a, Matlab was forced to be shut down. I have add the installation path of Quartus bin in the system env. variables.
is there anyone who has experience to solve this
Dear BazingaWei,
What Quartus version do you use? Usually, Matlab is very sensitive when there is a different Q version:e.g. you should use Quartus 16
Regular ContributorHi,
As I understand it, you seems to observe some issue when you are running a command at Matlab. To ensure we are on the same page, just would like to check with you on the following:
1. Are you referring to DSP Builder when you mentioned Matlab 2016a?
2. If yes, what is the DSP Builder and Quartus version that you are using?
3. Would you mind to further elaborate on the detailed step-by-step that you are taking to replicate the observation? Some screenshots and test design will be helpful for further understanding.
4. What is the specific FPGA device that you are using?
Please let me know if there is any concern. Thank you.
Best regards,
Chee Pin
New ContributorThanks for your reply, to your questions:
1. I didn't use DSP-builder only Quartus. I just designed a module, when i used the SignalTap in Quartus to validate the design, i wanted to transmit the data sampled by SignalTap to Matlab, so that i could analyze statistic properties. I have tried several times:

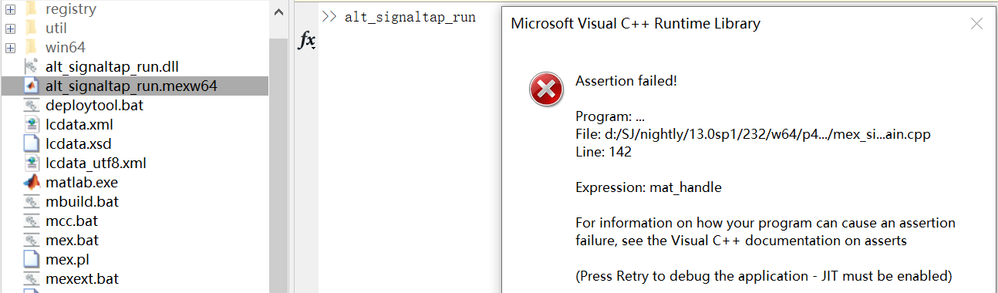

case1: i copied the 'alt_signaltap_run.mexw64' from Quartus installation path to Matlab\bin, and got the error (see. fig).

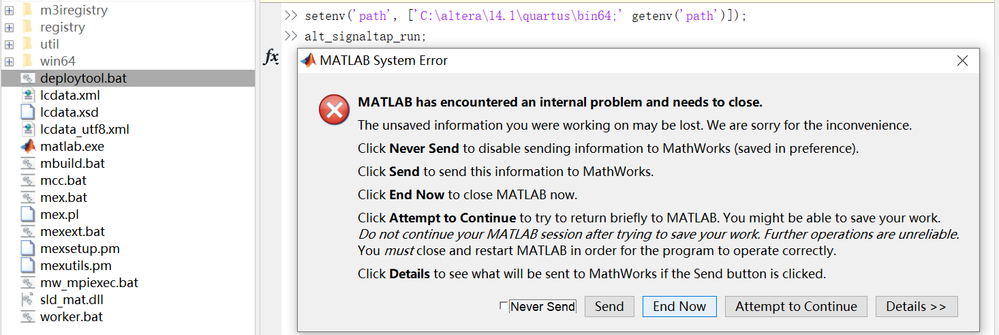

case2: i added the quartus installation path to Matlab before running the 'alt_signaltap_run', and got
the error below.
case3: add the Quartus\bin to the system env. variables path, some error occured.
2. I have installed only Quartus II 14.1. Ps: there is a folder called 'dsp-builder' in the Quartus installation path, it contains a few .v and .jar files, but i don't know if it is the DSP-Builder you mean and how to use it.
3. See figures.
4. i'm using Altera Cyclone IV.
Again, thanks a lot. Now i'm trying to transmit the data by UART, but if you know how to fix the error by using SignalTap in Matlab, i really appreciate.
Best Regards
Regular ContributorHi, Thanks for your update. As I understand it, you are trying to open data sampled by SignalTap in Matlab software and encounter issue. You are not using DSP Builder. Sorry as I am not sure if SignalTap output can be recognized by Matlab directly. Please allow me some time to check with our software team on this. If not, you might need to further consult Matlab if this is something feasible.
Regular ContributorHi,
As per my discussion with SW team, you may refer to the following KDB to see if it is helpful. Please let me know if there is any concern. Thank you.
New ContributorHi, CheePin_C_Intel,
sorry for late, i'm kind of busy with other stuff now. Thanks for your time and you discussion, but i don't know the KDB you refer to, also have no ideal where to find the 'following KDB' you suggested. If you don't mind, please make it clear, thanks.
Best Regard
New ContributorHi, did you ever resolve this issue? I am having a similar problem.
Thanks
Occasional ContributorDear BazingaWei,
What Quartus version do you use? Usually, Matlab is very sensitive when there is a different Q version:e.g. you should use Quartus 16
New ContributorHi, dsmirnov,
sorry for late reply and thanks for the suggestion. I'm using Quartus 14.1, i'll try your suggestion.
Best Regards
New Contributori tried with Quartus 16.1, it can work with Matlab 2016a, although the problem still rises sometimes, but it works at least. Thanks a lot.
Regular ContributorHi,
Sorry for the inconvenience. Please find the the KDB link as following:
New Contributorthanks a lot,
Matlab(2016a) can work with Quartus 16.1, although the problem still happens sometimes.
Best Regards
