Agilex 7 HPS how to read from port B of 2-port RAM

Hi,

I have used Quartus Prime Pro to design a component to write to port A of a 2-port RAM.

For port B, it is supposed to be connected to Agilex HPS h2f_axi_master, which will perform a read.

I saw that h2f_axi_master has a lot of signals.

As for port B of the 2-port RAM, it has

data_b

q_b

address_b

wren_b

byteena_b

I don't know which signal is supposed to be connected to which signal of h2f_axi_master.

Do you have the sample Quartus / Platform Designer project for such a desgin?

Hope to hear from you soon.

Regards

7 Replies

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor

    Hi,


    I am checking on the connections diagram.

    Please do allow some time to check.


    Regards

    Tiwari


    • nelky's avatar
      nelky
      Icon for Occasional Contributor rankOccasional Contributor

      Hi Tiwari,

      Thanks for coming back.

      I have changed to use on-Chip Memory II (RAM or ROM) Intel FPGA IP. Can you help me to check its connection to the HPS' h2f_axi_master?

      The pins on the on-chip memory's sides are

      address2

      read2

      readdata2

      byteenable2

      write2

      writedata2

      address2, readdata2 and writedata2 can be connected to h2f_ARADDR, h2f_RDATA and h2f_WDATA respectively.

      But I really don't know read2, write2, byteenable2 are connected to which pin of h2f_axi_master.

      Please help.

      Regards

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    Why are you trying to connect individual signals? Just add the RAM as a component in Platform Designer and connect it to the h2f interface.

    • nelky's avatar
      nelky
      Icon for Occasional Contributor rankOccasional Contributor

      Hi sstrell,

      Thanks for coming back to me.

      I did not connect individual signals.

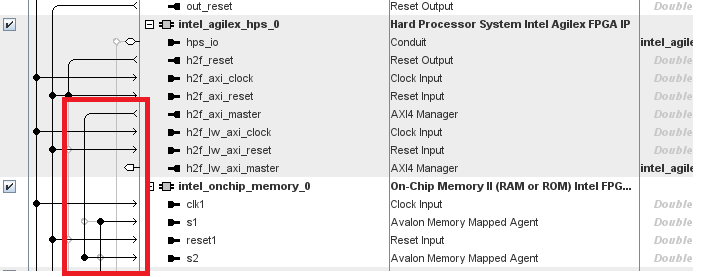

      Below shows my connection between my HPS' h2f_axi_master and on-chip memory II's s2. There is no problem with it.

      The problem comes when you write the code.

      If you open up the on-chip memory II, you will see these signals,

      When you do the coding and if you want to, say read, you need to provide read2 signal with a high signal and also you byteenable2 signanls with high (depending which byte you want to read) before you can, actually, read.

      read2 <= '1';

      byteenable <= "1111"; -- assuming I wan to read all the 4 bytes

      address2 <= "00 0000 0000 0000 1111"; -- assuming I want to read address 0x000F

      readbuff <= readdata2; -- assuming readbuff is declared as signal readbuff : std_logic_vector (31 downto 0)

      As you can see here, byteenable and read2 needs to be controlled by some pins at HPS's side.

      So, which pins of HPS are controlling these byteenable and read2?

      Regards

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor

        I don't understand. You're using the HPS so you should be using higher-level code (like C using the macros created when you generate the Platform Designer system) to access the RAM. Where are you still writing HDL code for this?

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor

    Hi Nelky,


    Yes, you need to use the c code to access the OCM/RAM from the HPS side.

    For this there is no need to write the HDL code.

    HDL code is needed only when there is no connection between the HPS and FPGA fabric IPs.


    Also thanks to Sstrell for replying in this thread.


    Regards

    Tiwari
