Using ModelSim in Eclipse

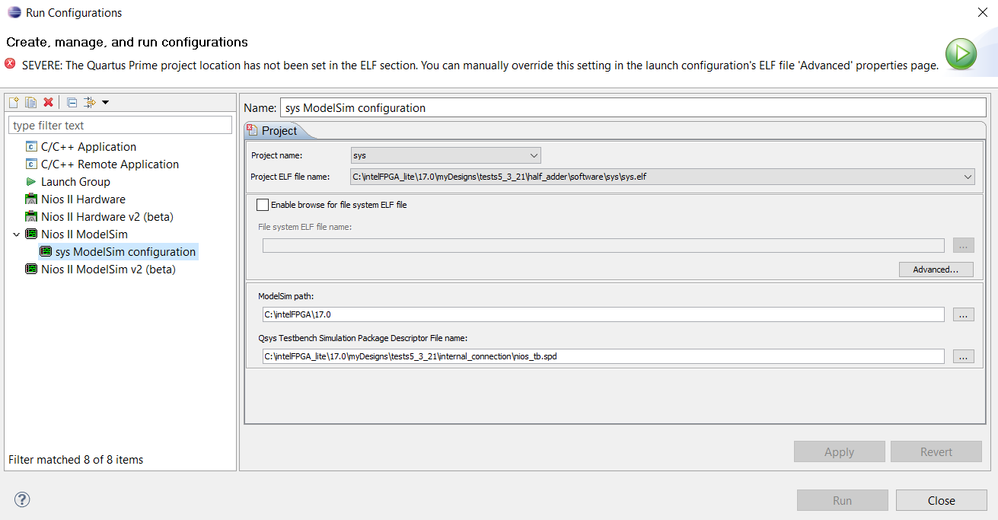

Hi all, I've been having trouble running my Eclipse systems as Nios II ModelSim. Running as Nios II hardware is okay for me. I am using the same .elf file that was working with the hardware simulation. Here are my run configurations, I'm not too sure where my error is:

2 Replies

    • rlutch's avatar
      rlutch
      Icon for New Contributor rankNew Contributor
      5 years ago

      Thanks for the reply, however following those steps is what gave me the window in the post. I actually figured it out since posting, I'll leave the solution here if anyone else is having the same problem. You have to select the appropriate path for modelsim, for me this was: C:\intelFPGA_lite\17.0\modelsim_ase\win32aloem

      Then you have to click 'advanced' and specify the working directory for your quartus project, then click apply and run
