hii i have the max 10 neek dev board and i would like to run the socket-server in the demonstration folder - the dev board comes with a cd which has all types of examples i followed the link below : https://www.youtube.com/watch?v=CAY2NSB0XEw the project is as i said from the : MAX10_NEEK_v.1.0.7_SystemCD so it suppose to work , but some how when i open nios 2 , i can see that there are 2 error ,and when i go to the problem tab to see what is the error , i don't see what the error is : i attached the file from the nios , i be glad for any help .

Hi @aiedb , Try to delete existing .h and .c files in socket_server folder. Then go back to Eclipse and right-click to refresh. Next, right-click the Makefile -> Import -> General -> File System -> Next -> Browse to software folder -> Tick .h and .c files to include -> Finish. Last, rebuild the project. If the error still not being resolved, create a new Nios II Application and BSP from Template with: SOPC: max10_qsys.sopcinfo Template: Simple Socket Server After creating new project, follow the four steps mentioned above will do. **One more step: Right-click project -> Nios II -> BSP Editor... -> sys_clk_time: sys_timer -> Generate -> Exit -> No, Don't Save Best regards, Sheng p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

hii i tried the first option i deleted the files and when i tried to add them , by the 4 step process you described i didn't manage to add the . i got stuck in this window(see the picture attached ) , and there is no next or finish tab, how can i add the .c .h files back to the project ??? thanks for your help

Hi @aiedb , I think you're over browse. Browse until ..\socket_server_4\software will be enough and tick the following files: alt_error_handler.c alt_error_handler.h iniche_init.c led.c network_utilities.c network_utilities.h simple_socket_server.c simple_socket_server.h tse_my_system.c Best regards, Sheng p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

hii thanks for your quick reply i tried the first option it didn't work for me , so i created a new nios project from template , and deleted .c.h files , and added them again i built the project and i see an error that altera_msgdma.h is not defined and indeed , when i look at the included files in the drivers folder of the bsp , i can see that the include file has a different names , for example altera_msgdma.h is named altera_avalon_msgdma.h ( i attached the picture ) , plus i see "altera_msgdma_prefetcher_regs.h" that is included in ins_tse_mac.h , and when i look at drivers folder of the bsp , i don't see any file that is related to it .even with a different name how can i advance from here to clean the error and build the project .

Hi @aiedb , I know your problem now. That example project is created using the old Quartus II 15.0 and the related Eclipse is eclipse KEPLER check image: I'm able to build the project with the steps mentioned using eclipse KEPLER. For old version Quartus, Eclipse IDE is built inside the software so not need to download and install separately. Best regards, Sheng p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

simple socket sever-max 10 neek | Altera Community

24 Replies

ShengN_altera
Super Contributor
3 years ago
Hi @aiedb ,

Any further update? Does the more updated example design working well?

Thanks,

Best regards,

Sheng
- aiedb
  Occasional Contributor
  3 years ago
  hii ,good morning

  i downloaded the example , and i restored the archived project

  and i don't see that there are output folder which have sof file of the project .

  so i opened the system in qsys in order to compile the project , to produce sof file , but somehow the qsys gets stuck while opening the system , and i am not able to compile the project .

  i tried restarting my my pc and restarting quartus without any success unfortunately.

  i think my best chance if you have a project that works , even the demonstration project of max10 neek , if you can zip it and upload it to gethub or onedrive and send me a link so i can download it into my pc ,and try it out

  thanks for your kind help
ShengN_altera
Super Contributor
3 years ago
Hi @aiedb ,

The sof file is in the master_image folder. I attahced the .sof file and .sopcinfo files below. The rest you just follow the steps in this document https://www.intel.com/content/dam/support/us/en/programmable/support-resources/fpga-wiki/asset03/simple-socket-ethernet.pdf will do. Make sure eclipse KEPLER is used to create the bsp software files.

Thanks,

Best regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.
sof_sopcinfo.zip519 KB
ShengN_altera
Super Contributor
3 years ago
Hi @aiedb ,

Any further update or consideration on this thread?

Thanks,

Best Regards,

Sheng
- aiedb
  Occasional Contributor
  3 years ago
  hii good morning , unfortunately i give every thing that i had , and i didn't manage with it .

  if you have a working version, could you please zip the entire project folder ,as it is not a qar file ?

  and send me a link to zip file , so i can unzip and try it out on the max10 neek eval board that i have
ShengN_altera
Super Contributor
3 years ago
Hi @aiedb ,

I had tested the MAX10_NEEK_v.1.0.7_SystemCD socket server design on MAX 10 NEEK board (image):

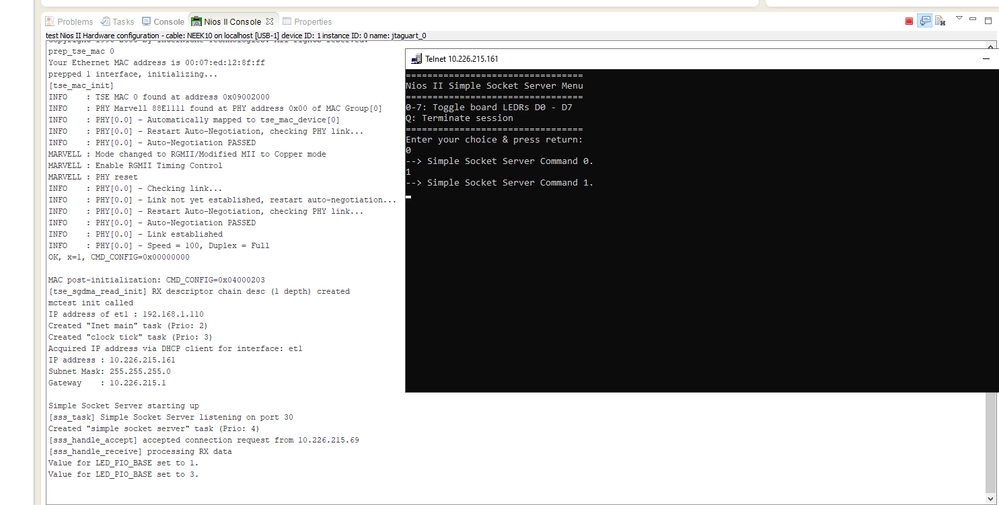

and worked as expected (image):

File attached below. One more concern will be are you using Altera USB-Blaster II for programming?

Make sure also Ethernet cable is connected.

Also when Auto Detect, make sure you're choosing 10M50DAES.

As for Design Store socket server design, you have to use this MAX 10 board (image):

Thanks,

Best Regards,

Sheng

p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.
sss.zip6.4 MB
