No Nios II target connection

Hi,

I'm trying to get the Hello World Nios II example to run on an Cyclone 10 GX. The design build and the sof-programming run without a problem. But the Nios II Eclipse can't find the Nios as target connection.

In the "Run Configuration" dialog it shows:

No Nios II target connection paths were located. Check connections and that a Nios II .sof is downloaded.

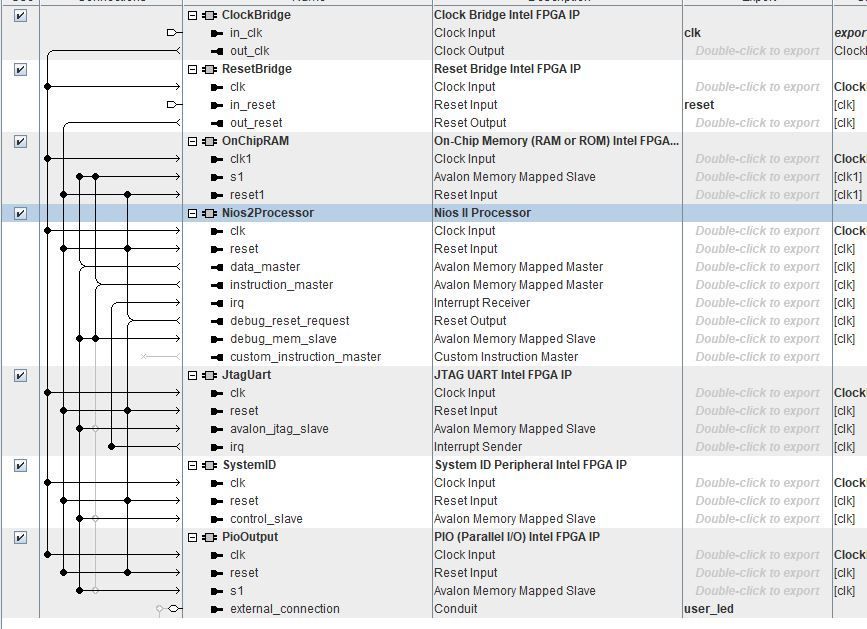

The Nios II system is pretty basic:

with the following settings:

  • Clk Input is 100 MHz (50 Mhz doesn't work neither)
  • Reset Input is active high
  • Nios II:
    • Nios II/e
    • Reset/Exception vector memory: OnChipRAM.s1
    • Include JTAG Debug
    • The rest is unchanged
  • OnChipRAM:
    • Type: RAM
    • Block type: Auto
    • Size: 200000 bytes
    • The rest is unchanged
  • The other components (JtagUart / SystemID / PioOutput) have the default settings

And I've checked, that the Nios Core is part of the design (using the Technology Map Viewer of the final snapshot).

Can you please give me a hint what I'm doing wrong?

Thanks

10 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Before "run as hardware" you should configure the fpga with the .sof file generated

    If you get a popup saying "no Nios II target connection paths were located", go under the Target connection tab, click refresh connections.

    Have you download the correct .sof ?

    Have you selected correct sopcinfo file while creating the eclipse project?

    Check pin assignments of clk and reset?

    Regards

    Anand

    • MHahn4's avatar
      MHahn4
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi,

      Yes, the correct .sof file is downloaded to the FPGA and runs.

      Yes, it is the correct sopcinfo file.

      Clk (100Mhz) and Reset (high active) are correctly connected and are working.

      The Target connection tab shows no target even after multiple refreshes.

      I've set the following clock constraints:

      create_clock -name {CLK_100MHz} -period 10.000 -waveform { 0.000 5.000 } [get_ports {CLK_100MHz}]
derive_pll_clocks

create_clock -period "30.303 ns" -name {altera_reserved_tck} {altera_reserved_tck}

      The altera_reserved_tck constraint is based on this Knowledge Base article.

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Michael,

    Click on the checkbox "Ignore mismatched timestamp" and "Ignore mismatched system ID"

    and click refresh connections.

    Regards

    Anand

    • MHahn4's avatar
      MHahn4
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi,

      That doesn't work neither.

      But I had it shown up for once as a target connection (without changing anything) this morning, and after that the problem came back ...

  • MHahn4's avatar
    MHahn4
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    Based on this documentation, a jtagconfig -n should output something like

    $ jtagconfig -n
1)
               Intel® FPGA Download Cable [USB-0]
020050DD EP1S40/_HARDCOPY_FPGA_PROTOTYPE
Node 11104600
Node 0C006E00

    But mine outputs no nodes:

    could this be the reason? And how to solve this?

    • anonimcs's avatar
      anonimcs
      Icon for Contributor rankContributor
      1 year ago

      Hi,

      I'm having the same issue with my Cyclone 10 FPGA on Ubuntu 20.04 and tried everything @AnandRaj_S_Intel suggested. I also tried running the nios2_command_shell script and then ran 'nios2-terminal', which couldn't run due to the lack of detected devices. But when I run jtagconfig, I can see my blaster connected and also the Cyclone under it, just like the snippet above.

      Cheers

      • alifzakuan_altera's avatar
        alifzakuan_altera
        Icon for New Contributor rankNew Contributor
        1 year ago

        Hi anonimcs,

        Can you share the error log output when you run nios2-terminal command? I suspect the Nios II processor isn’t present in the loaded .sof, or its debug interface isn’t correctly configured.

        Thanks,

        Alif

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Michael,

    Regarding Jtagconfig -n.

    1. Your image does not contain a Nios II processor with a JTAG debug module enabled or JTAG UART component.
    2. Load image with Nios II processor with a JTAG debug module enabled

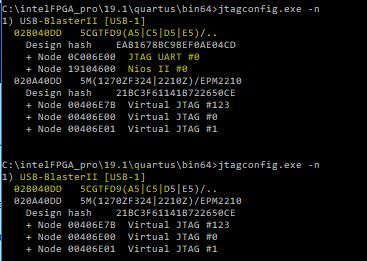

    For example, check the image

    Are you using a cyclone 10 GX dev kit? IF yes please try to load the factory image.

    Regards

    Anand

  • BoonBengT_Altera's avatar
    BoonBengT_Altera
    Icon for Moderator rankModerator
    7 months ago

    Dear anonimcs​,



    Since clarification has been provided and no further follow‑up questions have been raised, we will assume the issue has been resolved.

    This thread will now be transitioned to community support, where other users can continue to assist with any additional inquiries.

    For new questions, please feel free to open a fresh thread — we’ll be happy to support you there.



    Thank you for being part of the community!



    Best regards,

    Altera Technical Support
