NIOS II Memory Initialization File Depth

Hello, I have software written in C in Nios II to be combined with some hardware design done in Quartus. I generated a memory initialization file (.hex) through the "Make Targets" tool in my Nios project, and then combined it with the .sof file I generated through compilation in Quartus using the "Convert Programming Files" tool. When I do this, however, I get a critical warning message (ID: 18094) in the prompt window saying that the memory initialization file I created has a depth less than that of flash memory. Is this saying that the software I wrote is too large? Is the flash memory depth adjustable or is this a physical limit I reached on my device? Thanks in advance for the help.

Embedded Applications Layer

6 Replies

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    Can you get me the full screenshot of the error?


    Also, you can screenshot the On Chip RAM IP settings in Platform Designer for me to check.


  • Devin2's avatar
    Devin2
    Icon for New Contributor rankNew Contributor
    2 years ago

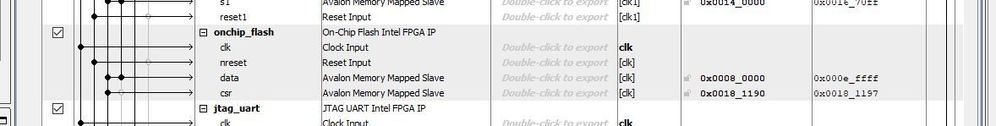

    I've attached the requested screenshots. The error message may be tough to read in the photos, it says "18094 Memory depth (122464) in the Memory Initialization file 'C:/Users/ removed for privacy purposes /mem_init/onchip_flash.hex' is less than the flash memory depth (45872). Make sure the Memory Initialization File contains the sufficient memory depth values for the flash memory." Also, in the platform designer screenshot there are a few more fields when you scroll to the right but they are all empty for the onchip_flash IP.

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    I think you need to increase your OCRAM size in the IP settings in the "Total Memory Size" tab. Try that and recompile.


  • Devin2's avatar
    Devin2
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hello,

    Yes, I no longer get the error message when I recompile so this seems to have worked. Thank you for your help.
