Hi
1) Is there option to define which VREF the FPGA use ? (interal FPGA vref or external IO pin )
If yes - where should I define it in the Quartus
2)Do all the banks should get same vref ?
3)How can I make same vref value when I transfer SERDES data from FPGA to other ( each FPGA locate in other board)
Yishay
8 Replies
AminT_IntelRegular Contributor
Hello,
May I know which FPGA are you using?
Thank you.
ymilerHi
DEVICE 1SG10MHN3F74C2LG_U1
FAMILY "Stratix 10"
- AminT_Intel
Hello Yishay,
Hope you are doing well. You can define Vref by using Pin Planner in your Quartus. There is an external VREF pin for every I/O bank, providing one external VREF source for all I/Os in the same bank. You can refer to page 40 from Stratix 10 GPIO User Guide
Additional documents that you can refer to is as below:
1. Intel Stratix 10 Device Datasheet
Thank you.
- ymiler
Hi
Thank you for your answer ,

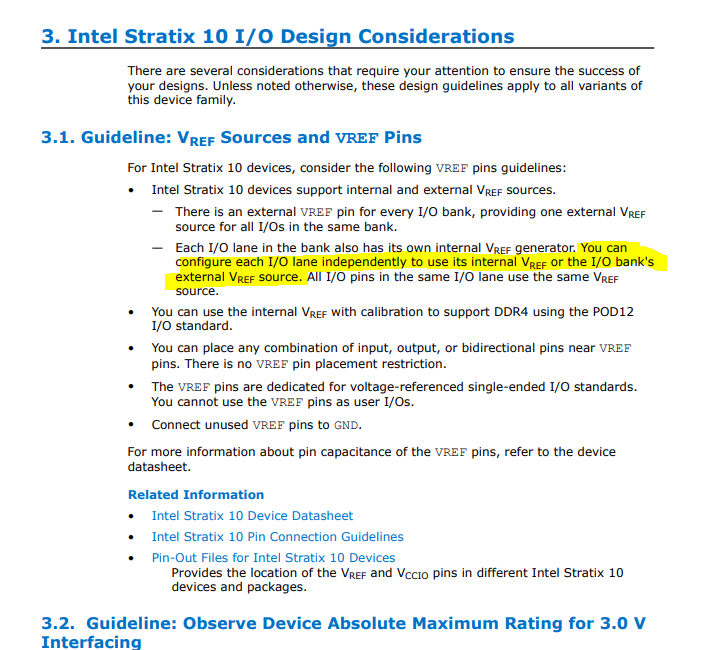

According to the DS there is option to choose which VREF to use , internal or exteranal
Attached screenshot :

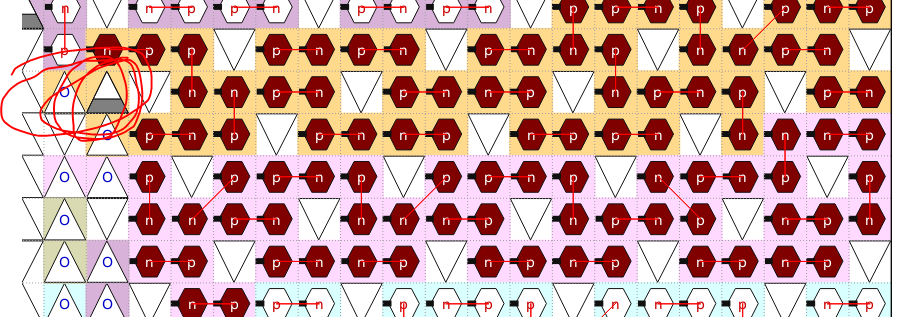

But , I dont find any option choose it in the Pin Planner :
Please advise
Yishay
- AminT_Intel
Hi,
Which version of Quartus are you using?
Thanks
