Transceiver data corruption

I am trying to externally loopback a simple data-stream using the GTS on the Agilex 5, over an external QSFP loopback module.

The GTS is configured as followed:

External clock chip:

• Outputs 156.25 MHz clock verified using an oscilloscope.

System PLL:

• Outputs 125 MHz to the GTS.

GTS:

• Basic PMA Direct
• System PLL freq: 125 MHz
• PMA speed: 1250 Mbps
• PMA width: 10
• TX/RX PLL/CDR: 156.25 MHz
• TX/RX core interface FIFO: single width
• TX/RX clock: System PLL clock /1

The RTL used to transfer data over TX:

module top(
    input  CPU_RESET_n,
    input  REFCLK,
    output gts_o_tx_serial_data,
    output gts_o_tx_serial_data_n,
    input  gts_i_rx_serial_data,
    input  gts_i_rx_serial_data_n
);

// gts
logic gts_pma_cu_clk_i;
logic gts_tx_reset, gts_rx_reset;
logic gts_tx_reset_ack, gts_rx_reset_ack;
logic gts_tx_ready, gts_rx_ready;
logic tx_coreclkin, rx_coreclkin;
(* noprune *) logic gts_tx_clkout, gts_rx_clkout;
logic gts_rs_grant_i;
logic gts_rc_rs_req_o;
(* noprune *) logic gts_tx_pll_locked                 /* synthesis keep */;
(* noprune *) logic gts_rx_is_lockedtodata            /* synthesis keep */;
(* noprune *) logic gts_rx_is_lockedtoref             /* synthesis keep */;
logic o_refclk2core;
(* noprune *) logic  [79:0] gts_i_tx_parallel_data    /* synthesis keep */;
(* noprune *) logic  [79:0] gts_o_rx_parallel_data    /* synthesis keep */;
assign gts_pma_cu_clk_i = srcss_bank1_pma_cu_clk_o;
assign tx_coreclkin  = gts_tx_clkout;
assign rx_coreclkin  = gts_rx_clkout;
assign gts_rs_grant_i = srcss_bank1_rs_grant_o;

// reset sequencer signals
logic srcss_bank1_rs_grant_o;
logic srcss_bank1_rs_priority;
logic srcss_bank1_rc_rs_req;
logic srcss_bank1_pma_cu_clk_o;
assign srcss_bank1_rs_priority = '0;
assign srcss_bank1_rc_rs_req = gts_rc_rs_req_o;

// system pll signals
logic gts_systempll_refclk_rdy;
assign gts_systempll_refclk_rdy = 1'b1;

gts_top u0 (
      // gts
    .gts_top_clock_bridge_rx_in_clk_clk                              (QSFP_REFCLK_p),
    .gts_top_clock_bridge_tx_in_clk_clk                              (QSFP_REFCLK_p),
    .intel_directphy_gts_0_i_pma_cu_clk_clk                          (gts_pma_cu_clk_i),
    .intel_directphy_gts_0_i_tx_reset_tx_reset                       (gts_tx_reset),
    .intel_directphy_gts_0_i_rx_reset_rx_reset                       (gts_rx_reset),
    .intel_directphy_gts_0_o_tx_reset_ack_tx_reset_ack               (gts_tx_reset_ack),
    .intel_directphy_gts_0_o_rx_reset_ack_rx_reset_ack               (gts_rx_reset_ack),
    .intel_directphy_gts_0_o_tx_ready_tx_ready                       (gts_tx_ready),
    .intel_directphy_gts_0_o_rx_ready_rx_ready                       (gts_rx_ready),
    .intel_directphy_gts_0_i_tx_coreclkin_clk                        (tx_coreclkin),
    .intel_directphy_gts_0_i_rx_coreclkin_clk                        (rx_coreclkin),
    .intel_directphy_gts_0_o_tx_clkout_clk                           (gts_tx_clkout),
    .intel_directphy_gts_0_o_rx_clkout_clk                           (gts_rx_clkout),
    .intel_directphy_gts_0_i_src_rs_grant_src_rs_grant               (gts_rs_grant_i),
    .intel_directphy_gts_0_o_src_rs_req_src_rs_req                   (gts_rc_rs_req_o),
    .intel_directphy_gts_0_o_tx_serial_data_o_tx_serial_data         (gts_o_tx_serial_data),
    .intel_directphy_gts_0_o_tx_serial_data_n_o_tx_serial_data_n     (gts_o_tx_serial_data_n),
    .intel_directphy_gts_0_i_rx_serial_data_i_rx_serial_data         (gts_i_rx_serial_data),
    .intel_directphy_gts_0_i_rx_serial_data_n_i_rx_serial_data_n     (gts_i_rx_serial_data_n),
    .intel_directphy_gts_0_o_tx_pll_locked_o_tx_pll_locked           (gts_tx_pll_locked),
    .intel_directphy_gts_0_o_rx_is_lockedtodata_o_rx_is_lockedtodata (gts_rx_is_lockedtodata),
    .intel_directphy_gts_0_o_rx_is_lockedtoref_o_rx_is_lockedtoref   (gts_rx_is_lockedtoref),
    .intel_directphy_gts_0_o_refclk2core_o_refclk2core               (o_refclk2core),
    .intel_directphy_gts_0_i_tx_parallel_data_i_tx_parallel_data     (gts_i_tx_parallel_data),
    .intel_directphy_gts_0_o_rx_parallel_data_o_rx_parallel_data     (gts_o_rx_parallel_data),

    // reset sequencer signals
    .intel_srcss_gts_0_o_src_rs_grant_src_rs_grant                   (srcss_bank1_rs_grant_o),
    .intel_srcss_gts_0_i_src_rs_priority_src_rs_priority             (srcss_bank1_rs_priority),
    .intel_srcss_gts_0_i_src_rs_req_src_rs_req                       (srcss_bank1_rc_rs_req),
    .intel_srcss_gts_0_o_pma_cu_clk_clk                              (srcss_bank1_pma_cu_clk_o),

    // system pll signals
    .intel_systemclk_gts_0_i_refclk_rdy_data                         (gts_systempll_refclk_rdy)
);

// syncronise reset
logic gts_tx_system_reset;
altera_reset_synchronizer #(
    .ASYNC_RESET (1),
    .DEPTH       (2)
) gts_tx_rst_sync (
    .reset_in  (~CPU_RESET_n),
    .clk       (gts_tx_clkout),
    .reset_out (gts_tx_system_reset)
);

// generate test data stream
logic [7:0] counter;
logic [7:0] test_stream;
always_ff @(posedge gts_tx_clkout or posedge gts_tx_system_reset) begin
    if (gts_tx_system_reset) begin
        counter       <= 8'b0;
        test_stream   <= 8'b0;
    end else begin
        counter <= counter + 1;
        case (counter)
            8'd0: test_stream <= 8'h3C;
            8'd1: test_stream <= 8'h7F;
            8'd2: test_stream <= 8'h11;
            8'd3: test_stream <= 8'h07;
            default: test_stream <= 8'h00;
        endcase
    end
end

// detect and transform idle data, and mark control symbols
logic [7:0] idle_data_transform;
logic control_symbol_detect;
always_comb begin
    idle_data_transform = (test_stream == 8'h00) ? 8'hBC : test_stream;
    control_symbol_detect = (idle_data_transform == 8'h1C) ||
                (idle_data_transform == 8'h3C) ||
                (idle_data_transform == 8'h5C) ||
                (idle_data_transform == 8'h7C) ||
                (idle_data_transform == 8'h9C) ||
                (idle_data_transform == 8'hBC) ||
                (idle_data_transform == 8'hDC) ||
                (idle_data_transform == 8'hFC) ||
                (idle_data_transform == 8'hF7) ||
                (idle_data_transform == 8'hFB) ||
                (idle_data_transform == 8'hFD) ||
                (idle_data_transform == 8'hFE);
end

// pipline combinational logic to ensure timings are met
logic [7:0] idle_data_transform_r;
logic control_symbol_detect_r;
always_ff @ (posedge gts_tx_clkout or posedge gts_tx_system_reset) begin
    if(gts_tx_system_reset) begin
        idle_data_transform_r <= 8'b0;
        control_symbol_detect_r <= 1'b0;
    end else begin
        idle_data_transform_r <= idle_data_transform;
        control_symbol_detect_r <= control_symbol_detect;
    end
end

// --- 8b/10b Encoding ---
// https://libsv.readthedocs.io/en/latest/encoder_8b10b.html
logic [9:0] encoded_out;
logic       code_error;
encoder_tx encoder_inst (
    .i_clk      (gts_tx_clkout),
    .i_reset_n  (~gts_tx_system_reset),
    .i_en       (1'b1),
    .i_8b       (idle_data_transform_r),
    .i_ctrl     (control_symbol_detect_r),
    .o_10b      (encoded_out),
    .o_code_err (code_error)
);

// pipeline encoded outputs to ensure timing is met
logic [9:0] encoded_out_r;
always_ff @(posedge gts_tx_clkout or posedge gts_tx_system_reset) begin
      if (gts_tx_system_reset) encoded_out_r <= 10'b0;
      else encoded_out_r <= encoded_out;
end

// send data over TX
logic data_path_rdy_tx;
always_ff @(posedge gts_tx_clkout or posedge gts_tx_system_reset) begin
    if (gts_tx_system_reset) begin
      gts_i_tx_parallel_data <= 80'b0;
      data_path_rdy_tx       <= 0;
    end
    else begin
      data_path_rdy_tx  <= gts_tx_ready && gts_tx_pll_locked;
      case (data_path_rdy_tx)
            1: gts_i_tx_parallel_data <= {1'b1, 39'b0, 1'b0, 1'b1, 28'b0, encoded_out_r};
            0: gts_i_tx_parallel_data <= 80'b0;
      endcase
    end
end

endmodule

This RTL passes timing standalone, but when signal tap is used, it does produce warnings.

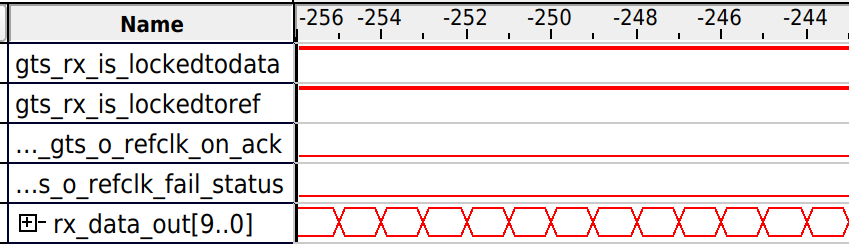

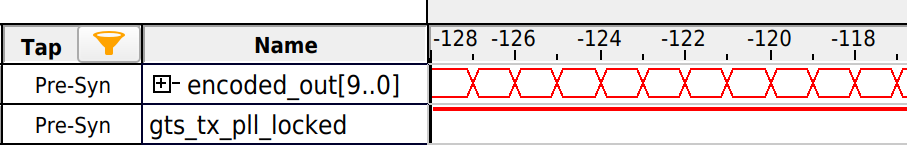

In SignalTap I take the following measurments:

Instance TX:

• data: gts_i_tx_parallel_data[79:0]
• clock domain: gts_tx_clkout

Instance RX:

• data: gts_i_rx_parallel_data[79:0]
• clock domain: gts_rx_clkout

The issue I am seeing is intermitted failures upon bitstream-re-configure:

On the TX side, after the encoder has encoded, the TX data reads as folowed:

• (EXPECTED): ... 283, 17C, 283, 17C, 183, 335, 0B1, 347, 283, 17C, 283, 17C, ...

This is the expected pattern on the RX side (post-framing)

However, in my experiments so far, I have found that it only sometimes works:

Here are the framing results after 5 different re-flashes:

1. (FAILURE): ... 283, 17C, 283, 17C, 383, 135, 0B1, 347, 083, 37C, 283, 17C, ...
2. (FAILURE): ... 283, 17C, 283, 17C, 383, 135, 0B1, 347, 083, 37C, 283, 17C, ...
3. (FAILURE): ... 283, 17C, 283, 17D, 183, 335, 0B1, 346, 283, 17C, 283, 17C, ...
4. (SUCCESS): ... 283, 17C, 283, 17C, 183, 335, 0B1, 347, 283, 17C, 283, 17C, ...
5. (FAILURE): ... 283, 17C, 283, 175, 1B1, 307, 083, 37C, 283, 17C, 283, 17C, ...

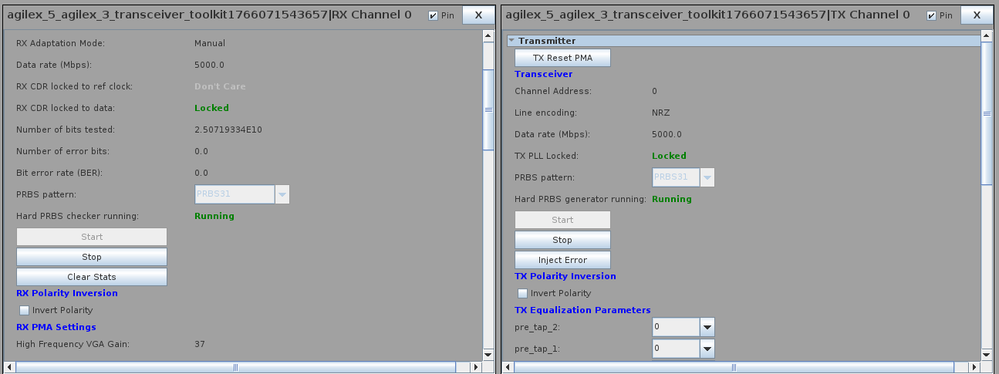

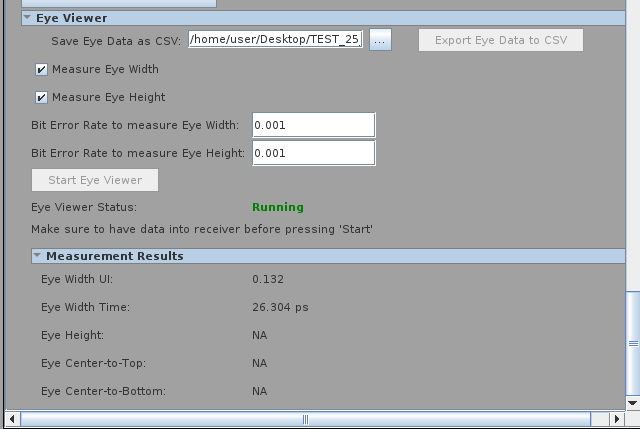

If anyone has any idea of what else to try, it would be much appreciated!
