Simulating ASMI Parallel II

Question

Hello,

To be able to test our FPGA-Design in total, I’d like to connect a flash model of the S25FL128S with the ASMI Parallel II Core. I’m using a Cyclone V, and Quartus Version 18.1 Lite.
As far as I understand it, I’m supposed to write a wrapper that connects the block dut_asmiblock from altera_asmi2_qspi_interface_asmiblock.sv with the top-level block of the flash. However, regardless how I try to connect these two, I only manage to read ‘Z’. The AN-720 states that I should connect to the asmi_sim_model, not this block, but asmi_sim_model is not existing in the simulation folder of the ASMI Parallel II block. Do you have any hint for me what I am doing wrong here?

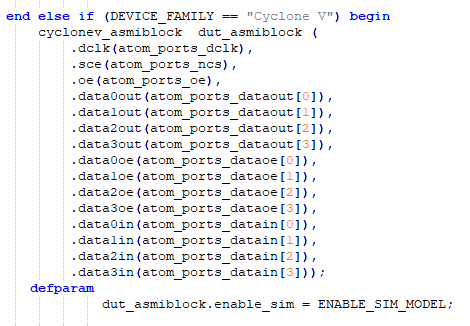

dut_asmiblock instance:
            cyclonev_asmiblock  dut_asmiblock (
                .dclk(atom_ports_dclk),
                .sce(atom_ports_ncs),
                .oe(atom_ports_oe),
                .data0out(atom_ports_dataout[0]),
                .data1out(atom_ports_dataout[1]),
                .data2out(atom_ports_dataout[2]),
                .data3out(atom_ports_dataout[3]),
                .data0oe(atom_ports_dataoe[0]),
                .data1oe(atom_ports_dataoe[1]),
                .data2oe(atom_ports_dataoe[2]),
                .data3oe(atom_ports_dataoe[3]),
                .data0in(atom_ports_datain[0]),
                .data1in(atom_ports_datain[1]),
                .data2in(atom_ports_datain[2]),
                .data3in(atom_ports_datain[3]));
           defparam
                    dut_asmiblock.enable_sim = ENABLE_SIM_MODEL;

ports of the flash block:
    PORT (
        -- Data Inputs/Outputs
        SI                : INOUT std_ulogic := 'U'; -- serial data input/IO0
        SO                : INOUT std_ulogic := 'U'; -- serial data output/IO1
        -- Controls
        SCK               : IN    std_ulogic := 'U'; -- serial clock input
        CSNeg             : IN    std_ulogic := 'U'; -- chip select input
        RSTNeg            : IN    std_ulogic := 'U'; -- hardware reset pin
        WPNeg             : INOUT std_ulogic := 'U'; -- write protect input/IO2
        HOLDNeg           : INOUT std_ulogic := 'U'  -- hold input/IO3

);

Best regards,
Nanuq

yuanli_s_intel · Answer

First of all, i think ASMI Parallel II IP is only supporting EPCQ, EPCQ-L, and EPCQ-A devices. If you are using third-party flash devices, you must use the Generic Serial Flash Interface Intel FPGA IP.

nanuq · Answer

HiThanks for your answer. On the actual board I'm using the EPCQ-A device. But I'd like to simulate my code first. The point is: the ASMI Parallel II datasheet writes the following:Uses the default EPCQ 1024 simulation model for simulation. If you are using a third-party flash device, refer to AN 720: Simulating the ASMI Block in Your Design to create a wrapper to connect the flash model with the ASMI Block.
I'd love to use the default simulation model of EPCQ 1024, but it does not seem to be included in the ASMI parallel II simulation model of Quartus 18.1 either. When I try to simulate without the third-party flash model and enable_sim set to TRUE, Modelsim is not capable of finding a valid cyclonev_asmiblock.

yuanli_s_intel · Answer

Before that, just want to check with your steps in setting up the simulation. Have you included the testbench and its setting before the compilation? You may refer to the link below for the steps.

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_gs_msa_qii.pdf

nanuq · Answer

Yes, I have included the testbench, and set the settings before compilation.
I am able to follow the signals in simulation through the files, from asmi_parallel.vhd to the submodules asmi_parallel_asmi_parallel2_top_0.vhd, asmi_parallel_asmi_parallel2_top_0_asmi2_core.vhd and altera_asmi2_qspi_interface.sv to the altera_asmi2_qspi_interface_asmiblock.sv (all of them compiled and simulated fine).

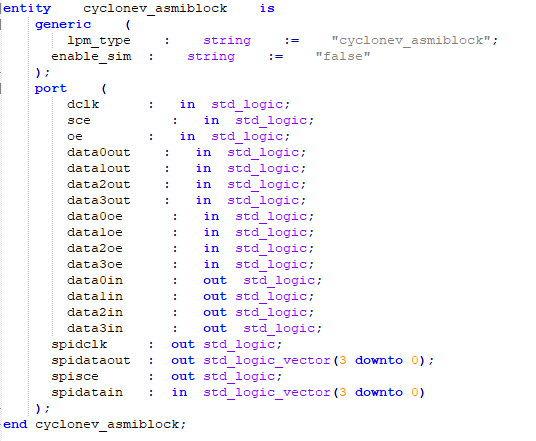

In the altera_asmi2_qspi_interface_asmiblock.sv, the cyclonev_asmiblock then cannot be found by the ModelSim. I did include the library "altera", but there, the only thing I can find (humanly readable) is the cyclonev_asmiblock_info.xml, and the ports defined there do not match the ports defined in the altera_asmi2_qspi_interface_asmiblock.sv, the SPI signals spidatain, spisce, spidclk and spidataout are missing.

yuanli_s_intel · Answer

I was trying to duplicate your issue but no luck with it. Can you share me your testbench file?
