Problem W/ Altera VIP Frame Buffer II

Hi Evan,

Thank you for reaching out.

Apologize for the delayed response as we encounter some technical difficulty.

Just to let you know that Intel has received your support request and currently we are confirming the details with our internal team.

I shall come back to you with findings.

Thank you for your patience.

Best Regards,

ZH_Intel

Hi Evan,

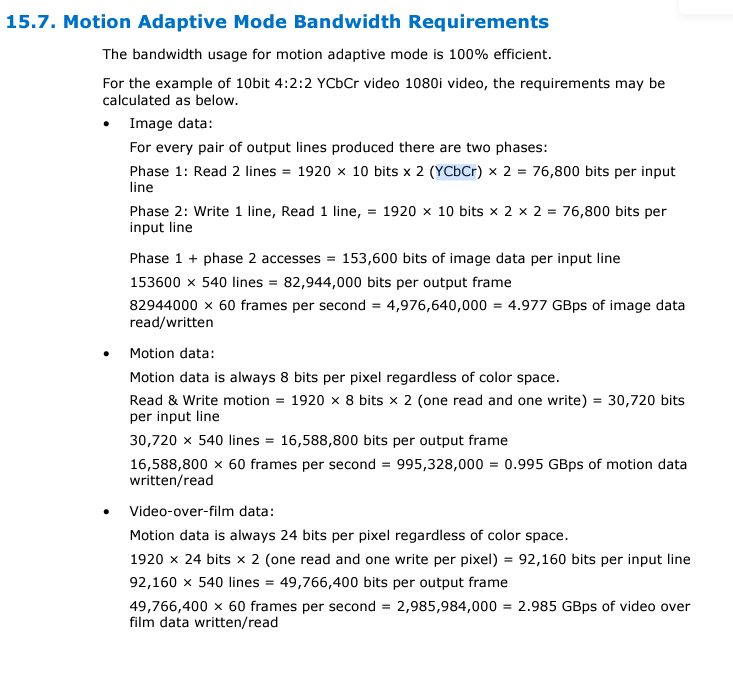

From the team feedback, referring to the VIP user guide (https://www.intel.com/content/dam/support/us/en/programmable/support-resources/bulk-container/pdfs/literature/ug/archives/ug-vip-18-1.pdf) section 15.7 Motion Adaptive Mode Bandwidth Requirements

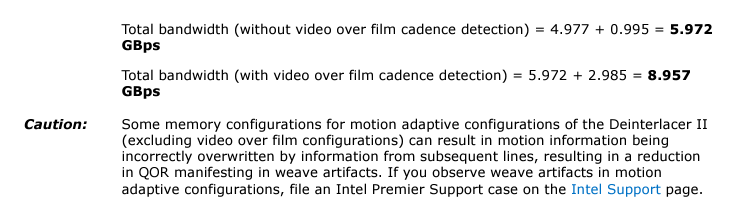

Screenshot (just in case you dont have access to the pdf link):

This is the consideration on the bandwidth requirements for video frame data based on deinterlacer, but it is the same process for the frame buffer as well.

Contrast this with the DDR configuration you have configured – width of data bus, DDR speed – use 90% of this figure to account for refresh and inefficiency through the EMIF. If your requirements exceed this 90% value, then this will be the problem. Certainly by changing from YCbCr to RGB this will consume 50% more bandwidth so it sounds highly likely this is the issue.

Thanks

Regards

Kian

Hi Evan,

Just got the confirmation from the team on the static frames. So basically the video is static is irrelevant to the frame buffer, each pixel still consumes the same amount of bandwidth. As per your reply previously, calculating for one buffer and multiplying by the number of buffers is correct, assuming that all 4 buffers are active at the same time, which is likely in this case since you have all 4 displays up displaying the same thing. Another thing suggested by the team is to try is to increase the amount of available bandwidth by increasing the DDR frequency.

Thanks

Regards

Kian

Hi All,

Just to note for internal team and customer:

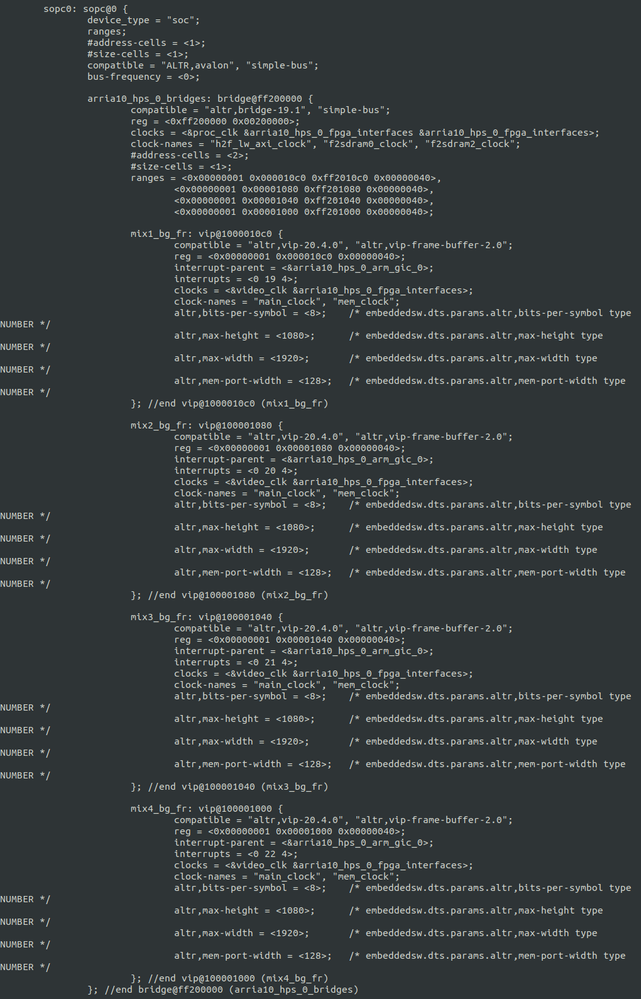

• DTS and boot are related to HPS

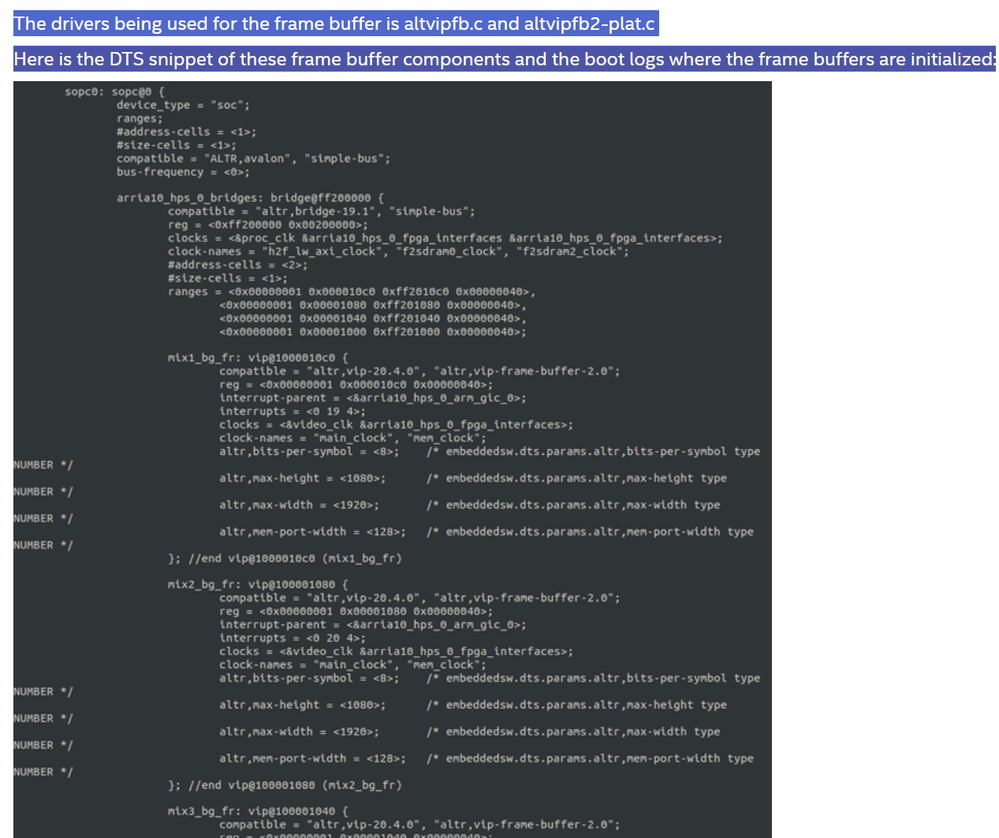

• The drivers being used for the frame buffer is altvipfb.c and altvipfb2-plat.c, this is also driver for HPS

Screenshot

Moving to the right SME for this case.

Hi Evan

Apologies for the delay, I'm Kian and got assigned to this case. Regarding this issue, I've already contacted our VIP team to get their insight into this issue, will get back to you later once we have findings on our end.

Thanks

Regards

Kian

Hi Evan,

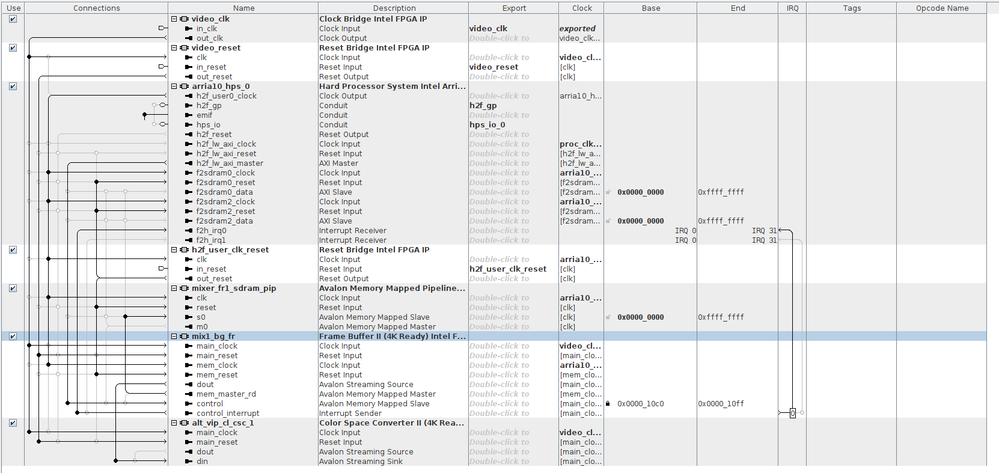

The team here is asking for more information on what are the base addresses are and the associated settings in the 4 frame buffers? In addition, did you do any maximum bandwidth calculations to check that the EMIF can service all 4 frame buffers at the same time if required?

Thanks

Regards

Kian

Hi Kian,

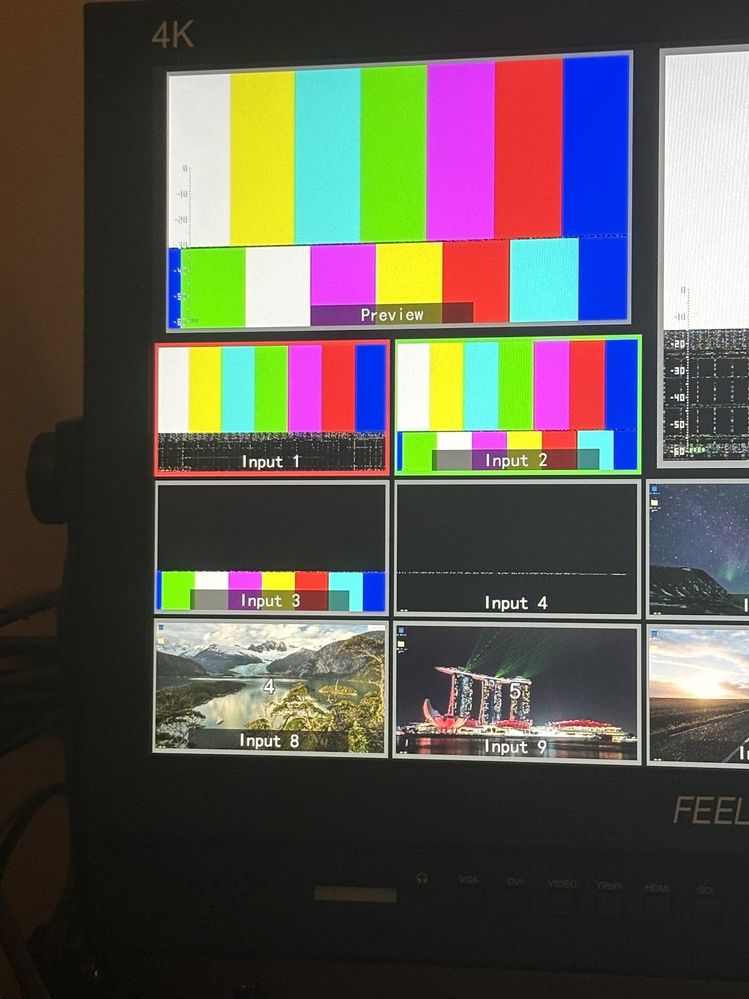

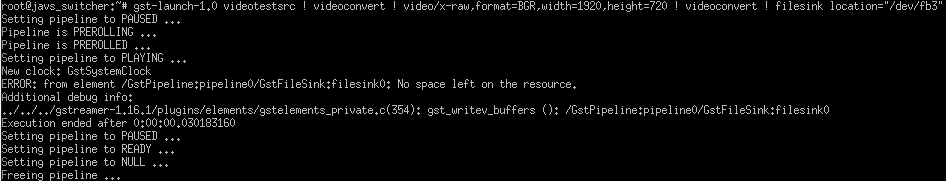

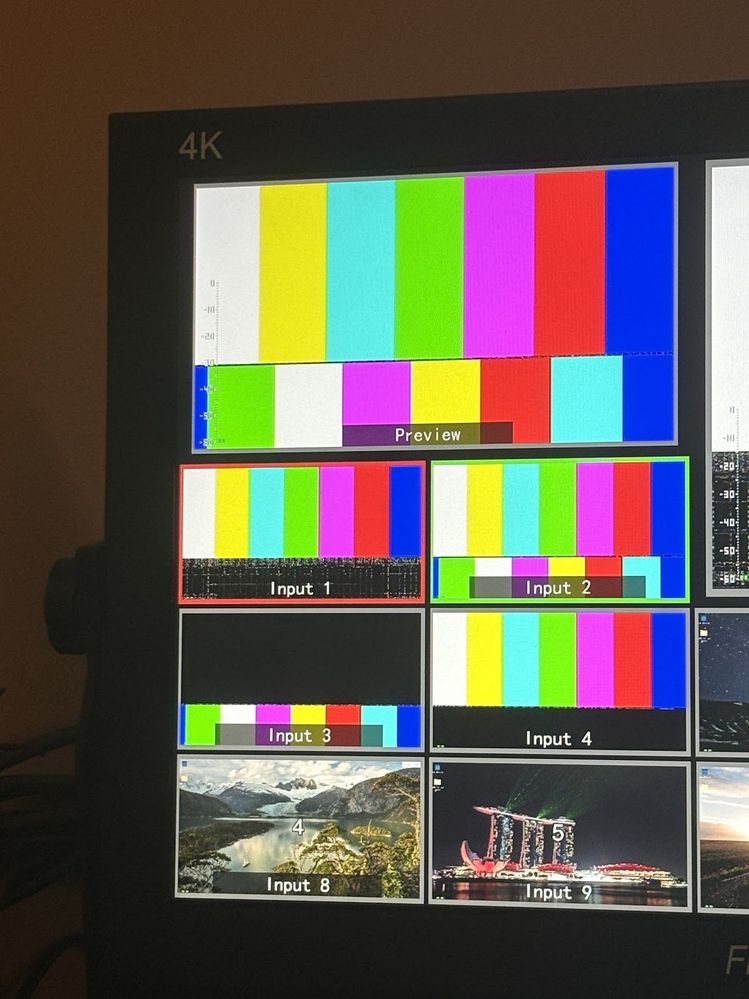

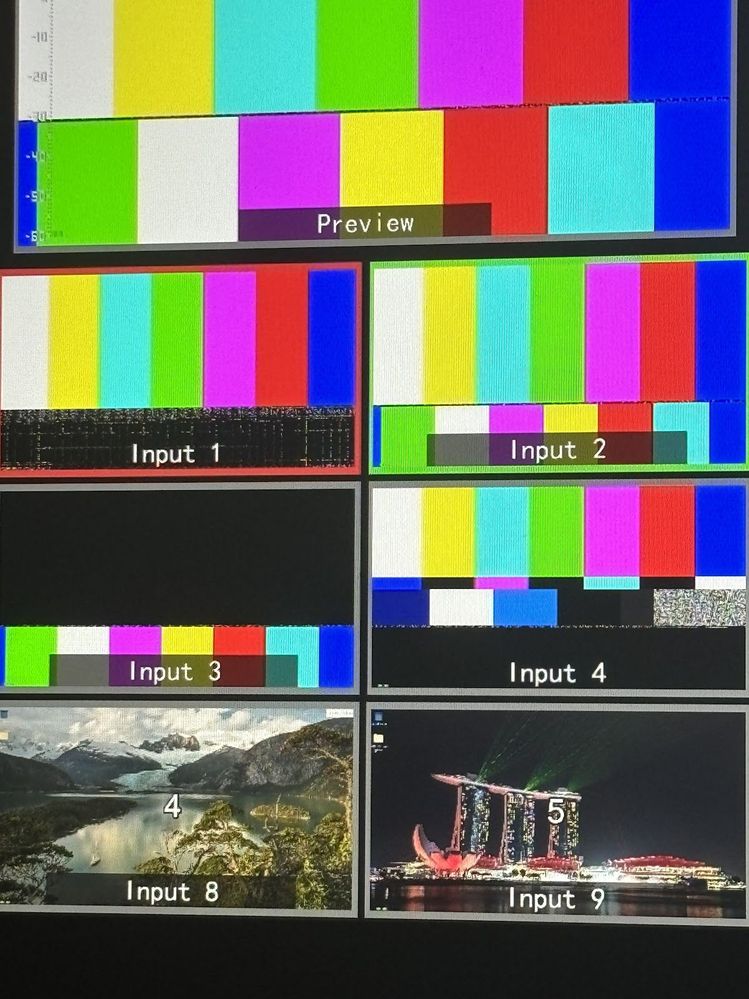

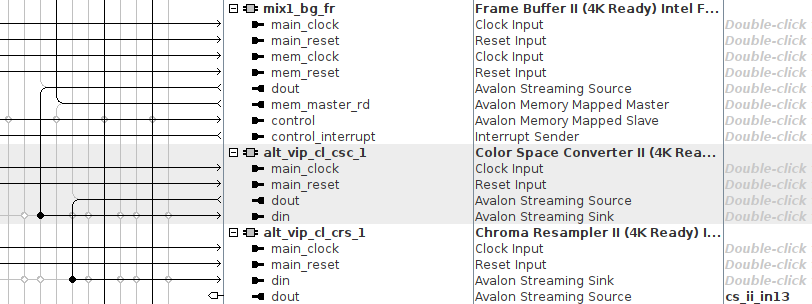

Thank you for your response, I did not see it till now. I am attempting to do these calculations, but I am a little confused on how to calculate for all 4 frame buffers. I'm assuming I would calculate for 1 of them and multiply it by 4, but while doing this I realized I forgot to mention we are sending static images as of right now. The input is a RGB gstreamer pipeline with the default smpte color bars pattern that is in a paused state so the bandwidth shouldn't be exceeded. I could understand this becoming an issue when I try to input a RGB live feed in playing state into the frame buffers, but this should not be the problem while the pipeline is in a paused state. Also, while in paused state the frame rate does not apply, so I am not sure how I would calculate for the paused frame rate.

Thanks

Evan

evanh@javs.com

Hi Kian,

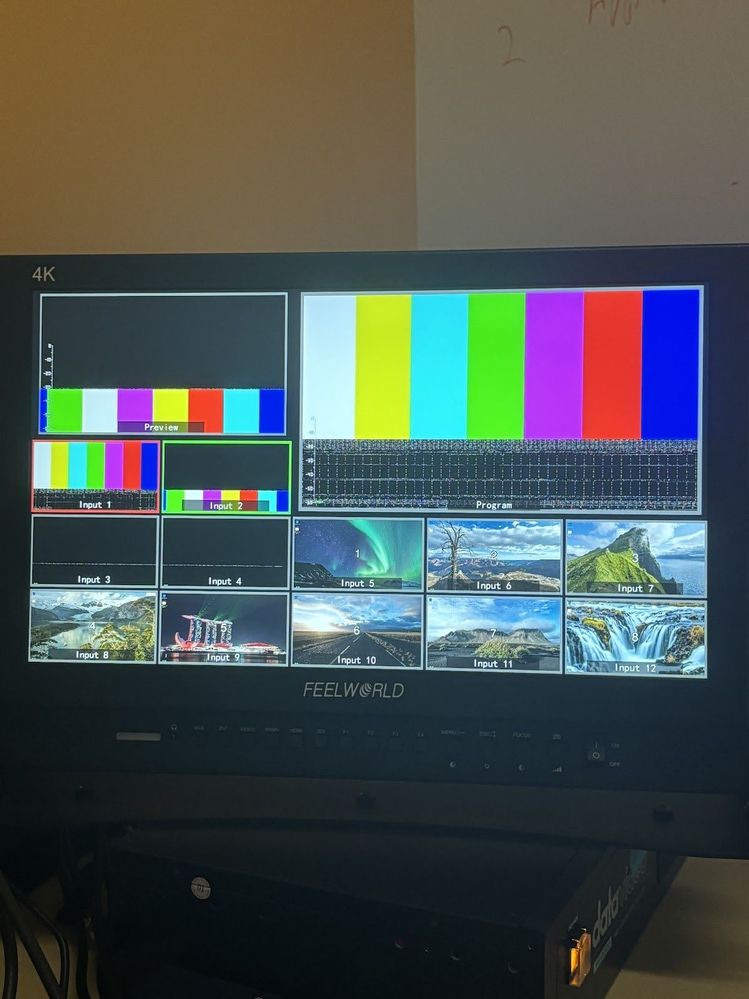

I believe you are correct. Our DDR4 is already maxed out at 1200 MHz and from my calculations I believe we are using nearly all of our bandwidth, like around 98%. Do you have any recommendations on what video format I should use? The reason we are navigating away from YCbCr is because our chroma keyer feature cannot handle small detailed graphics. There is always a residual green spill leftover from detailed graphics. The only thing we could think to do to accommodate for this was switching to RGBA, which is why I started conducting those RGB tests with the frame buffers. I will attach a image of the green spill I am talking about. Thank you again for your time and help!


Thank you,

Evan

evanh@javs.com

Hi Evan,

Sorry for the delay in getting back to you as I was out of office till next week. The team suggested that if the DDR is maxed out then you have to use YCbCr but this will suffer from the residual green spill kind of thing. You might be able to mitigate against it by using the color space convertors to go back up to RGBA prior to doing the chroma keying.

Thanks

Regards

Kian

Hi Evan,

Just checking on this issue , whether does the suggestion on using color space convertor able to mitigate the residual green spill?

Thanks

Regards

Kian
