Pin allocation for PCIe HIP gen 2 x1 with Avalon-MM Interface

I wish to use the Intel HIP for cyclone 10GX with a F780 package. I wish to use only 1 lane of PCIe 2.0 with Avalon-MM as interface. The quartus software is allowing me to place the tx pin pair only ...
Pcie
Wincent_Altera's avatar
Wincent_Altera
Icon for Regular Contributor rankRegular Contributor
6 months ago

Hi @CaptainPrice15 ,

I am already uisng this pin, and the bank 2A (which contains the pin AB11) with an IO Voltage of 1.35V while the 'perst' pin needs 1.8V.
>> Yes , the pin perst need 1.8V as compulsory

May I know which device OPN of Cyclone 10 GX that you are using ?
For particular device we would have a different pin out mapping where you can refer to
https://www.intel.com/content/www/us/en/support/programmable/support-resources/devices/lit-dp.html#tab-blade-1-3

With that you can try to find any alternative pin which is un-use and could be compatible, but please ensure the IO standard is same as perst pin.

Regards,
Wincent

CaptainPrice15's avatar
CaptainPrice15
Icon for New Contributor rankNew Contributor
6 months ago

Hello @Wincent_Altera ,

Thanks a lot for your reply. I am using the 10CX150YF780E5G. I tried placing the perst pin on other banks where 1.8V is provided, but I don't know why, the fitter would like to place the perst only on AB11 (please see screenshot.)

The assigned pin for perst (Pin E22) as seen in the screenshot is in bank 2L which I have supplied with 1.8V.

    • CaptainPrice15's avatar
      CaptainPrice15
      Icon for New Contributor rankNew Contributor
      5 months ago

      Hello @Wincent_Altera

      Thanks a lot for your reply. No, I do not need the pin for configuration purpose. I have read the document you provided in your reply and do understand that I have the option to select 1.2V, 1.5V, or 1.8V compatible I/O standard. That being said, as seen in the screenshot I attached in one of my previous replies, the Quartus software doesn't allow me to allocate the nPERST pin to any other IO. It is reluctant that I assign the pin AB11 to it; which is unfortunately not possible for me.

      • Wincent_Altera's avatar
        Wincent_Altera
        Icon for Regular Contributor rankRegular Contributor
        5 months ago

        Ho @CaptainPrice15 ,

        No, I do not need the pin for configuration purpose.
        >> Sorry I missunderstanding your question, thanks for clarified.

        Quartus software doesn't allow me to allocate the nPERST pin to any other IO. It is reluctant that I assign the pin AB11 to it; which is unfortunately not possible for me.

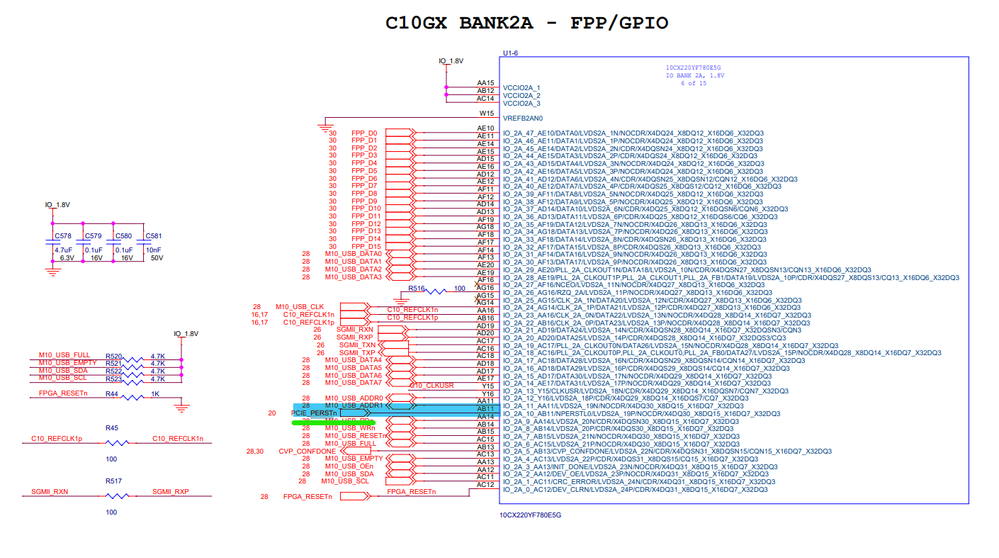

        >> If I go through the device schematic diagram https://cdrdv2-public.intel.com/649849/c10gx-dev-kits-board-a1-release.pdf
        >> AB11 was only PCIe_perst that we have for this device
        >>


        >> As it is only perst for PCIe, we are suggest to use AB11.

        Regards,

        Wincent
