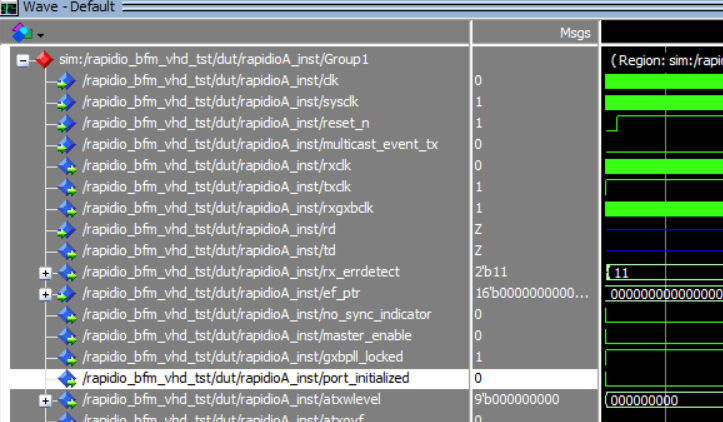

Hi, I want to simulate Rapidio passthrough avalont Streaming on cyclone V (Questasim) but I do not manage to have a link between the first rapidio (instance A) and the sister rapidio (instance B). I noticed that the port_initiliazed is always at 0. PS: I followed the same procedure as in this link: https://www.intel.com/content/www/us/en/support/programmable/support-resources/design-examples/horizontal/exm-avalon-st-interface.html Here is the waveform that I get from this simulation on cyclone V Thanks,BR,

Hi,Please refer these Cyclone V Rapid IO example design.https://community.intel.com/t5/FPGA-Wiki/RapidIO-Example-Design/ta-p/736028and also please refer the debug checklist as well.https://community.intel.com/t5/FPGA-Wiki/RapidIO-Gen1-Debug-Checklist/ta-p/736030Thank youKshitij Goel

Cyclone V with RapidIO ip core | Altera Community

5 Replies

Kshitij_Intel
Frequent Contributor
3 years ago
Hi,

Please refer these Cyclone V Rapid IO example design.

https://community.intel.com/t5/FPGA-Wiki/RapidIO-Example-Design/ta-p/736028

and also please refer the debug checklist as well.

https://community.intel.com/t5/FPGA-Wiki/RapidIO-Gen1-Debug-Checklist/ta-p/736030

Thank you
Kshitij Goel
Kshitij_Intel
Frequent Contributor
3 years ago
Hi,

Can you please generate the simulation model for the RapidIO II IP Core and run the testbench.

https://www.intel.com/content/www/us/en/docs/programmable/683444/20-3/rapidio-ii-ip-core-testbench-files.html

Also, you can refer to the reference design as well.

https://www.intel.com/content/www/us/en/docs/programmable/683197/current/downloading-and-installing-the-reference.html

Hope this will resolve your issue.

Thank you
Kshitij Goel
- osi-hw
  New Contributor
  3 years ago
  Hi Thank you for your reply.
  The link you sent me is amreafy on my first comment.
  When I run the simulation for the stratix 10 which is the device ised on the reference design. everything works fine.
  But when I reproduce this design for the cyclone V it does not work because it is not the same family and not the same ip core.
  so no it does not solve the issue.
  Best Regards.
Kshitij_Intel
Frequent Contributor
3 years ago
Hi,

Can you please share the .qar(i.e. quartus archived project).

Thank you
Kshitij Goel
Kshitij_Intel
Frequent Contributor
3 years ago
Hi,

As we do not receive any response from you on the previous answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
Thank you
Kshitij Goel
