connection_between_msgdma_and_OCM

Hi Team,

i am upgrading the design from 13.1 to 22.1. in my design i have ethernet ip , in 13.1 ethernet is handled SGDMA with OCM. In 22.1 SGDMA ip is available, but while generating bsp , it is not supporting. So i am changing the sgdma ip to msgdma ip.

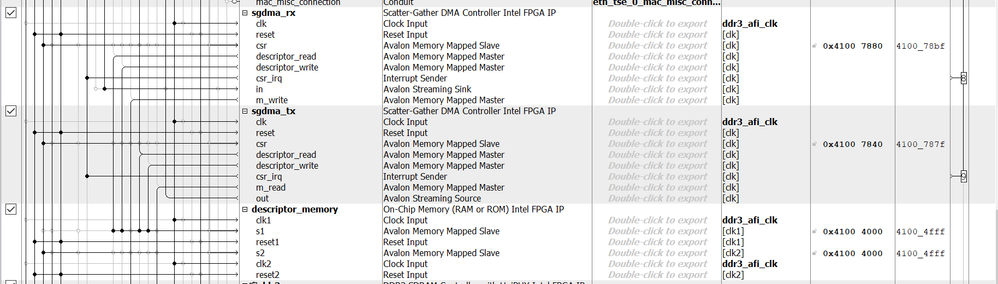

in 13.1 version, sgdma is connected with ocm like this,

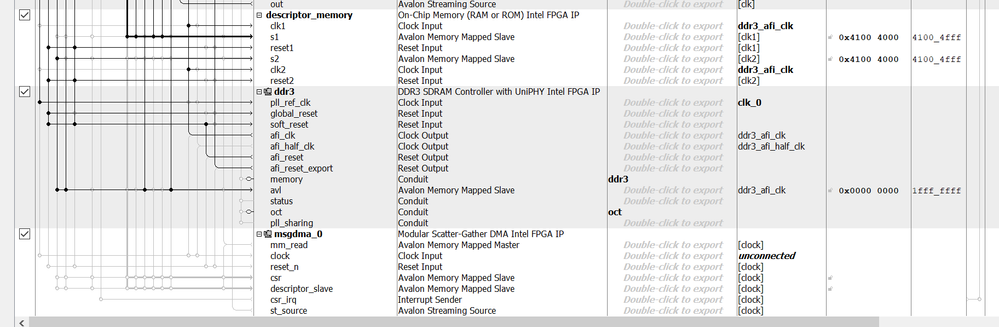

sgdma descriptor read and write(avalon master) is connected to ocm slave. But in msgdma descriptor slave is the avalon slave. How i can connect the msgdma descriptor slave to OCM . I got confused in this connection.

Please guide me to resolve this issue.

Ethernet

8 Replies

  • EBERLAZARE_I_Intel's avatar
    EBERLAZARE_I_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    Is this design from the "Simple Socket Server"? Or is the design your own?


    Is it using the Nios II processor or the HPS?


    • SERMASWATHIKA's avatar
      SERMASWATHIKA
      Icon for Contributor rankContributor
      2 years ago

      Hi,

      our own design..it has nios II processor .

      Please give solution for this asap, because project work depends on this

    • SERMASWATHIKA's avatar
      SERMASWATHIKA
      Icon for Contributor rankContributor
      2 years ago

      PLease give response for this..how to connect the msgdma descriptor to OCM since both avalon is slave..please give solution for this

    • SERMASWATHIKA's avatar
      SERMASWATHIKA
      Icon for Contributor rankContributor
      2 years ago

      Hi,

      Thanks for your response i will check that.

      i want to confirm that sgdma support is there or not.

      why bsp is generating mSGDMA library files in firmware even FPGA qsys design contains sgdma ip (sopcinfo).

      We faced this issue. after that only we moved to msgdma ip use.

      Whether we are moving in right direction. Please confirm this.

    • SERMASWATHIKA's avatar
      SERMASWATHIKA
      Icon for Contributor rankContributor
      2 years ago

      Hi ,

      Thanks for sharing the reference design.

      Can you share the reference design which has ethernet interface using msgdma and ocm ? we are trying to implement the TSE with msgdma

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi


    Sorry for the late response.

    SGDMA is still supported. The example design shared is using mSGDMA instead of SGDMA.

    That is why u are seeing mSGDMA BSP files generated.


    Currently there is no example design for connection between the TSE and mSGDMA.

    There is only design for the TSE only in link below:

    https://www.intel.com/content/www/us/en/design-example/776159/intel-arria-10-fpga-simple-socket-server-for-the-nios-v-m-processor-design-example.html


    Regards

    Jingyang, Teh
