ATX PLL in the DisplayPort IP generated design example

Hi,

I have gone through the UG :Intel® Arria® 10 DisplayPort IP Core Design Example User Guide
UG-20075, and example design

https://fpgacloud.intel.com/devstore/platform/17.0.0/Standard/arria-10-displayport-4kp60-with-video-and-image-processing-pipeline-re-transmit-reference-design/

In this it uses FPLL and stores calibrated link rates for different speeds. and while changing from one speed to other calibration is not required.

My query is

1)can use ATX PLL instead of FPLL ?

2)Does ATX Pll supports storing link rate feature ? without using Multiple Reconfiguration Profiles!

Regards,

Rajesh

2 Replies

  • Rk_Athram's avatar
    Rk_Athram
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    In display port design for FPLL is used, which having registers to store the frequency band, the similar registers are not available for ATX PLL.

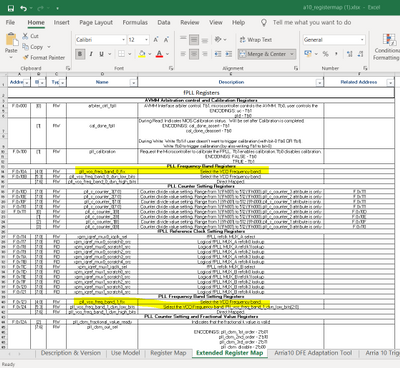

    SNAPSHOT FROM A10 register map excel sheet.

    I need to figure out whether i can use the existing logic from display port for switching speed when i use ATX PLL without re calibrating after changing speed?

  • Rk_Athram's avatar
    Rk_Athram
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    Hi,

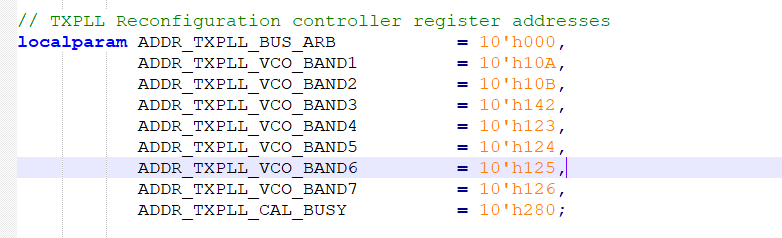

    These registers are available in FPLL section, and these are used for storing link rate and load back the link rate,

    can these registers will work for ATX PLL too ?
