Hi support,
I am trying porting an old desine on C3 to C10.
Then I met a problem on the IP conversion.
The accumulator is not supported on C10.
I attached the IP file for your reference.
And I am wondering if I can the following code to replace it,
module acc_19i_25o (
clken,
clock,
data,
sload,
result);
input clken;
input clock;
input [18:0] data;
input sload;
output [25:0] result;
wire [25:0] sub_wire0;
wire [25:0] result = sub_wire0[25:0];
reg [25:0] acc_data;
always@(posedge clock)
begin
if(clken) begin
if(sload)
acc_data <= acc_data + data;
end
end
assign sub_wire0 = acc_data ;
Thank you!
BRs,
Johnson
Hi @JLee25 ,

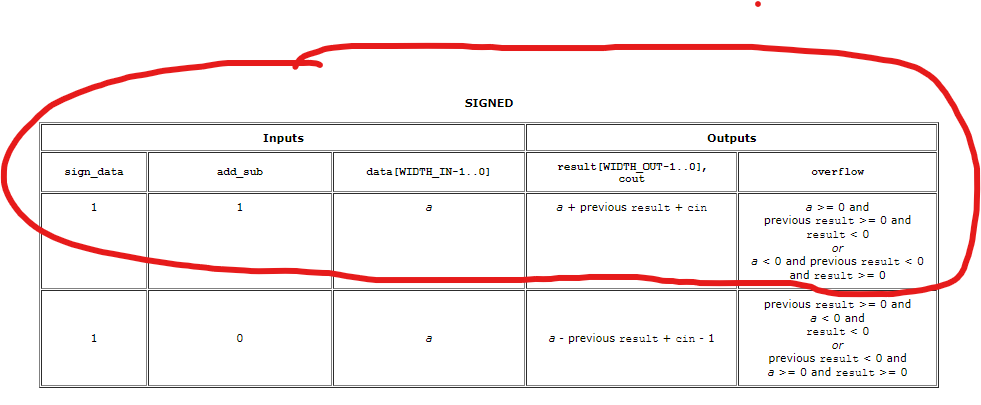

I found out there's bug on overflow triggering for signed custom code posted before. I had fixed the problem. I found this link http://www.pldworld.com/_altera/html/_sw/q2help/source/mega/mega_file_altaccumulate.htm and had followed the altaccumulate megafunction truth table which shown in red circle of image below.
Here is the updated code (highlighted bold are changes):
module acc_19i_25o2 (
clken,
clock,
data,
sload,
cin,
result,
overflow
//result_prev_out,
//data_prev_out
);
input clken;
input clock;
input signed [30:0] data;
input sload;
input cin;
output signed [30:0] result;
output overflow;
//output signed [30:0] result_prev_out;
//output signed [30:0] data_prev_out;
wire signed [30:0] sub_wire0;
wire signed [30:0] result = sub_wire0[30:0];
reg signed [30:0] acc_data;
reg signed [30:0] acc_data_reg;
reg signed [30:0] result_prev;
reg signed [30:0] data_prev;
reg overflow_reg;
always @(posedge clock) begin
if (clken) begin
if (result_prev != acc_data) begin // check if result has changed
result_prev <= acc_data; //previous result
end
if (data_prev != data ) begin // check if data has changed
data_prev <= data; //previous data
end
end
if (sload && clken) begin
acc_data <= data;
acc_data_reg <= acc_data;
if ((data_prev<0&result_prev<0&acc_data>=0) | (data_prev>=0&result_prev>=0&acc_data<0)) begin
overflow_reg <= 1'b1;
end else begin
overflow_reg <= 1'b0;
end
end else if (clken) begin
acc_data <= acc_data + data + cin;
acc_data_reg <= acc_data;
if ((data_prev<0&result_prev<0&acc_data>=0) | (data_prev>=0&result_prev>=0&acc_data<0)) begin
overflow_reg <= 1'b1;
end else begin
overflow_reg <= 1'b0;
end
end else begin
acc_data <= acc_data;
acc_data_reg <= acc_data_reg;
overflow_reg <= overflow_reg;
end
end
assign sub_wire0 = acc_data_reg;
assign overflow = overflow_reg;
//assign result_prev_out = result_prev;
//assign data_prev_out = data_prev;
endmodule
Note:
a: data, data_prev
previous result: result_prev
result: acc_data

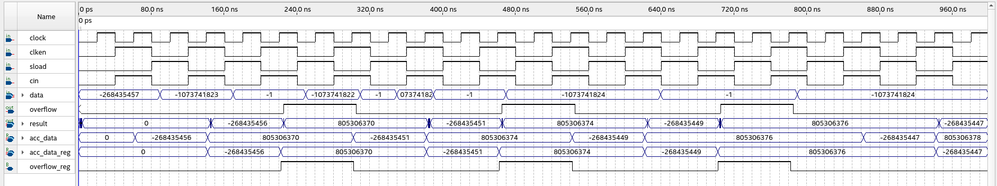

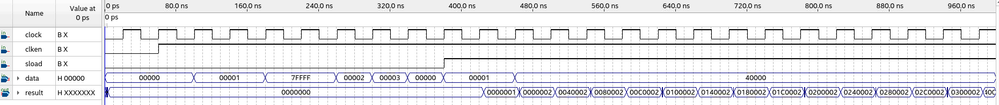

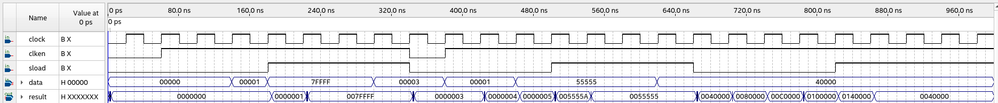

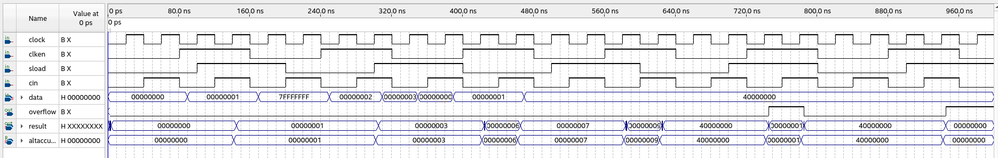

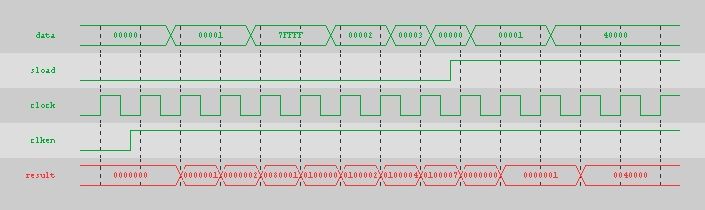

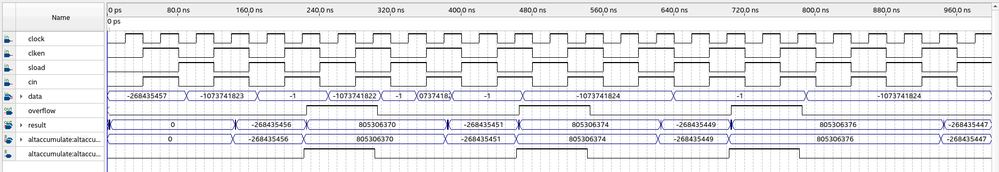

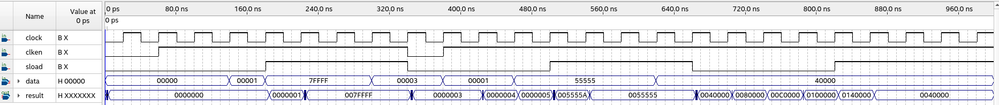

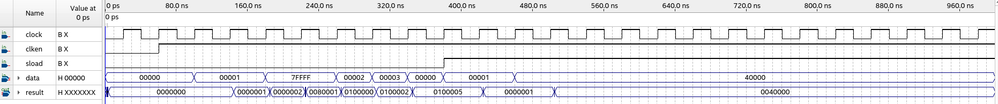

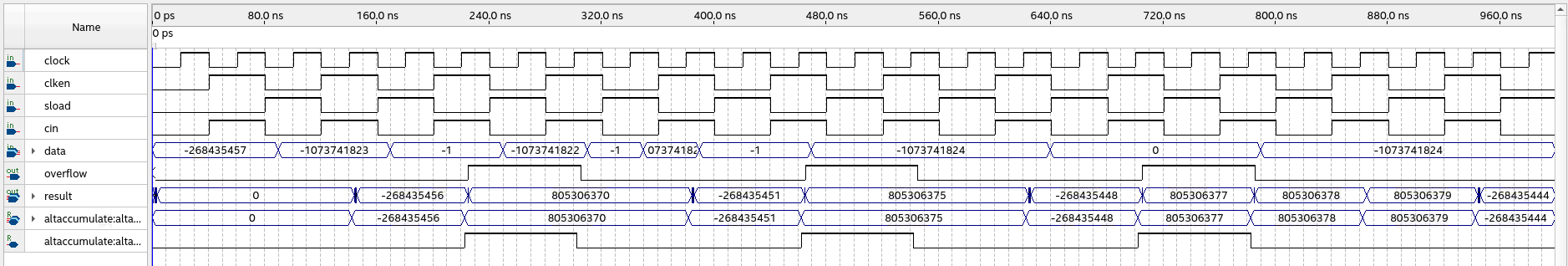

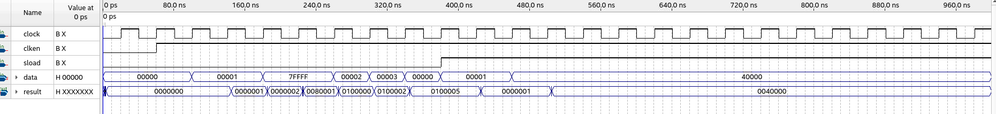

I had tested the custom code and altaccumulate megafunction (SIGNED, 1 cycle latency, Width 31) for 3 simulations. Simulation results and folder are attached below. The results are all exactly the same. The altaccumulate megafunction that I used don't have add_sub port. You may further verify from your end and let me know if there's any further concern.
Thanks,
Best Regards,
Sheng
