Forum Discussion

LCard2's avatar
LCard2
Icon for New Contributor rankNew Contributor
7 years ago

.qip and .sip generated files manually added to project . On compile entities in .qip not found. Before I start cutting and pasting modules into existing.v files, what's proper way to incorporate these PLLs? Details of transcript warnings below.

Warning (20013): Ignored 16 assignments for entity "IPpll" -- entity does not exist in design

Warning (20014): Assignment for entity set_global_assignment -name IP_TOOL_NAME altera_pll -entity IPpll -sip IPpll.sip -library lib_IPpll was ignored

Warning (20014): Assignment for entity set_global_assignment -name IP_TOOL_VERSION 18.1 -entity IPpll -sip IPpll.sip -library lib_IPpll was ignored

Warning (20014): Assignment for entity set_global_assignment -name IP_TOOL_ENV mwpim -entity IPpll -sip IPpll.sip -library lib_IPpll was ignored

Warning (20013): Ignored 317 assignments for entity "IPpll_0002" -- entity does not exist in design

Warning (20013): Ignored 16 assignments for entity "unnamed" -- entity does not exist in design

Warning (20013): Ignored 14 assignments for entity "unnamed_altclkctrl_0" -- entity does not exist in design

12 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    7 years ago

    "Entity does not exist in design" indicates that you added the IP files to the project but didn't instantiate the PLL in your actual design. Did you instantiate the PLL in your RTL code?

  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago

    Have built msim_setup.tcl with command lines in sopc_builder with ip-make-simscrpt. Can't find procedures to get these files to incorporate appropriate PLLs in "work" directory with HDL ... getting "failed to run ip-make-simscript" invoking modelsim from quartus...

  • Vicky1's avatar
    Vicky1
    Icon for Regular Contributor rankRegular Contributor
    7 years ago
    Hi Len, Have you tried the solution provided in previous post? which quartus edition & version are you using? As suggested in previous post, try to instantiate the IPpll(entity/module) from IPpll.v or IPpll.vhd file in top level design file & then compile. Please let me know if you have any concern. Regards, Vikas
  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago
    Hi Vikas, Working on previous solution, not running yet. From IP Platform, I have generated one input ref clock and 5 PLL output clocks. I can compile with the generated “IPpll.v” instantiated in my top level ----.v file, ; there are 2 more generated ,” ipPLL_002.v” and “ipPLL_inst.v”. If I instatiate a line in top level entity “ipPLL ipPLL_inst”, it will compile. Still cannot invoke ModelSim from Quartus : “Internal error: Failed to run ip-make-simscript: <some unrecognized swirches>….” I have command-line run the ip-make-simscript and included the msim_setup.tcl file in project. Len
  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago

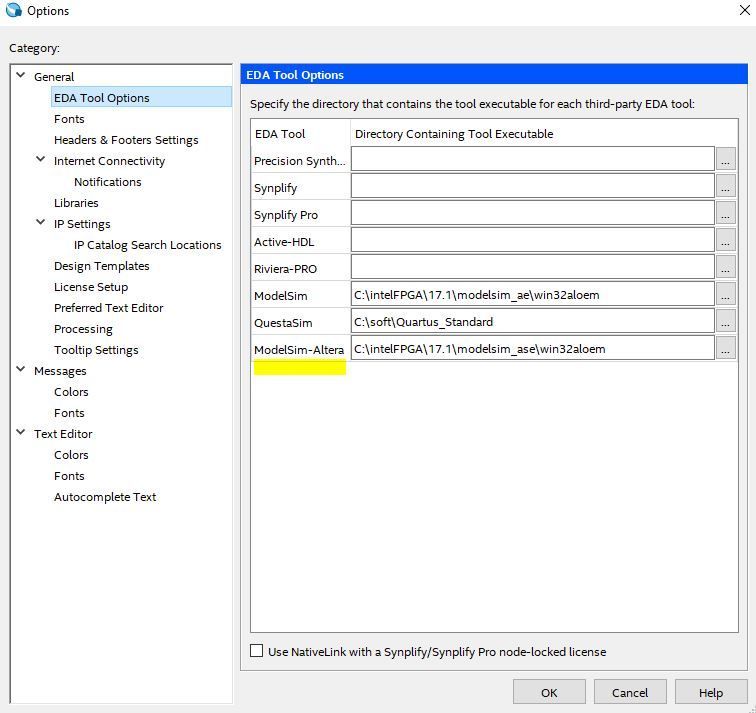

    Hi Vikas, Yes, path set in EDA Tool Options, it has connected before, just not with iP files in project. Some detailed clear instructions on getting iP into the design and simulating would be helpful. Len
  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago
    Using Quartus Prime Standard—are steps the same?
  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago
    Please point me to steps to take to get IP instantiated, compiled, and run in simulator. As you see, the Quartus Prime Standard has no “Generate Simulator Setup Script” tool. Thank you. Len Cardillo eMagin [cid:image001.png@01D4BEB5.A7D9E4E0]
