Worst-Case Completion Time for PLL Dynamic Phase Shift (PHASESTEP → PHASEDONE)

Hello, Please tell me the maximum time between the execution of Phasestep and the completion of Phasedone. The relevant link is below. Cyclone® IV Device Handbook - Chapter 5: Clock Networks and P...
Programmable Logic Device
FvM's avatar
FvM
Icon for Super Contributor rankSuper Contributor
4 months ago

Hi,

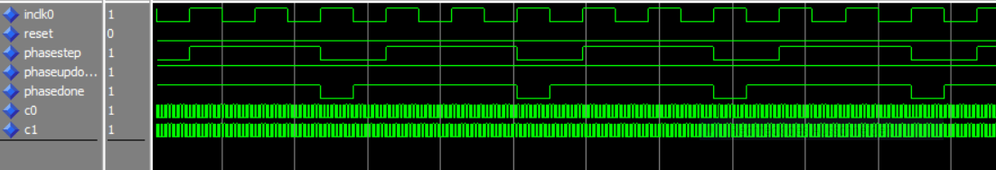

I can't answer the question officially. I see in simulation, that for the given parameters (fvco = 21*inclk0, scanclk = inclk0), a phase step can be performed every 3 scanclk cycles. I'm not waiting for phasedone = 0 but setting phasestep for two scanclk cycles.

Regards
Frank
