What's the proper DDR4 termination method in Intel FPGA?

My design contains a DDR4(discrete component) EMIF, and I terminate the address/command/clk in the same way with Arria10 development kit DDR4 daughter card(DIMM). Here're my questions:

  1. The address/command/clk should be pull-up to VTT after the last DDR4 SDRAM, what's the value of VTT? 1.2V or 0.6V? VTT in daughter card is 1.2V(VDD), but in some other example designs VTT=0.6V(VDD/2).
  2. In daughter card, a resistor connects between CK0_T and CK0_C, but no resistor used to pull up CK0_T and CK0_C to VTT, should I add pull-up resistor for CK0_T and CK0_C?

Thanks, regards.

3 Replies

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi SYiwe,

    Thank you for joining this Intel Community.

    Please refer to my answer below:

    1. The address/command/clk should be pull-up to VTT after the last DDR4 SDRAM, what's the value of VTT? 1.2V or 0.6V? VTT in daughter card is 1.2V(VDD), but in some other example designs VTT=0.6V(VDD/2).

    [Ans]: Terminate the DDR4 address, command, and control signals to VTT= 0.6V (VDD/2).

    2. In daughter card, a resistor connects between CK0_T and CK0_C, but no resistor used to pull up CK0_T and CK0_C to VTT, should I add pull-up resistor for CK0_T and CK0_C?

    [Ans]: No, no need to add resistor pull-up to VTT.

    Hope this helps.

    Thanks

    Regards,

    Aida

    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Thank you for your answer. But I still have some doubts.

      CK0_T/CK0_C is differential clock output from FPGA to drive DDR4, not the reference clock input to FPGA.

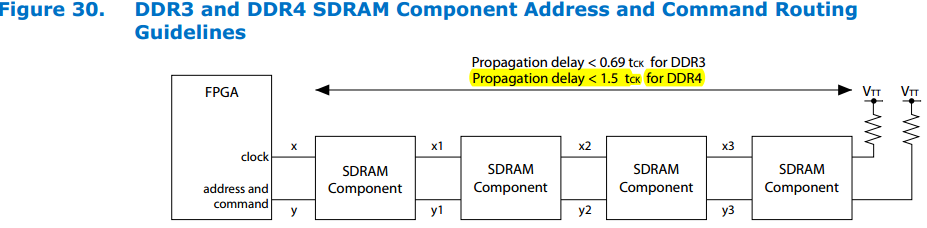

      According to the following figure in user guide, CK0_T/CK0_C should be pull-up to VTT.

      So I would like to confirm the following conclusion with you: there's no need to add pull-up resistor for CK0_T/CK0_C, is that correct?

      Thanks, regards.

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi SYiwe,

    Thank you for the diagram and sorry for the confusion. My bad, I was not referring to FPGA output clock at first.

    Yes, the CK0_T/CK0_C should be terminate pull-up to VTT. You need to follow the terminationguidline based on the I/O standard you used.

    Regards,

    Aida
