Simulating F2H ACE-LITE interface on HPS.

Hi awaissman,

I found this old design example as below as reference, hope it helps:

https://www.intel.com/content/www/us/en/support/programmable/support-resources/design-examples/quartus/exm-hps-axi-bfm.html

Thanks.

Regards,

Aik Eu

Thanks for reference.

This design provide example for h2f AXI usage, I am looking for f2h direction that uses ACE AXI interface.

If you know where to find this example, please let me know.

Albert,

Hi awaissman,

Sorry for the late reply.

For simulation there is this example for Agilex 5:

https://www.intel.com/content/www/us/en/docs/programmable/813752/24-1/fpga-to-hps-bridge-f2h.html

There is another example for datamover working with Nios and MSGDMA IP:

https://www.rocketboards.org/foswiki/Documentation/DatamoverDesignExample

Thanks.

Regards,

Aik Eu

Hello,

We installed support for Agilex 5, and i tried simulate this design.

After opening Platform Designer and trying generate tb i am getting following errors:

Error: agilex5_hps_f2h_simulation_intel_agilex_5_soc_0.intel_agilex_5_soc_0: "MPU CCU Clock Divider" (MPU_clk_ccu_div) 1 is out of range: Div2
Error: agilex5_hps_f2h_simulation_intel_agilex_5_soc_0.intel_agilex_5_soc_0: "MPU Peripheral Clock Divider" (MPU_clk_periph_div) 1 is out of range: Div4
Error: Generation failed with exit code 3: 2 Errors, 3 Warnings

I will try fix them on my own, but hope you can help me with this.

Thanks,

Hello,

I found provided directrory:

agilex5_hps_f2h_simulation_tb

When i tried compile tb in:

agilex5_hps_f2h_simulation_tb/sim/mentor

Getting following fatal error:

# --------- --------- --------- --------- --------- --------- ---------
# ** FATAL: Questa VIP version mismatch detected.
# ** There is a mismatch between the SystemVerilog (version = 20220701) and the BFM (version = 20240212).
# ** Please check your compilation and simulation commands to ensure a consistent QVIP version is in use.
# --------- --------- --------- --------- --------- --------- ---------

Not sure what wrong, first time I see SystemVerilog version problem.

Thanks,

Hi awaissman,

Are you having the Quartus® Prime Pro Edition software version 23.4 or newer version in your setup?

Thanks.

Regards,

Aik Eu

Hi awaissman,

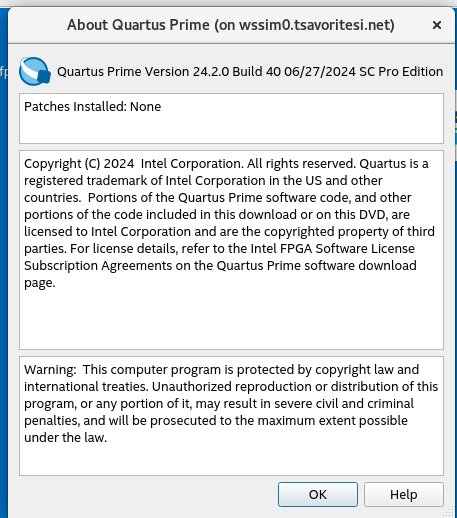

Your version used is a Pro or Standard version?

Thanks.

Regards,

Aik Eu

Hi awaissman,

Sorry that I am not able to find the similar error which you have encountered.

At the moment there is limited support on the Simics simulation for Agilex 5 after the Agilex 5 hardware release. Thus unable to obtain much further information regarding the simulation error.

Thanks.

Regards,

Aik Eu

Hi awaissman,

I will close the thread if there is no further question.

Thanks.

Regards,

Aik Eu
