plz help......Seqence recognizer error

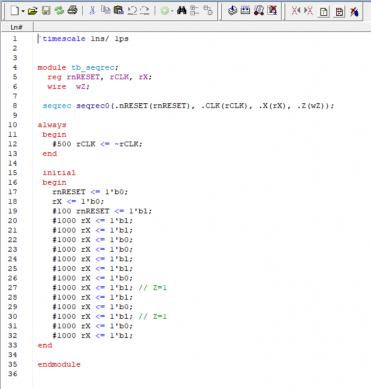

`timescale 1ns/ 1ps

module tb_seqrec;

reg rnRESET, rCLK, rX;

wire wZ;

seqrec seqrec0(.nRESET(rnRESET), .CLK(rCLK), .X(rX), .Z(wZ));

always

begin

# 500 rCLK <= ~rCLK;

end

initial

begin

rnRESET <= 1'b0;

rX <= 1'b0;

19#100 rnRESET <= 1'bl;

20#1000 rX <= 1'bl;

21#1000 rX <= 1'bl;

22#1000 rX <= 1'b0;

23#1000 rX <= 1'b0;

24#1000 rX <= 1'bl;

25#1000 rX <= 1'bl;

26#1000 rX <= 1'b0;

27#1000 rX <= 1'bl; // Z=1

28#1000 rX <= 1'bl;

29#1000 rX <= 1'b0;

30#1000 rX <= 1'bl; // Z=1

31#1000 rX <= 1'b0;

32#1000 rX <= 1'bl;

end

endmodule

I made it. l thought there is no error.

but

:/Test/seqrec2/tb_seqrec.v(19): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(19): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(20): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(20): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(21): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(21): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(24): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(24): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(25): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(25): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(27): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(27): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(28): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(28): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(30): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(30): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

** Error: C:/Test/seqrec2/tb_seqrec.v(32): Expecting numeric digits.

** Error: C:/Test/seqrec2/tb_seqrec.v(32): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

what's wrong?

6 Replies

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor

    --- Quote Start ---

    `timescale 1ns/ 1ps

    module tb_seqrec;
      reg rnRESET, rCLK, rX;
      wire  wZ;

     seqrec seqrec0(.nRESET(rnRESET), .CLK(rCLK), .X(rX), .Z(wZ));
    always
     begin
      # 500 rCLK <= ~rCLK;
     end

     initial
     begin
       rnRESET <= 1'b0;
       rX <= 1'b0;
    19#100 rnRESET <= 1'bl;
    20#1000 rX <= 1'bl;
    21#1000 rX <= 1'bl;
    22#1000 rX <= 1'b0;
    23#1000 rX <= 1'b0;
    24#1000 rX <= 1'bl;
    25#1000 rX <= 1'bl;
    26#1000 rX <= 1'b0;
    27#1000 rX <= 1'bl; // Z=1
    28#1000 rX <= 1'bl;
    29#1000 rX <= 1'b0;
    30#1000 rX <= 1'bl; // Z=1
    31#1000 rX <= 1'b0;
    32#1000 rX <= 1'bl;
    end
    endmodule

    I made it. l thought there is no error.

    but

    :/Test/seqrec2/tb_seqrec.v(19): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(19): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(20): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(20): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(21): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(21): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(24): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(24): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(25): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(25): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(27): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(27): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(28): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(28): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(30): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(30): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    ** Error: C:/Test/seqrec2/tb_seqrec.v(32): Expecting numeric digits.

    ** Error: C:/Test/seqrec2/tb_seqrec.v(32): near "1": syntax error, unexpected "IDENTIFIER", expecting ';'

    what's wrong?

    --- Quote End ---

    The text flagged in red is extraneous junk that does not belong there. What are you trying to do?
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor

    Hi,

    --- Quote Start ---

    #100 rnRESET <= 1'bl; /////////////////////////# 100 rnRESET <= 1'b1; ---- use digit "1" not "l" character "L".

    --- Quote End ---

    It`s typo mistake use “1” (one digit) instead of “L” character.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Best Regards

    Vikas Jathar

    (This message was posted on behalf of Intel Corporation)
